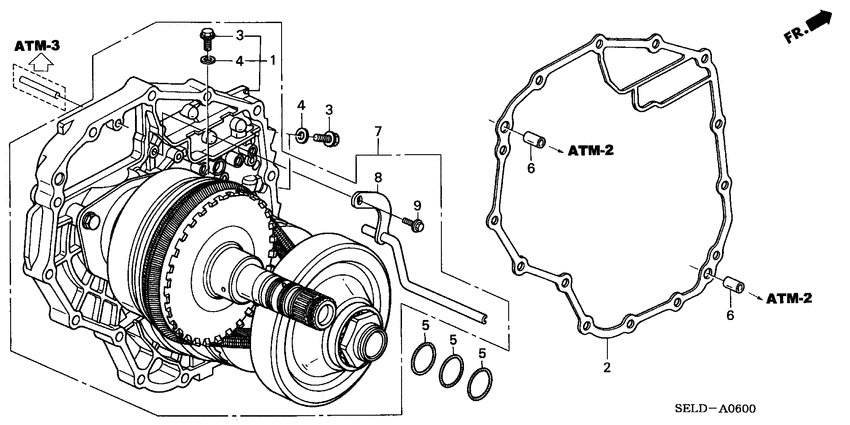

Intermediate plate Diagram Honda CITY
- Year
- 2005
- Model code
- CITY
- Sales region
- General
- Engine
- REGD53
- transmission
- CVT
- Number of doors
- 4
- grade
- S
- area code
- PH
- left-hand drive
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
21812-PWR-000 PackingINTERMEDIATE PLATE |
21812-PWR-000 |
US $17.71 |
||
|
3
|
3
90024-612-000 BoltSEALING, 8MM |
90024-612-000 |
from US $1.78 |
||
|
4
|
4
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.48 |
||
|
5
|
5
91307-PN0-003 O-ring25.5X1.9(NOK) |
91307-PN0-003 |
US $1.72 |
||
|
6
|
6
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.14 |
||
|
7
|
7
21300-PWR-G30 Plate assy.INTERMEDIATE |
21300-PWR-G30 |
US $3,454.72 |
||
|
7
|
7
21300-PWR-G20 Plate assy.INTERMEDIATE |
21300-PWR-G20 |
US $3,289.60 |
||
|
8
|
8
22730-RER-000 Pipe compLUBRICATION |
22730-RER-000 |
US $14.08 |
||
|
9
|
9
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
