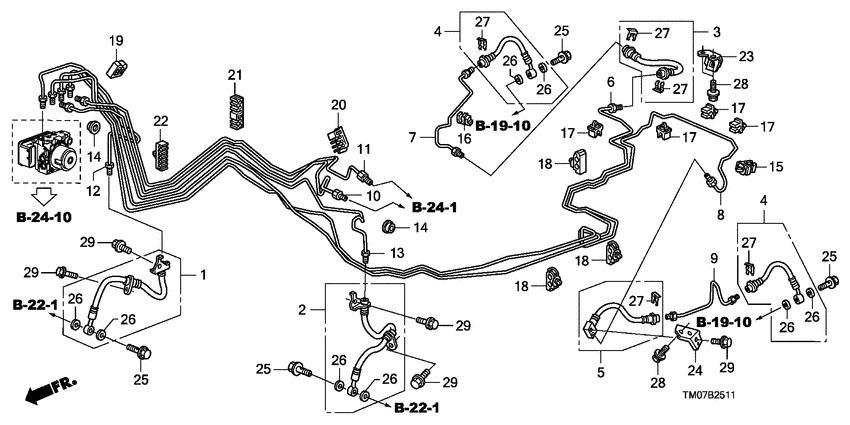

Brake lines (ABS; DISK) Diagram Honda CITY
- Year
- 2010
- Model code
- CITY
- Sales region
- General
- Engine
- L13Z
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.4 S
- area code
- KG
- electric power steering
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01464-TF0-000 Hose setR. FR. BRAKE |
01464-TF0-000 |
US $37.63 |
||
|
2
|
2
01465-TF0-000 Hose setL. FR. BRAKE |
01465-TF0-000 |
US $37.63 |
||
|
3
|
3
01466-TF0-000 Hose setRR. BRAKE |
01466-TF0-000 |
US $19.71 |
||
|
4
|
4
01466-TF0-951 Hose setRR. BRAKE |
01466-TF0-951 |
US $26.93 |
||
|
5
|
5
01468-TF0-G00 Hose setL. RR. BRAKE |
01468-TF0-G00 |
US $19.71 |
||
|
6
|
6
46330-TM0-P50
Pipe comp. c
|
46330-TM0-P50 |
— | ||
|
7
|
7
46331-TF0-950 Pipe comp. eR. BRAKE |
46331-TF0-950 |
US $13.44 |
||
|
8
|
8
46340-TM0-P51
Pipe comp. d
|
46340-TM0-P51 |
— | ||
|
9
|
9
46361-TF0-950 Pipe comp. eL. BRAKE |
46361-TF0-950 |
US $8.54 |
||
|
10
|
10
46374-TF0-G62 Pipe comp. uBRAKE |
46374-TF0-G62 |
US $26.11 |
||
|
11
|
11
46375-TF0-G63 Pipe comp. vBRAKE |
46375-TF0-G63 |
US $26.11 |
||
|
12
|
12
46376-TF0-000 Pipe comp. wBRAKE |
46376-TF0-000 |
US $13.86 |
||
|
13
|
13
46377-TF0-G00 Pipe comp. xBRAKE |
46377-TF0-G00 |
US $31.36 |
||
|
14
|
14
46380-SH3-000 Grommet aBRAKE PIPE |
46380-SH3-000 |
US $1.89 |
||
|
15
|
15
46391-S5A-J01 ClipBRAKE PIPE |
46391-S5A-J01 |
US $2.28 |
||
|
16
|
16
46391-TF0-003 ClipBRAKE PIPE |
46391-TF0-003 |
US $0.63 |
||
|
17
|
17
46391-TF0-951 ClipBRAKE PIPE |
46391-TF0-951 |
US $0.63 |
||
|
18
|
18
46392-TF0-003 ClipBRAKE PIPE |
46392-TF0-003 |
from US $0.63 |
||
|
19
|
19
46393-SMG-E01 ClipBRAKE PIPE |
46393-SMG-E01 |
US $1.61 |
||
|
20
|
20
46393-TF0-G01 ClipBRAKE PIPE |
46393-TF0-G01 |
US $1.61 |
||
|
21
|
21
46395-TF0-G01 ClipBRAKE PIPE |
46395-TF0-G01 |
US $2.24 |
||
|
22
|
22
46396-TF0-003 ClipBRAKE PIPE |
46396-TF0-003 |
US $1.61 |
||
|
23
|
23
46436-TF0-J00 BracketR. RR. BRAKE HOSE |
46436-TF0-J00 |
US $1.96 |
||
|
24
|
24
46437-TF0-G00 BracketL. RR. BRAKE HOSE |
46437-TF0-G00 |
US $4.62 |
||
|
25
|
25
46462-SE0-000 BoltOIL |
46462-SE0-000 |
from US $3.42 |
||
|
26
|
26
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $2.38 |
||
|
27
|
27
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.69 |
||
|
28
|
28
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
29
|
29
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
