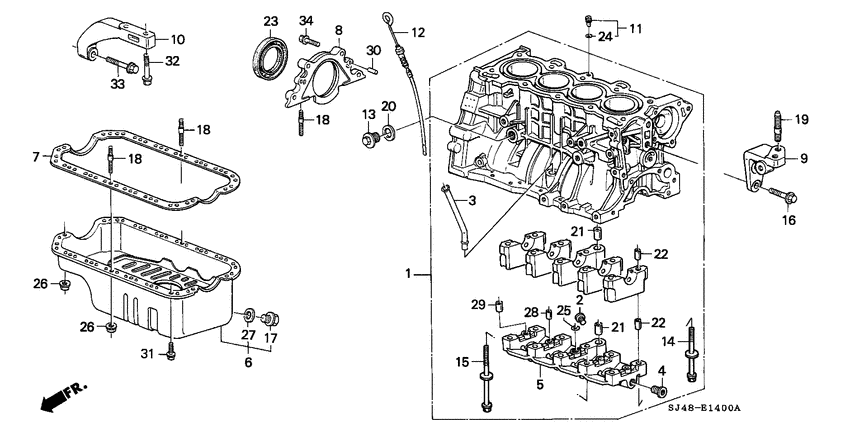

Cylinder block/oil pan (1) Diagram Honda CONCERTO
- Year
- 1990
- Model code
- CONCERTO
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 5
- grade
- DX
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-PM6-A00
Block assy
|
11000-PM6-A00 |
— | ||
|
2
|
2
11106-PE0-300 BoltSEALING, 14MM |
11106-PE0-300 |
US $2.66 |
||
|
3
|
3
11111-PM3-300 PipeOIL LEVEL |
11111-PM3-300 |
US $10.92 |
||
|
4
|
4
11126-PK1-003 BoltSEALING, 22MM |
11126-PK1-003 |
US $3.58 |
||
|
5
|
5
11130-PG7-661
Bridge comp
|
11130-PG7-661 |
— | ||
|
6
|
6
11200-PM1-010
Pan comp
|
11200-PM1-010 |
— | ||
|
7
|
7
11251-PE2-004 GasketOIL PAN (OTSUKA) 00000000 - 1300164 |
11251-PE2-004 |
US $31.49 |
||
|
7
|
7
11251-PE2-003
Gasket
00000000 - 1300164 |
11251-PE2-003 |
— | ||
| replacement | |||||
|
7
|
7
11251-P01-004 PackingOIL PAN (OTSUKA) 00000000 - 1300164 |
11251-P01-004 |
US $33.86 |
||
|
8
|
8
11301-PE0-040 CoverR. SIDE |
11301-PE0-040 |
US $33.54 |
||
|
9
|
9
11910-PM3-700
Bracket
|
11910-PM3-700 |
— | ||
|
10
|
10
11950-PM7-010
Stiffener
|
11950-PM7-010 |
— | ||
|
11
|
11
15140-PM3-000 Orifice assyOIL PATH |
15140-PM3-000 |
US $6.30 |
||
|
12
|
12
15650-PM3-004 Gauge comp.OIL LEVEL (OTSUKA) |
15650-PM3-004 |
US $11.48 |
||
|
13
|
13
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $6.84 |
||
|
14
|
14
90007-PM6-003 Bolt-washer11X116 1200001 - |
90007-PM6-003 |
US $7.28 |
||
|
15
|
15
90008-PM6-003 Bolt-washer11X131 1200001 - |
90008-PM6-003 |
US $7.28 |
||
|
16
|
16
90008-PM3-000 BoltMOUNTING BRACKET, 10X32.5 |
90008-PM3-000 |
US $3.91 |
||
|
17
|
17
90009-PH1-000 BoltDRAIN PLUG, 14MM 1000290 - |
90009-PH1-000 |
from US $3.72 |
||
|
18
|
18
90041-PA5-000 BoltSTUD, 6X28 00000000 - 1300224 |
90041-PA5-000 |
from US $2.19 |
||
|
19
|
19
90041-PM3-000
Bolt
|
90041-PM3-000 |
— | ||
|
20
|
20
90401-PM3-000
Washer
|
90401-PM3-000 |
— | ||
|
21
|
21
90703-PE0-000 Dowel pin18X22 |
90703-PE0-000 |
from US $3.29 |
||
|
22
|
22
90715-PC6-000 Dowel pin13X20 |
90715-PC6-000 |
from US $2.25 |
||
|
23
|
23
91214-PE1-721
Oil seal
|
91214-PE1-721 |
— | ||
| replacement | |||||
|
23
|
23
91214-PLE-003 Oil seal |
91214-PLE-003 |
from US $20.97 |
||
|
24
|
24
91303-KE7-003 O-ring7.2X1.7 (ARAI) |
91303-KE7-003 |
US $2.67 |
||
| replacement | |||||
|
24
|
24
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $1.42 |
||
|
25
|
25
91323-PG7-660
O-ring
|
91323-PG7-660 |
— | ||
|
26
|
26
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.50 |
||
|
27
|
27
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.43 |
||
|
28
|
28
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.14 |
||
|
29
|
29
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
30
|
30
94303-05080 Dowel pin5X8 |
94303-05080 |
from US $0.81 |
||
|
31
|
31
95700-060-180-8 BoltFLANGE, 6X18 |
95700-060-180-8 |
from US $0.52 |
||
| replacement | |||||
|
31
|
31
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.29 |
||
|
32
|
32
95701-080-450-8 BoltFLANGE, 8X45 1200001 - |
95701-080-450-8 |
from US $0.81 |
||
|
33
|
33
95701-100-450-8 BoltFLANGE, 10X45 1200001 - |
95701-100-450-8 |
from US $0.98 |
||
|
34
|
34
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
