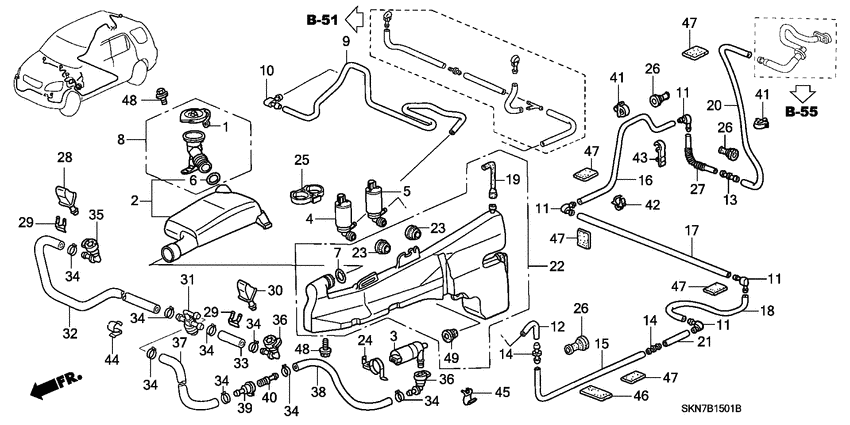

Windshield washer (2) Diagram Honda CR-V
- Year
- 2006
- Model code
- CR-V I-CTDI
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 5
- grade
- LS
- area code
- KS
- left-hand drive
- +
- vehicle stability assist
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76802-SN7-G05
Cap
|
76802-SN7-G05 |
— | ||
|
2
|
2
76804-SCA-A01
Hose assy
|
76804-SCA-A01 |
— | ||
|
3
|
3
76806-SCA-S01
Motor
|
76806-SCA-S01 |
— | ||
|
4
|
4
76806-S6D-E01 MotorFR. WASHER |
76806-S6D-E01 |
US $41.73 |
||
|
5
|
5
76806-S6D-E11 MotorRR. WASHER |
76806-S6D-E11 |
US $41.73 |
||
|
6
|
6
76809-SCA-A01
Packing
|
76809-SCA-A01 |
— | ||
|
7
|
7
76809-SCA-G01
Packing
|
76809-SCA-G01 |
— | ||
|
8
|
8
76812-SCA-A01
Mouth assy.
|
76812-SCA-A01 |
— | ||
|
9
|
9
76813-SCA-G01
Tube
|
76813-SCA-G01 |
— | ||
|
10
|
10
76828-ST3-E01 Joint lWASHER |
76828-ST3-E01 |
US $5.88 |
||
|
11
|
11
76828-S1E-E01 Joint lWASHER |
76828-S1E-E01 |
US $5.18 |
||
|
12
|
12
76828-S6F-E01
Joint l
|
76828-S6F-E01 |
— | ||
|
13
|
13
76829-SCA-A01
Joint i
|
76829-SCA-A01 |
— | ||
|
14
|
14
76829-ST3-E01
Joint
|
76829-ST3-E01 |
— | ||
|
15
|
15
76832-SCA-A01
Tube
|
76832-SCA-A01 |
— | ||
|
16
|
16
76833-SCA-A01
Tube
|
76833-SCA-A01 |
— | ||
|
17
|
17
76834-SCA-A01
Tube
|
76834-SCA-A01 |
— | ||
|
18
|
18
76835-SCA-A01
Tube
|
76835-SCA-A01 |
— | ||
|
19
|
19
76837-SCA-A01
Tube
|
76837-SCA-A01 |
— | ||
|
20
|
20
76838-SCA-A02
Tube
|
76838-SCA-A02 |
— | ||
|
21
|
21
76839-SCA-A01
Tube
|
76839-SCA-A01 |
— | ||
|
22
|
22
76840-SCA-S01
Tank set
|
76840-SCA-S01 |
— | ||
|
23
|
23
76842-S6D-E01 BushWASHER TANK |
76842-S6D-E01 |
US $2.24 |
||
|
24
|
24
76845-SCA-S11
Bracket assy
|
76845-SCA-S11 |
— | ||
|
25
|
25
76845-S6D-E01
Bracket
|
76845-S6D-E01 |
— | ||
|
26
|
26
76851-S1C-E01 GrommetWASHER TUBE |
76851-S1C-E01 |
US $4.90 |
||
|
27
|
27
76852-SCA-A01
Tube
|
76852-SCA-A01 |
— | ||
|
28
|
28
76880-SCA-S11 Nozzle assy.R. HEADLIGHT WASHER |
76880-SCA-S11 |
US $27.99 |
||
|
29
|
29
76882-S1A-E01 ClipHEADLIGHT WASHER NOZZLE |
76882-S1A-E01 |
US $2.29 |
||
|
30
|
30
76885-SCA-S11 Nozzle assy.L. HEADLIGHT WASHER |
76885-SCA-S11 |
US $27.27 |
||
|
31
|
31
76891-SCA-S01
Valve assy.
|
76891-SCA-S01 |
— | ||
|
32
|
32
76891-SKN-S01
Hose b
|
76891-SKN-S01 |
— | ||
|
33
|
33
76892-SCA-S11
Hose a
|
76892-SCA-S11 |
— | ||
|
34
|
34
76892-S6D-S01
Clip
|
76892-S6D-S01 |
— | ||
|
35
|
35
76893-SKN-S01
Connector
|
76893-SKN-S01 |
— | ||
|
36
|
36
76893-S6D-S01
Connector
|
76893-S6D-S01 |
— | ||
|
37
|
37
76894-SCA-S01
Hose c
|
76894-SCA-S01 |
— | ||
|
38
|
38
76896-SCA-S01
Hose d
|
76896-SCA-S01 |
— | ||
|
39
|
39
76897-SCA-S01
Connector
|
76897-SCA-S01 |
— | ||
|
40
|
40
76898-SCA-S01
Connector
|
76898-SCA-S01 |
— | ||
|
41
|
41
90652-SB2-023 ClipTUBE, 7MM |
90652-SB2-023 |
from US $2.07 |
||
|
42
|
42
90676-SK7-013 ClipWASHER TUBE |
90676-SK7-013 |
US $2.10 |
||
|
43
|
43
91523-SL5-003 ClipWASHER TUBE |
91523-SL5-003 |
US $2.31 |
||
|
44
|
44
91561-SCA-S01
Clip
|
91561-SCA-S01 |
— | ||
|
45
|
45
91561-S6D-S01
Clip
|
91561-S6D-S01 |
— | ||
|
46
|
46
91902-SB2-003 CushionWIRE HARNESS(50X100) |
91902-SB2-003 |
from US $2.45 |
||
|
47
|
47
91902-SJ8-003 CushionWIRE HARNESS (50X50) |
91902-SJ8-003 |
US $2.31 |
||
|
48
|
48
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
49
|
49
76842-SCA-S01
Bush
|
76842-SCA-S01 |
— |
