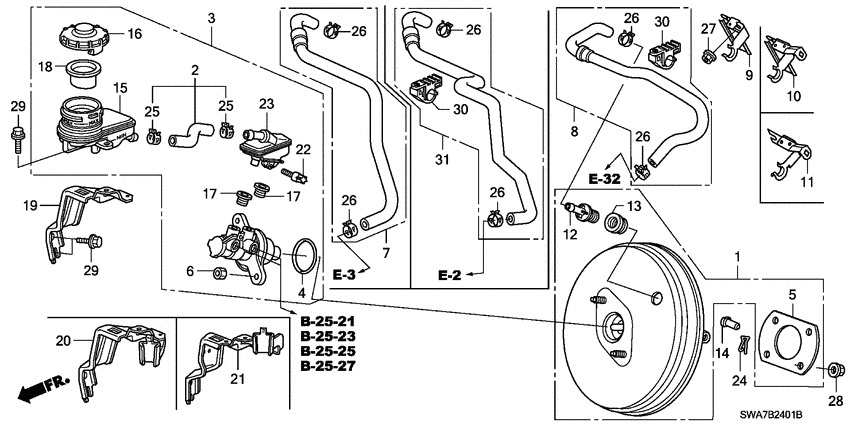

Brake master cylinder/ master power (RH; 1) Diagram Honda CR-V
- Year
- 2007
- Model code
- CR-V I-CTDI
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 2.2 SE
- abs
- +
- area code
- KE
- right-hand drive
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
01469-SWY-E00
Power set
|
01469-SWY-E00 |
— | ||
|
2
|
2
46017-SWW-G00
Hose set
|
46017-SWW-G00 |
— | ||
|
3
|
3
46101-SWW-E00
Cylinder set
|
46101-SWW-E00 |
— | ||
|
4
|
4
46185-SWW-G01
O-ring
|
46185-SWW-G01 |
— | ||
|
5
|
5
46191-SDA-A00 GasketMASTER POWER |
46191-SDA-A00 |
US $3.08 |
||
|
6
|
6
46197-SWW-G01
Nut
|
46197-SWW-G01 |
— | ||
|
8
|
8
46402-SWY-E01
Tube assy
|
46402-SWY-E01 |
— | ||
|
11
|
11
46407-SWY-E00
Stay
|
46407-SWY-E00 |
— | ||
|
12
|
12
46411-SWW-G01
Pipe
|
46411-SWW-G01 |
— | ||
|
13
|
13
46412-SWW-G01
Grommet
|
46412-SWW-G01 |
— | ||
|
14
|
14
46512-S70-000 PinPEDAL |
46512-S70-000 |
from US $2.31 |
||
|
15
|
15
46660-SWW-E01
Reservoir assy
|
46660-SWW-E01 |
— | ||
|
16
|
16
46662-SDC-A02 Cap comp.RESERVOIR |
46662-SDC-A02 |
from US $13.44 |
||
|
17
|
17
46665-SWW-G01
Grommet
|
46665-SWW-G01 |
— | ||
|
18
|
18
46666-SDC-A01 Filter |
46666-SDC-A01 |
US $6.86 |
||
|
21
|
21
46674-SWY-E00 BracketRESERVE TANK |
46674-SWY-E00 |
US $20.10 |
||
|
22
|
22
46676-SWW-G01
Screw
|
46676-SWW-G01 |
— | ||
|
23
|
23
46680-SWW-G01
Reservoir
|
46680-SWW-G01 |
— | ||
|
24
|
24
46911-S70-003 PinLOCK(8MM) |
46911-S70-003 |
from US $1.61 |
||
|
25
|
25
53729-SWW-G01
Clamp
|
53729-SWW-G01 |
— | ||
|
26
|
26
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $2.94 |
||
|
27
|
27
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
from US $1.47 |
||
|
28
|
28
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
29
|
29
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
||
|
30
|
30
46407-SWA-003 ClampMASTER POWER TUBE |
46407-SWA-003 |
US $1.61 |
