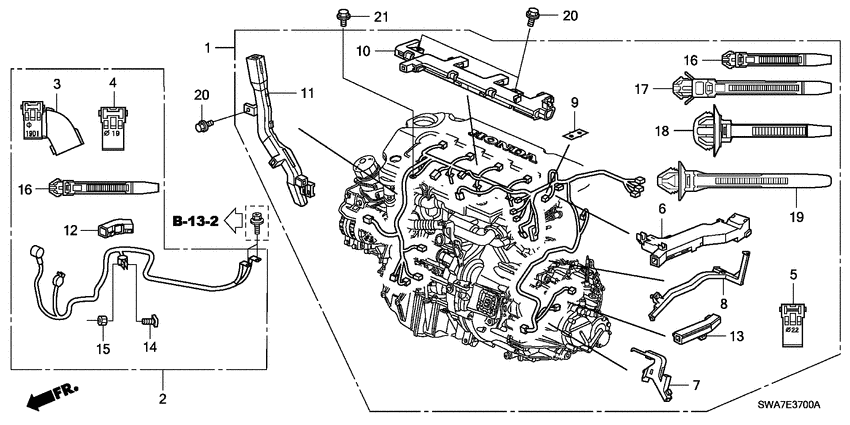

Engine wire harness (DIESEL) Diagram Honda CR-V
- Year
- 2008
- Model code
- CR-V I-CTDI
- Sales region
- General
- Engine
- N22A
- transmission
- 6MT
- Number of doors
- 5
- grade
- 2.2 ES
- abs
- +
- area code
- KE
- right-hand drive
- +
- navigation
- +
- side curtain srs
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32110-R06-E00
Harness
|
32110-R06-E00 |
— | ||
|
2
|
2
32111-R06-E00
Sub cord
|
32111-R06-E00 |
— | ||
|
3
|
3
32118-PLC-003 HolderCORRUGATED TUBE (DARK GREEN)(19MM) |
32118-PLC-003 |
US $2.52 |
||
|
4
|
4
32118-P72-003 HolderCORRUGATED(DARK GREEN) (19MM) |
32118-P72-003 |
US $3.22 |
||
|
5
|
5
32119-P2E-A01 HolderCORRUGATED (DARK BLUE) (22MM) |
32119-P2E-A01 |
US $2.31 |
||
|
6
|
6
32126-RMA-E00
Holder comp. a
|
32126-RMA-E00 |
— | ||
|
7
|
7
32127-RBD-E00 Holder comp. bENGINE HARNESS |
32127-RBD-E00 |
US $9.66 |
||
|
8
|
8
32128-RMA-E00 Holder comp. cENGINE HARNESS |
32128-RMA-E00 |
US $12.04 |
||
|
9
|
9
32129-RAA-A01
Stay
|
32129-RAA-A01 |
— | ||
|
10
|
10
32129-RMA-E00
Holder comp. d
|
32129-RMA-E00 |
— | ||
|
11
|
11
32130-RBD-E01 Holder comp. eENGINE HARNESS |
32130-RBD-E01 |
US $18.56 |
||
|
12
|
12
32131-RBD-E00 Holder fENGINE HARNESS |
32131-RBD-E00 |
US $6.16 |
||
|
13
|
13
32131-RSR-E00 Holder fENGINE HARNESS |
32131-RSR-E00 |
US $7.56 |
||
|
14
|
14
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.59 |
||
|
15
|
15
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $1.78 |
||
|
16
|
16
91506-RTA-003 Clip aHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
17
|
17
91509-RRA-003 Clip dWIRE HARNESS (BLACK) (135.4MM) |
91509-RRA-003 |
from US $2.31 |
||
|
18
|
18
91540-S7S-003 ClipHARNESS BAND(BLACK) (157.7MM) |
91540-S7S-003 |
from US $2.72 |
||
|
19
|
19
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
20
|
20
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
