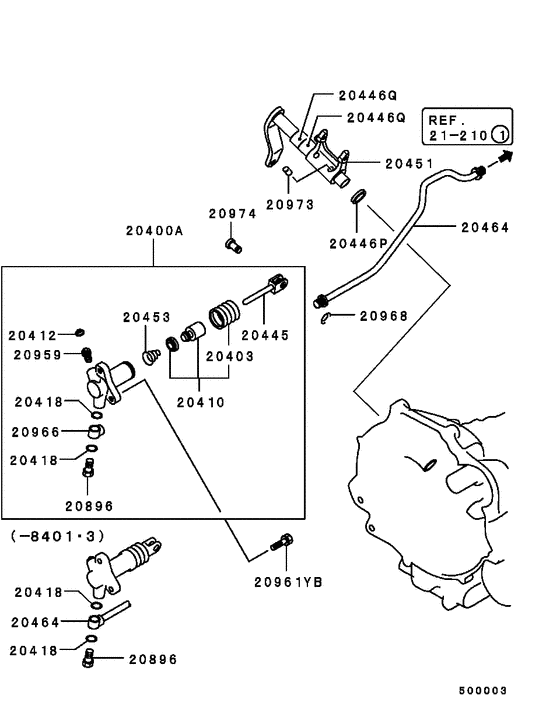

Clutch & clutch release (-8512.3 (CLUTCH RELEASE)) Diagram Mitsubishi GALANT SIGMA
- Year
- 1983 - 1984
- Sales region
- Japan
- Note
- SUPER-TOURING TURBO,5FM/T
- transmission
- 5FM/T
- grade
- SUPER-TOURING
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20400A
|
20400A
MD714227 CYLINDER ASSY, CLUTCH RELEASE |
MD714227 |
US $111.60 |
||
|
20400A
|
20400A
MD717221 CYLINDER ASSY, CLUTCH RELEASE |
MD717221 |
US $118.80 |
||
|
20403
|
20403
MD603464 BOOT, CLUTCH RELEASE CYLINDER |
MD603464 |
US $7 |
||
|
20410
|
20410
MD997786
CYLINDER KIT, CLUTCH RELEASE
|
MD997786 |
— | ||
| replacement | |||||
|
20410
|
20410
MD979428 CYLINDER KIT, CLUTCH RELEASE |
MD979428 |
from US $11.50 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.64 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.77 |
||
|
20418
|
20418
MF660063 GASKET, CYLINDER HEAD PLUGD=10 |
MF660063 |
from US $0.53 |
||
|
20445
|
20445
MD603692 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD603692 |
US $13.54 |
||
|
20446P
|
20446P
MD715179 SEAL, CLUTCH RELEASE FORK SHAFT |
MD715179 |
US $2.59 |
||
|
20446Q
|
20446Q
MD715178 SEAL, CLUTCH RELEASE FORK SHAFT |
MD715178 |
US $4.32 |
||
|
20451
|
20451
MD715159 SHAFT & FORK, CLUTCH RELEASE |
MD715159 |
US $82.80 |
||
|
20453
|
20453
MD603467 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD603467 |
US $3.17 |
||
|
20464
|
20464
MD714335 TUBE, CLUTCH RELEASE CYLINDER |
MD714335 |
US $26.64 |
||
|
20464
|
20464
MD717222 TUBE, CLUTCH RELEASE CYLINDER |
MD717222 |
US $10.08 |
||
|
20896
|
20896
MB012250 EYEBOLT, CLUTCH M/CYL10x20.5 |
MB012250 |
US $7.26 |
||
|
20896
|
20896
MD603693 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603693 |
US $5.62 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $3.30 |
||
|
20961YB
|
20961YB
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
from US $1.25 |
||
|
20966
|
20966
MD603694 UNION, M/T CLUTCH CONTROL EQUIP |
MD603694 |
US $10.37 |
||
|
20968
|
20968
MF522406 SNAP RING, ENG MECHANICAL GOVERNOR8 |
MF522406 |
from US $0.30 |
||
|
20973
|
20973
MF472629 SPRING PIN, M/T CLUTCH CONTROL EQUIP8x25 |
MF472629 |
US $2.88 |
||
|
20974
|
20974
MD713399 PIN, M/T CLUTCH CONTROL EQUIP |
MD713399 |
US $3.89 |
||
|
