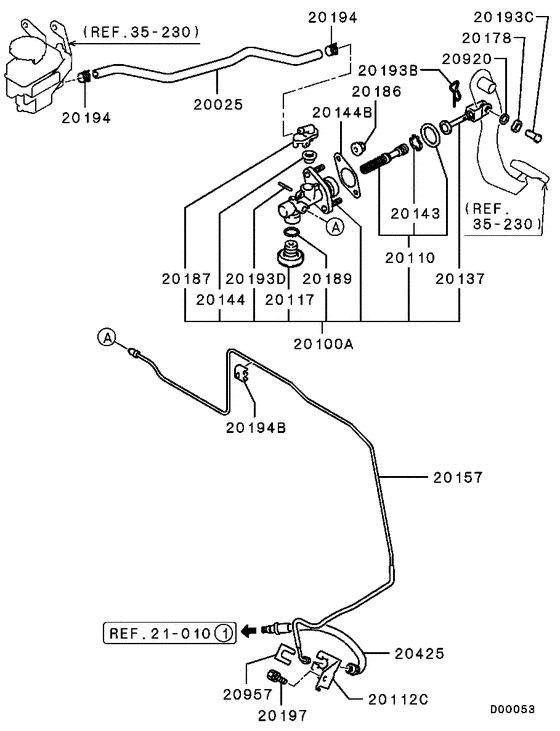

Clutch control (RHD) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (7PERSONS/DPF),6FM/T RHD
- transmission
- 6FM/T
- grade
- 7PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20025
|
20025
2348A153
HOSE,CLUTCH FLUID RESERVOIR
|
2348A153 |
— | ||
|
20100A
|
20100A
2345A005
CYLINDER ASSY,CLUTCH MASTER
|
2345A005 |
— | ||
|
20110
|
20110
2345A010
CYLINDER KIT,CLUTCH MASTER
|
2345A010 |
— | ||
|
20112C
|
20112C
MR995289
BRACKET,CLUTCH M/CYL TUBE
|
MR995289 |
— | ||
|
20117
|
20117
MR319469 DAMPER, CLUTCH M/CYL |
MR319469 |
US $13.86 |
||
|
20137
|
20137
2346A025
PUSH ROD,CLUTCH M/CYL
|
2346A025 |
— | ||
|
20143
|
20143
MA115414 RING,CLUTCH M/CYL PISTON STOPPER |
MA115414 |
US $4.75 |
||
|
20144
|
20144
MR244929 SEAL, CLUTCH M/CYL |
MR244929 |
from US $2.19 |
||
|
20144B
|
20144B
MB555016 SEAL, CLUTCH M/CYL |
MB555016 |
US $2.64 |
||
|
20157
|
20157
MR995300
TUBE,CLUTCH M/CYL
|
MR995300 |
— | ||
|
20178
|
20178
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $1.87 |
||
|
20186
|
20186
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.53 |
||
|
20186
|
20186
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.82 |
||
|
20187
|
20187
MR448318 NIPPLE, CLUTCH M/CYL |
MR448318 |
US $5.62 |
||
|
20189
|
20189
MA143404 GASKET, BRAKE M/CYL CHECK VALVE CASE16.3 |
MA143404 |
from US $2.95 |
||
|
20193B
|
20193B
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
US $1.72 |
||
|
20193B
|
20193B
MF472042 PIN, CLUTCH PEDALSplit,2x30 |
MF472042 |
US $0.92 |
||
|
20193C
|
20193C
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.70 |
||
|
20193D
|
20193D
MR244930 PIN, CLUTCH M/CYL |
MR244930 |
US $2.02 |
||
|
20194
|
20194
MS660164 CLAMP, T/M OIL COOLER LINED=13.1 |
MS660164 |
from US $1.12 |
||
|
20194B
|
20194B
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.70 |
||
|
20197
|
20197
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
from US $1.24 |
||
|
20425
|
20425
2348A041
HOSE,CLUTCH RELEASE CYLINDER
|
2348A041 |
— | ||
|
20425
|
20425
2348A152
HOSE,CLUTCH RELEASE CYLINDER
|
2348A152 |
— | ||
|
20920
|
20920
MF520006 O-RING, ENG OIL FILLER10.1 |
MF520006 |
from US $0.97 |
||
|
20957
|
20957
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.90 |
||
|
21 010
|
Clutch & clutch release
21 010
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
|
35 230
|
Power brake booster
35 230
|
||||
