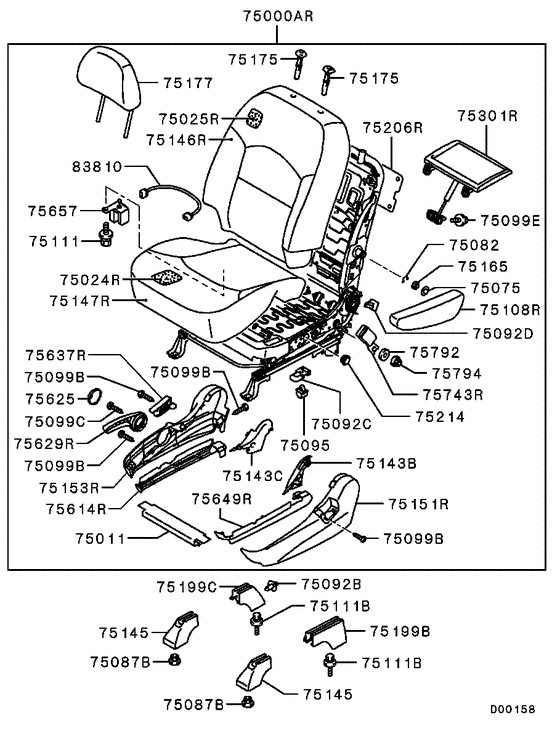

Front seat (RHD..RH,LHD..RH(W/HEIGHT)) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (7PERSONS/DPF),6FM/T RHD
- transmission
- 6FM/T
- grade
- 7PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75000AR
|
75000AR
6900A708HC
SEAT ASSY,FR RH
|
6900A708HC |
— | ||
|
75011
|
75011
6977A011 SHIELD, FR SEAT CUSHION |
6977A011 |
US $22.32 |
||
|
75011
|
75011
MN166622 SHIELD, FR SEAT CUSHION |
MN166622 |
US $33.12 |
||
|
75024R
|
75024R
6911A162 PAD, FR SEAT CUSHION, RH |
6911A162 |
US $203.04 |
||
| replacement | |||||
|
75024R
|
75024R
6911A954 PAD, FR SEAT CUSHION, LH |
6911A954 |
US $203.04 |
||
|
75025R
|
75025R
6911A164
PAD,FR SEAT BACK,RH
|
6911A164 |
— | ||
|
75075
|
75075
MN166644 WASHER, FR SEAT |
MN166644 |
US $1.73 |
||
|
75082
|
75082
6970A073 SNAP RING, FR SEAT14 |
6970A073 |
US $1.73 |
||
|
75082
|
75082
MN166643 SNAP RING, FR SEAT17 |
MN166643 |
US $2.02 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.70 |
||
|
75092B
|
75092B
MR655518 CLIP, SCUFF PLATE6.5-7.5 |
MR655518 |
US $1.73 |
||
|
75092C
|
75092C
MN148721 CLIP, FR SEAT |
MN148721 |
US $2.45 |
||
|
75092D
|
75092D
6979A001 CLIP, FR SEAT |
6979A001 |
US $2.02 |
||
|
75095
|
75095
MB399018 BAND, DOOR WIRING200 |
MB399018 |
US $2.45 |
||
|
75099B
|
75099B
MR321184 SCREW, FR SEAT4x8 |
MR321184 |
US $1.73 |
||
|
75099C
|
75099C
MF455511 SCREW, PARKING BRAKE LEVERTapping,5x12 |
MF455511 |
US $2.64 |
||
|
75099E
|
75099E
MF351032 SCREW, FUEL FILLER LID LOCKINGWasher assembled,6x16 |
MF351032 |
US $1.87 |
||
|
75108R
|
75108R
MN166656XC ARMREST, FR SEAT, RH |
MN166656XC |
US $205.92 |
||
|
75111
|
75111
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.99 |
||
|
75111B
|
75111B
MS240188 BOLT, FR BUMPERWasher assembled,10x30 |
MS240188 |
US $3.43 |
||
|
75143B
|
75143B
MN148701XA COVER, FR SEAT SIDE SHIELD, INR |
MN148701XA |
US $9.65 |
||
|
75143C
|
75143C
MN148702XA COVER, FR SEAT SIDE SHIELD, INR |
MN148702XA |
US $9.65 |
||
|
75145
|
75145
MR966082XA COVER, FR SEAT ANCHOR |
MR966082XA |
US $5.62 |
||
|
75146R
|
75146R
6901A354HC
COVER,FR SEAT BACK,RH
|
6901A354HC |
— | ||
|
75147R
|
75147R
6901A318HD
COVER,FR SEAT CUSHION,RH
|
6901A318HD |
— | ||
|
75151R
|
75151R
MN166636XA COVER, FR SEAT HINGE, RH |
MN166636XA |
US $54 |
||
|
75153R
|
75153R
6977A012XA COVER, FR SEAT SIDE SHIELD, RH |
6977A012XA |
US $57.60 |
||
|
75165
|
75165
MN166635 DAMPER, FR SEAT BACK |
MN166635 |
US $2.02 |
||
|
75175
|
75175
MN148711HA GUIDE, FR SEAT HEADRESTW/lock |
MN148711HA |
US $9.36 |
||
|
75175
|
75175
MN148712HA GUIDE, FR SEAT HEADRESTW/o lock |
MN148712HA |
US $9.36 |
||
|
75177
|
75177
MN166663XD HEADREST, FR SEAT |
MN166663XD |
US $203.04 |
||
|
75199B
|
75199B
MR306602XA COVER, FR SEAT ANCHOR, RR |
MR306602XA |
US $7.06 |
||
|
75199C
|
75199C
MR306600XA COVER, FR SEAT ANCHOR, RR |
MR306600XA |
US $5.62 |
||
|
75206R
|
75206R
MN179984 PANEL, FR SEAT BACK, LH |
MN179984 |
US $36 |
||
|
75214
|
75214
MN164258 PROTECTOR, FR SEAT FRAME |
MN164258 |
US $2.88 |
||
|
75301R
|
75301R
MN166605XA TRAY, FR SEAT BACK, LH |
MN166605XA |
US $117.36 |
||
|
75614R
|
75614R
MN166640XA COVER, FR SEAT SLIDE ADJUSTER SIDE, RH |
MN166640XA |
US $18.72 |
||
|
75625
|
75625
MN166647XA CAP, FR SEAT HEIGHT ADJUSTER LEVER |
MN166647XA |
US $6.05 |
||
|
75629R
|
75629R
MN166646XA LEVER, FR SEAT HEIGHT ADJUSTER, RH |
MN166646XA |
US $10.66 |
||
|
75637R
|
75637R
MN148704XA LEVER, FR SEAT RECLINING ADJUSTER, RH |
MN148704XA |
US $6.05 |
||
|
75649R
|
75649R
MN166641XA COVER, FR SEAT SLIDE ADJUSTER SIDE, INR RH |
MN166641XA |
US $18.72 |
||
|
75657
|
75657
MN121456 SENSOR, FR SEAT SLIDE, LH |
MN121456 |
US $88.56 |
||
|
75743R
|
75743R
MN134120XA SEAT BELT, FR SEAT, INR RH |
MN134120XA |
US $62.64 |
||
|
75792
|
75792
MN134122 WASHER, FR SEAT BELT17.5 |
MN134122 |
US $1.73 |
||
|
75794
|
75794
MN148726 NUT, FR SEAT BELT |
MN148726 |
US $2.02 |
||
|
83810
|
83810
6979A091 HARNESS, FR SEAT SLIDE SENSOR |
6979A091 |
US $44.64 |
||
