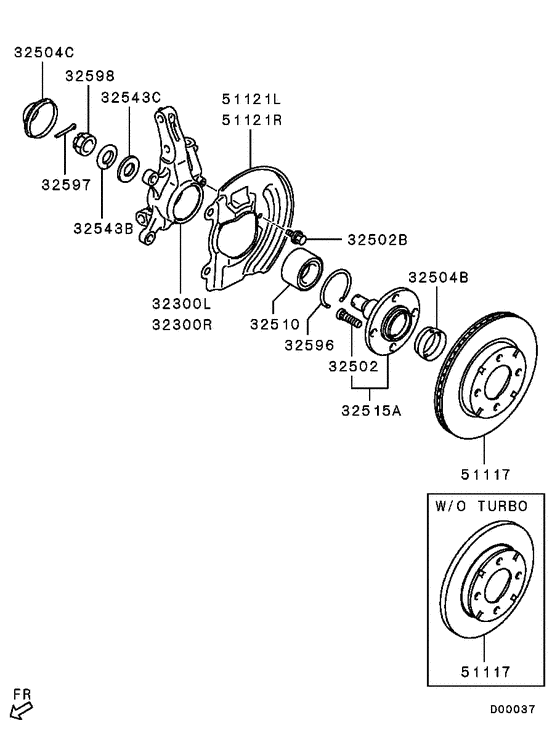

Front axle hub & drum (2WD) Diagram Mitsubishi I<AI>
- Year
- 2006
- Sales region
- Japan
- Note
- I-PLAY EDITION(2WD/MPI/TURBO),4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- I-PLAY EDITION
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32300L
|
32300L
3870A013 KNUCKLE, LH |
3870A013 |
US $194.40 |
||
| replacement | |||||
|
32300L
|
32300L
3870A063 KNUCKLE, LH |
3870A063 |
US $159.84 |
||
|
32300L
|
32300L
3870A063 KNUCKLE, LH |
3870A063 |
US $159.84 |
||
|
32300R
|
32300R
3870A014 KNUCKLE, RH |
3870A014 |
US $194.40 |
||
| replacement | |||||
|
32300R
|
32300R
3870A064 KNUCKLE, RH |
3870A064 |
US $159.84 |
||
|
32300R
|
32300R
3870A064 KNUCKLE, RH |
3870A064 |
US $159.84 |
||
|
32502
|
32502
MB911495 BOLT, FR WHEEL HUB12x43 |
MB911495 |
from US $2.19 |
||
|
32502B
|
32502B
MF140201 BOLT, ENG RR PLATEFlange,6x8 |
MF140201 |
US $2.38 |
||
|
32504B
|
32504B
3895A004 CAP, FR WHEEL HUB |
3895A004 |
US $4.46 |
||
|
32504C
|
32504C
3895A001 CAP, FR WHEEL HUB |
3895A001 |
US $4.90 |
||
|
32510
|
32510
3885A003 BEARING, FR WHEEL HUB |
3885A003 |
US $95.04 |
||
|
32515A
|
32515A
3880A022 HUB ASSY, FR WHEEL |
3880A022 |
US $94.32 |
||
|
32543B
|
32543B
MB109025 WASHER, FR AXLELock,22.4 |
MB109025 |
from US $3.88 |
||
|
32543C
|
32543C
3885A006 WASHER, FR AXLE |
3885A006 |
US $5.04 |
||
|
32596
|
32596
3885A004 SNAP RING, FR WHEEL HUB |
3885A004 |
from US $4.29 |
||
|
32597
|
32597
MF472085 PIN, ENG OIL PUMP INR |
MF472085 |
from US $0.32 |
||
|
32598
|
32598
3885A009 NUT, FR AXLE |
3885A009 |
from US $8.93 |
||
|
51117
|
51117
MN113684 DISC, FR BRAKE |
MN113684 |
US $141.84 |
||
|
51121L
|
51121L
MN113685 COVER, FR BRAKE DISC, LH |
MN113685 |
US $10.37 |
||
|
51121R
|
51121R
MN113686 COVER, FR BRAKE DISC, RH |
MN113686 |
US $10.37 |
||
