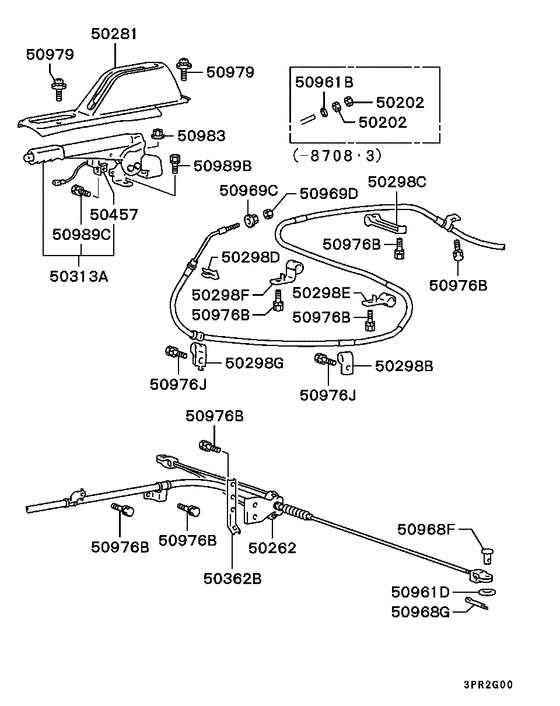

Parking brake control (ALL) Diagram Mitsubishi L300
- Year
- 1986 - 1995
- Sales region
- EUR
- Note
- GLX(4DOOR,MPI),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50202
|
50202
MB256718 ADJUSTER, PARKING BRAKE CABLE |
MB256718 |
US $3.74 |
||
|
50262
|
50262
MB256801
CABLE,PARKING BRAKE
|
MB256801 |
— | ||
|
50281
|
50281
MB706749 COVER,PARKING BRAKE LEVER |
MB706749 |
US $25.20 |
||
|
50281
|
50281
MB757028
COVER,PARKING BRAKE LEVER
|
MB757028 |
— | ||
|
50281
|
50281
MB772300
COVER,PARKING BRAKE LEVER
|
MB772300 |
— | ||
|
50298B
|
50298B
MB256804 CLAMP, PARKING BRAKE CABLE |
MB256804 |
US $3.74 |
||
|
50298C
|
50298C
MB256808 CLAMP, PARKING BRAKE CABLE |
MB256808 |
US $6.62 |
||
|
50298D
|
50298D
MB256729 CLAMP, PARKING BRAKE CABLE |
MB256729 |
US $1.58 |
||
|
50298E
|
50298E
MB256817
CLAMP,PARKING BRAKE CABLE
|
MB256817 |
— | ||
|
50298F
|
50298F
MB256818
CLAMP,PARKING BRAKE CABLE
|
MB256818 |
— | ||
|
50298G
|
50298G
MB256829
CLAMP,PARKING BRAKE CABLE
|
MB256829 |
— | ||
|
50313A
|
50313A
MB706752 LEVER ASSY,PARKING BRAKE |
MB706752 |
US $110.88 |
||
|
50313A
|
50313A
MB757031
LEVER ASSY,PARKING BRAKE
|
MB757031 |
— | ||
|
50313A
|
50313A
MB772304
LEVER ASSY,PARKING BRAKE
|
MB772304 |
— | ||
|
50362B
|
50362B
MB256811
PLATE, PARKING BRAKE CABLE
|
MB256811 |
— | ||
|
50457
|
50457
MB256714 SWITCH, PARKING BRAKE |
MB256714 |
US $8.64 |
||
|
50961B
|
50961B
MB256719 WASHER, PARKING BRAKE CABLEPlain,6.1 |
MB256719 |
US $3.60 |
||
|
50961D
|
50961D
MU450003 WASHER, PARKING BRAKE CABLEPlain,8.2 |
MU450003 |
US $3.04 |
||
|
50968F
|
50968F
MB256810 PIN, PARKING BRAKE CABLEClevis,8x20 |
MB256810 |
US $2.64 |
||
|
50968G
|
50968G
MF472038 PIN, ACCEL CONTROL EQUIPSplit,2x20 |
MF472038 |
from US $0.29 |
||
|
50969C
|
50969C
MU431501 NUT, GEARSHIFT LINKFlange,6 |
MU431501 |
US $2.30 |
||
|
50969D
|
50969D
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
50976B
|
50976B
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.10 |
||
|
50976J
|
50976J
MS240086 BOLT, ENG FR MOUNTINGWasher assembled,8x25 |
MS240086 |
from US $1.24 |
||
|
50979
|
50979
MS350143 SCREW, PARKING BRAKE LEVERWasher assembled,6x16 |
MS350143 |
US $2.11 |
||
|
50983
|
50983
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.70 |
||
|
50989B
|
50989B
MS240089 BOLT, FUEL LINEWasher assembled,10x20 |
MS240089 |
US $2.30 |
||
|
50989C
|
50989C
MS240907 BOLT, PARKING BRAKE LEVERWasher assembled,5x12 |
MS240907 |
US $2.74 |
