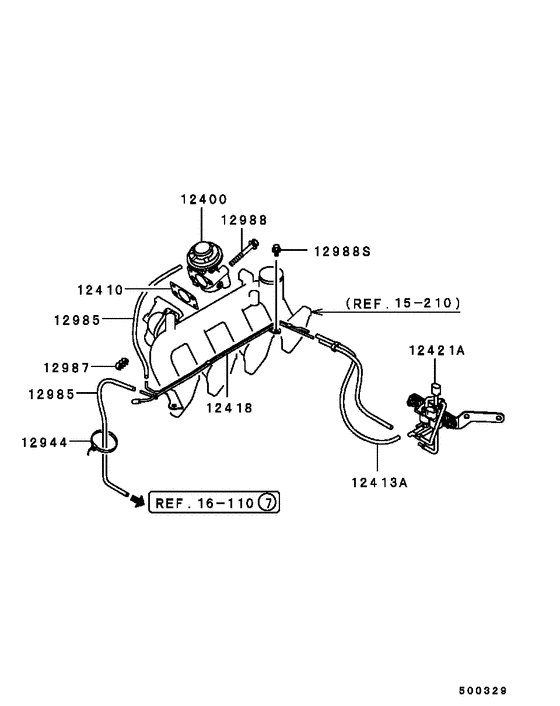

Emission control (-9305.3) Diagram Mitsubishi L300
- Year
- 1993 - 1996
- Sales region
- EUR
- Note
- DX(4DR/TURBO/PNL VAN/ANTI-POL),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- DX
- body
- VAN/VAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD125988 VALVE, EGR |
MD125988 |
US $385.92 |
||
|
12410
|
12410
MD072289
GASKET, EGR VALVE
|
MD072289 |
— | ||
| replacement | |||||
|
12410
|
12410
MD300522 GASKET, EGR VALVE |
MD300522 |
from US $1.90 |
||
|
12421A
|
12421A
MD114521 VALVE, EMISSION SOLENOID |
MD114521 |
US $264.96 |
||
|
12988
|
12988
MD075967 BOLT, EGR EQUIPWasher assembled,8x60 |
MD075967 |
US $5.76 |
||
|
12988S
|
12988S
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.80 |
||
|
