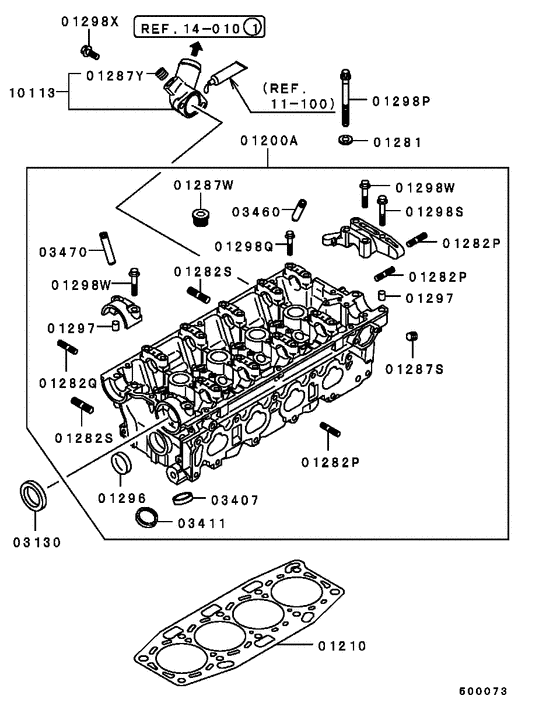

Cylinder head (ALL) Diagram Mitsubishi LANCER
- Year
- 1992 - 1995
- Sales region
- EUR
- Note
- GTI,5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01200A
|
01200A
MD178321
HEAD ASSY,ENG CYLINDER
|
MD178321 |
— | ||
|
01200A
|
01200A
MD311417
HEAD ASSY, ENG CYLINDER
|
MD311417 |
— | ||
|
01200A
|
01200A
MD318960
HEAD ASSY, ENG CYLINDER
|
MD318960 |
— | ||
|
01210
|
01210
MD177341 GASKET, CYLINDER HEAD |
MD177341 |
from US $94.38 |
||
|
01281
|
01281
MD000436 WASHERPlain,10 |
MD000436 |
from US $2.07 |
||
|
01282P
|
01282P
MS401427 STUD, CYLINDER HEAD8x25 |
MS401427 |
US $2.02 |
||
|
01282Q
|
01282Q
MD005317 STUD, CYLINDER HEAD8x28 |
MD005317 |
from US $2.07 |
||
|
01282S
|
01282S
MD122521 STUD, CYLINDER HEAD10x32 |
MD122521 |
from US $2.60 |
||
|
01287S
|
01287S
MS661141 PLUG, CYLINDER HEADTaper,1/4 |
MS661141 |
US $1.87 |
||
|
01287W
|
01287W
MD122446 PLUG, CYLINDER HEADScrew,22 |
MD122446 |
US $9.65 |
||
|
01287Y
|
01287Y
MS661162 PLUG, INLET MANIFOLDTaper,3/8 |
MS661162 |
from US $4.07 |
||
|
01296
|
01296
MF665541 CAP, CYLINDER BLOCK (HEAD)Sealing,35 |
MF665541 |
from US $1.43 |
||
|
01297
|
01297
MD132806 BUSHING, CYLINDER HEAD10x12 |
MD132806 |
US $2.24 |
||
|
01298P
|
01298P
MD164738 BOLT, CYLINDER HEADFlange,10x95 |
MD164738 |
from US $6.60 |
||
|
01298Q
|
01298Q
MS101318 BOLT, BALANCER CHAIN TRAINFlange,6x35 |
MS101318 |
from US $1.92 |
||
|
01298S
|
01298S
MF140234 BOLT, TIMING GEAR CASEFlange,8x45 |
MF140234 |
from US $1.73 |
||
|
01298W
|
01298W
MS101354 BOLT, CYLINDER HEADFlange,8x40 |
MS101354 |
from US $1.48 |
||
|
01298X
|
01298X
MF140026 BOLT, OIL FILTERFlange,8x22 |
MF140026 |
US $2.24 |
||
|
03130
|
03130
MD153103
OIL SEAL, CAMSHAFT
|
MD153103 |
— | ||
| replacement | |||||
|
03130
|
03130
MD372536 OIL SEAL, CAMSHAFT |
MD372536 |
from US $7.33 |
||
|
03407
|
03407
MD183884 SEAT, EXHAUST VALVEO/size 0.30 |
MD183884 |
US $33.84 |
||
|
03407
|
03407
MD183885 SEAT, EXHAUST VALVEO/size 0.60 |
MD183885 |
US $33.84 |
||
|
03411
|
03411
MD183881 SEAT, INLET VALVEO/size 0.30 |
MD183881 |
US $30.24 |
||
|
03411
|
03411
MD183882 SEAT, INLET VALVEO/size 0.60 |
MD183882 |
US $30.24 |
||
|
03460
|
03460
MD172527 GUIDE, INLET VALVEO/size 0.05 |
MD172527 |
US $41.76 |
||
|
03460
|
03460
MD172528 GUIDE, INLET VALVEO/size 0.25 |
MD172528 |
US $41.76 |
||
|
03460
|
03460
MD172529 GUIDE, INLET VALVEO/size 0.50 |
MD172529 |
US $35.28 |
||
|
03460
|
03460
MD300702 GUIDE, INLET VALVEO/size 0.05 |
MD300702 |
from US $19.17 |
||
|
03460
|
03460
MD300703 GUIDE, INLET VALVEO/size 0.25 |
MD300703 |
US $29.52 |
||
|
03460
|
03460
MD300704 GUIDE, INLET VALVEO/size 0.50 |
MD300704 |
US $29.52 |
||
|
03470
|
03470
MD172530 GUIDE, EXHAUST VALVEO/size 0.05 |
MD172530 |
from US $31.68 |
||
|
03470
|
03470
MD172531 GUIDE, EXHAUST VALVEO/size 0.25 |
MD172531 |
US $31.68 |
||
|
03470
|
03470
MD172532 GUIDE, EXHAUST VALVEO/size 0.50 |
MD172532 |
US $31.68 |
||
|
10113
|
10113
MD172484 FITTING, COOLING WATER OUTLET HOSE |
MD172484 |
US $41.04 |
||
|
