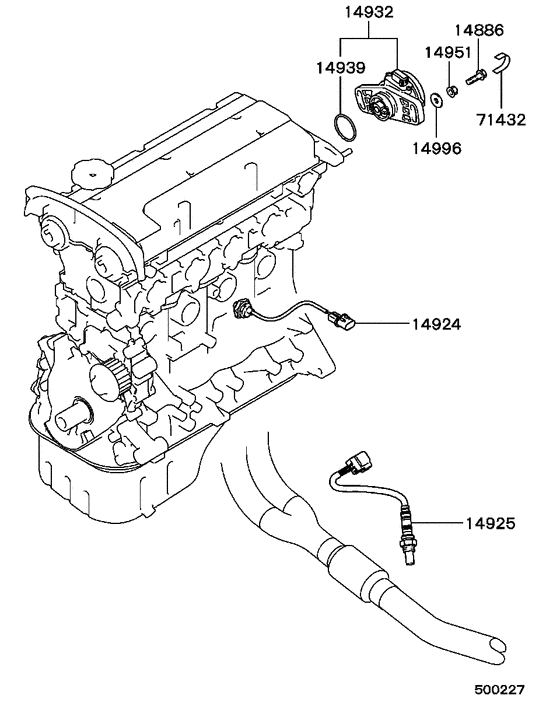

Electrical control (ALL (OXYGEN SENSOR ETC.)) Diagram Mitsubishi LANCER
- Year
- 1992 - 1995
- Sales region
- EUR
- Note
- GTI,5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GTI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14886
|
14886
MF140757
BOLT, ALTERNATOR
|
MF140757 |
— | ||
|
14924
|
14924
MD173144
SENSOR, ENG CONTROL KNOCK
|
MD173144 |
— | ||
|
14925
|
14925
MD183145
SENSOR,ENG CONTROL OXYGEN
|
MD183145 |
— | ||
|
14932
|
14932
MD180939 SENSOR, ENG CRANK ANGLE |
MD180939 |
US $743.04 |
||
|
14939
|
14939
MD611750
O-RING, DISTRIBUTOR
|
MD611750 |
— | ||
|
14951
|
14951
MF434114 NUT, DISTRIBUTORFlange,8 |
MF434114 |
US $2.02 |
||
|
14996
|
14996
MD102178 WASHER, DISTRIBUTORPlain,8.5 |
MD102178 |
US $2.74 |
||
|
71432
|
71432
MD001235 TAPE,SEAL |
MD001235 |
US $92.88 |
