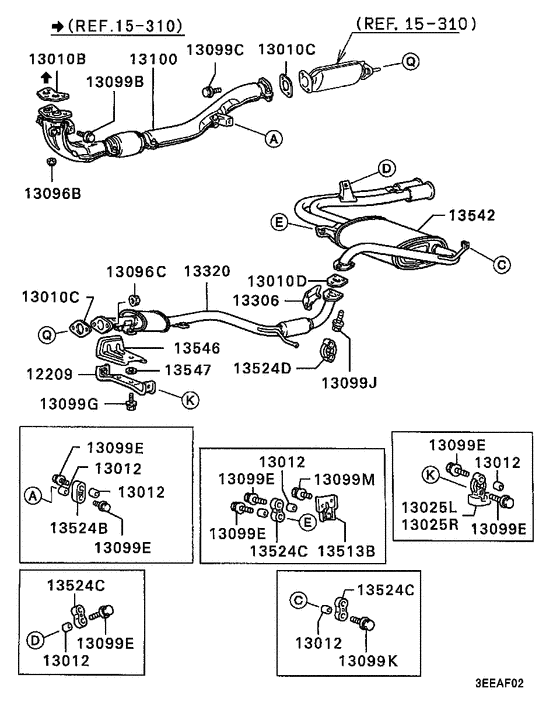

Exhaust pipe & muffler (EXC.HEAT PROTECTOR) Diagram Mitsubishi LANCER
- Year
- 1992 - 1995
- Sales region
- EUR
- Note
- GTI,5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12209
|
12209
MB376933 BRACKET, UNDER CATALYTIC CONVERTER HANGER |
MB376933 |
US $21.60 |
||
|
12209
|
12209
MB514687
BRACKET,UNDER CATALYTIC CONVERTER HANGER
|
MB514687 |
— | ||
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $9.24 |
||
|
13010C
|
13010C
MB687001 GASKET, EXHAUST PIPE |
MB687001 |
from US $7.52 |
||
|
13010D
|
13010D
MB687012 GASKET, EXHAUST PIPE |
MB687012 |
from US $7.62 |
||
|
13012
|
13012
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $2.51 |
||
|
13025L
|
13025L
MB612148 HANGER, EXHAUST PIPE, LH |
MB612148 |
US $40.26 |
||
|
13025R
|
13025R
MB612149
HANGER,EXHAUST PIPE,RH
|
MB612149 |
— | ||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $2.34 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $2.47 |
||
|
13099B
|
13099B
MF244880 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MF244880 |
from US $1.48 |
||
|
13099C
|
13099C
MS240118 BOLT, ENG SUPPORT RODWasher assembled,12x30 |
MS240118 |
from US $2.50 |
||
|
13099E
|
13099E
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099E
|
13099E
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.77 |
||
|
13099G
|
13099G
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $1.03 |
||
|
13099J
|
13099J
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.27 |
||
|
13099K
|
13099K
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099M
|
13099M
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
from US $1.24 |
||
|
13100
|
13100
MB890760
PIPE,EXHAUST,FR
|
MB890760 |
— | ||
|
13306
|
13306
MB549110 PROTECTOR, EXHAUST CTR PIPE HANGER |
MB549110 |
US $7.63 |
||
|
13306
|
13306
MB549111 PROTECTOR, EXHAUST CTR PIPE HANGER |
MB549111 |
US $8.64 |
||
|
13320
|
13320
MB577148
PIPE,EXHAUST,CTR
|
MB577148 |
— | ||
|
13513B
|
13513B
MB577009 BRACKET, EXHAUST PIPE HANGER |
MB577009 |
US $18.72 |
||
|
13524B
|
13524B
MB059936
HANGER, EXHAUST MUFFLER
|
MB059936 |
— | ||
| replacement | |||||
|
13524B
|
13524B
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $11.63 |
||
|
13524C
|
13524C
MB252856 HANGER, CATALYTIC CONVERTER |
MB252856 |
from US $9.65 |
||
|
13524D
|
13524D
MB376954 HANGER, EXHAUST MUFFLER |
MB376954 |
from US $10.82 |
||
|
13542
|
13542
MB687512 MUFFLER, EXHAUST MAIN |
MB687512 |
US $541.44 |
||
|
13546
|
13546
MB577741
PROTECTOR,EXHAUST MUFFLER HANGER
|
MB577741 |
— | ||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.49 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
