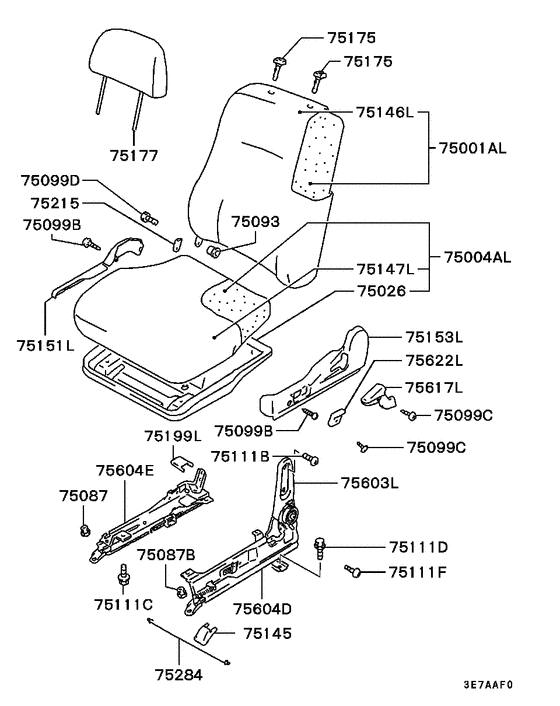

Front seat (LH('93MODEL-)) Diagram Mitsubishi LANCER
- Year
- 1992 - 1995
- Sales region
- EUR
- Note
- GTI,5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GTI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MR700878
BACK ASSY,FR SEAT,LH
|
MR700878 |
— | ||
|
75001AL
|
75001AL
MR700886
BACK ASSY,FR SEAT,LH
|
MR700886 |
— | ||
|
75001AL
|
75001AL
MR729319
BACK ASSY,FR SEAT,LH
|
MR729319 |
— | ||
|
75001AL
|
75001AL
MR729325
BACK ASSY,FR SEAT,LH
|
MR729325 |
— | ||
|
75004AL
|
75004AL
MR700844
CUSHION ASSY,FR SEAT,LH
|
MR700844 |
— | ||
|
75004AL
|
75004AL
MR700858
CUSHION ASSY,FR SEAT,LH
|
MR700858 |
— | ||
|
75004AL
|
75004AL
MR726199
CUSHION ASSY,FR SEAT,LH
|
MR726199 |
— | ||
|
75026
|
75026
MB915750 FRAME, FR SEAT CUSHION |
MB915750 |
US $60.06 |
||
|
75087
|
75087
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $1.98 |
||
|
75087B
|
75087B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.70 |
||
|
75093
|
75093
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.37 |
||
|
75099B
|
75099B
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
US $1.06 |
||
|
75099C
|
75099C
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.30 |
||
|
75099D
|
75099D
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.45 |
||
|
75111B
|
75111B
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.56 |
||
|
75111C
|
75111C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $1.03 |
||
|
75111D
|
75111D
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $2.51 |
||
|
75111F
|
75111F
MB902324 BOLT, FR SEATM10x18 |
MB902324 |
US $3.43 |
||
|
75145
|
75145
MB940135
COVER,FR SEAT ANCHOR
|
MB940135 |
— | ||
|
75147L
|
75147L
MR700914
COVER,FR SEAT CUSHION,LH
|
MR700914 |
— | ||
|
75147L
|
75147L
MR700928
COVER,FR SEAT CUSHION,LH
|
MR700928 |
— | ||
|
75147L
|
75147L
MR726188
COVER,FR SEAT CUSHION,LH
|
MR726188 |
— | ||
|
75153L
|
75153L
MB975081 COVER, FR SEAT SIDE SHIELD, LH |
MB975081 |
US $22.32 |
||
|
75175
|
75175
MB965579 GUIDE, FR SEAT HEADRESTW/lock |
MB965579 |
US $9.07 |
||
|
75175
|
75175
MB965581 GUIDE, FR SEAT HEADRESTW/o lock |
MB965581 |
US $9.07 |
||
|
75177
|
75177
MR700960
HEADREST,FR SEAT
|
MR700960 |
— | ||
|
75215
|
75215
MB874501
PROTECTOR, FR SEAT FREE HINGE
|
MB874501 |
— | ||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $3.89 |
||
|
75603L
|
75603L
MB592793 ADJUSTER, FR SEAT RECLINING, LH |
MB592793 |
US $174.24 |
||
|
75617L
|
75617L
MB797367 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MB797367 |
US $7.20 |
||
|
75622L
|
75622L
MB797363 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB797363 |
US $13.10 |
