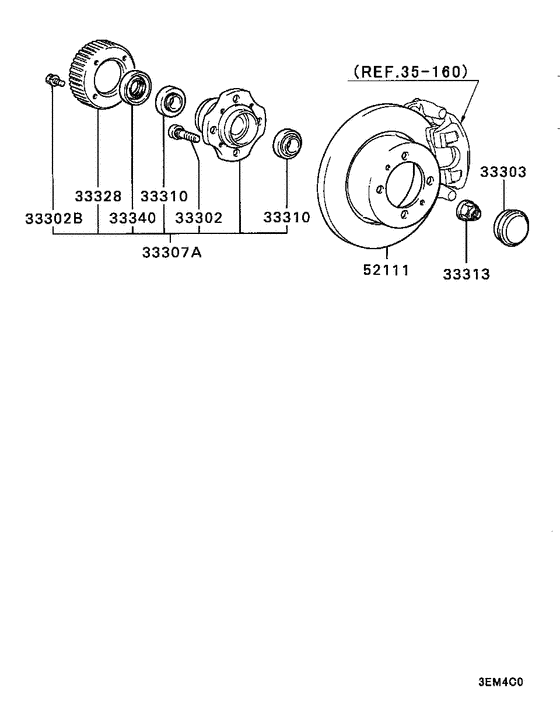

Rear axle hub & drum (ABS) Diagram Mitsubishi LANCER
- Year
- 1992 - 1995
- Sales region
- EUR
- Note
- GTI,5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GTI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33302
|
33302
MB303869
BOLT, FR WHEEL HUB
|
MB303869 |
— | ||
| replacement | |||||
|
33302
|
33302
MB911495 BOLT, FR WHEEL HUB12x43 |
MB911495 |
from US $2.19 |
||
|
33302B
|
33302B
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.12 |
||
|
33303
|
33303
MB338780
CAP, RR WHEEL HUB
|
MB338780 |
— | ||
|
33307A
|
33307A
MB515475 HUB ASSY, RR WHEEL |
MB515475 |
US $213.12 |
||
|
33307A
|
33307A
MB584399 HUB ASSY, RR WHEEL |
MB584399 |
US $273.60 |
||
|
33310
|
33310
MB515471 BEARING, RR WHEEL HUBTaper roller |
MB515471 |
US $38.16 |
||
|
33313
|
33313
MB584600 NUT, RR WHEEL HUBSelf locking,20 |
MB584600 |
from US $6.47 |
||
|
33328
|
33328
MB618398 ROTOR, RR WHEEL HUB ABS |
MB618398 |
US $237.60 |
||
|
33340
|
33340
MB584601 OIL SEAL, RR WHEEL HUB |
MB584601 |
from US $5.70 |
||
|
52111
|
52111
MB500556 DISC, RR BRAKE14; |
MB500556 |
US $122.40 |
||
|
35 160
|
Rear wheel brake
35 160
|
||||
|
35 160
|
Rear wheel brake
35 160
|
||||
|
35 160
|
Rear wheel brake
35 160
|
||||
