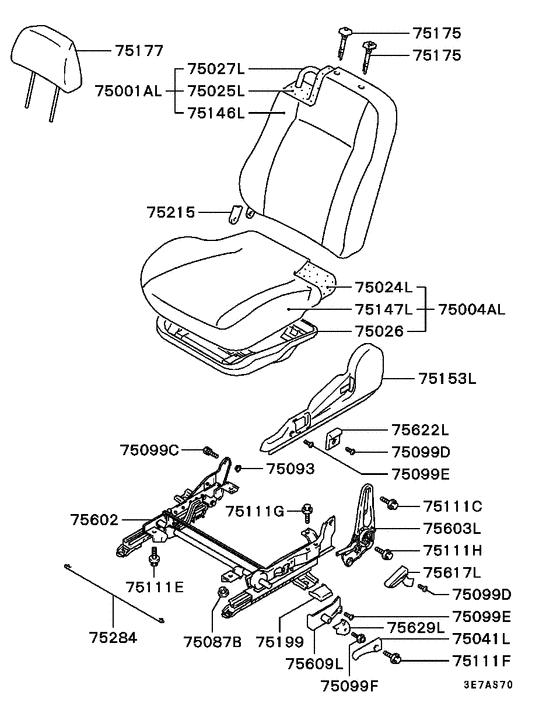

Front seat (LH) Diagram Mitsubishi LANCER
- Year
- 1999 - 2001
- Sales region
- 6B/MMTH
- Note
- GL,4FA/T THAI-6B
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GL
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MR788527T
BACK ASSY,FR SEAT,LH
|
MR788527T |
— | ||
|
75004AL
|
75004AL
MR788508T
CUSHION ASSY,FR SEAT,LH
|
MR788508T |
— | ||
|
75024L
|
75024L
MR219789T
PAD,FR SEAT CUSHION,LH
|
MR219789T |
— | ||
|
75025L
|
75025L
MR219791T
PAD,FR SEAT BACK,LH
|
MR219791T |
— | ||
|
75026
|
75026
MB915750T
FRAME,FR SEAT CUSHION
|
MB915750T |
— | ||
|
75027L
|
75027L
MR251095T
FRAME,FR SEAT BACK,LH
|
MR251095T |
— | ||
|
75041L
|
75041L
MR788544 LEVER, FR SEAT LIFTER, LH |
MR788544 |
US $33.12 |
||
|
75087B
|
75087B
MU431010 NUT, FR SEATCap,washer assembled |
MU431010 |
US $1.98 |
||
|
75093
|
75093
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.37 |
||
|
75099C
|
75099C
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.45 |
||
|
75099D
|
75099D
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.30 |
||
|
75099E
|
75099E
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
US $1.06 |
||
|
75099F
|
75099F
MF350743 SCREW, ENG GOVERNORWasher assembled,4x8 |
MF350743 |
from US $1.71 |
||
|
75111C
|
75111C
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.56 |
||
|
75111E
|
75111E
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $1.03 |
||
|
75111F
|
75111F
MF247223 BOLT, FUEL FILLER LID PANELWasher assembled,6x14 |
MF247223 |
US $1.58 |
||
|
75111G
|
75111G
MS240189 BOLT, BRAKE PEDALWasher assembled,10x25 |
MS240189 |
US $2.51 |
||
|
75111H
|
75111H
MB902324 BOLT, FR SEATM10x18 |
MB902324 |
US $3.43 |
||
|
75146L
|
75146L
MR788572T
COVER,FR SEAT BACK,LH
|
MR788572T |
— | ||
|
75147L
|
75147L
MR788551T
COVER,FR SEAT CUSHION,LH
|
MR788551T |
— | ||
|
75153L
|
75153L
MR759795T
COVER,FR SEAT SIDE SHIELD,LH
|
MR759795T |
— | ||
|
75175
|
75175
MR753562T
GUIDE,FR SEAT HEADREST
|
MR753562T |
— | ||
|
75175
|
75175
MR753563T
GUIDE,FR SEAT HEADREST
|
MR753563T |
— | ||
|
75177
|
75177
MR788494T
HEADREST,FR SEAT
|
MR788494T |
— | ||
|
75199
|
75199
MR748265T
COVER,FR SEAT ANCHOR,RR
|
MR748265T |
— | ||
|
75215
|
75215
MB874501
PROTECTOR, FR SEAT FREE HINGE
|
MB874501 |
— | ||
|
75284
|
75284
MB874502 WIRE, FR SEAT |
MB874502 |
US $3.89 |
||
|
75602
|
75602
MR219703T
ADJUSTER,FR SEAT HEIGHT
|
MR219703T |
— | ||
|
75603L
|
75603L
MB592793T
ADJUSTER,FR SEAT RECLINING,LH
|
MB592793T |
— | ||
|
75609L
|
75609L
MR759796T
COVER,FR SEAT SLIDE RAIL BRACKET,LH
|
MR759796T |
— | ||
|
75617L
|
75617L
MR734688
KNOB, FR SEAT RECLINING ADJUSTER, LH
|
MR734688 |
— | ||
|
75622L
|
75622L
MR734686 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MR734686 |
US $13.10 |
||
|
75629L
|
75629L
MR788539 LEVER, FR SEAT HEIGHT ADJUSTER, LH |
MR788539 |
US $4.46 |
