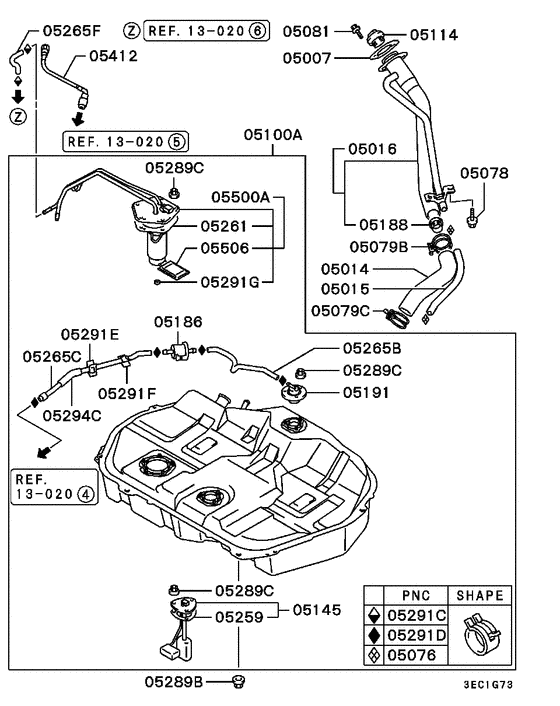

Fuel tank Diagram Mitsubishi LANCER
- Year
- 1999 - 2001
- Sales region
- 6B/MMTH
- Note
- GL,4FA/T THAI-6B
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GL
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB554982 GASKET, FUEL FILLER NECK |
MB554982 |
from US $3.17 |
||
|
05014
|
05014
MB908026 HOSE, FUEL FILLER |
MB908026 |
from US $34.32 |
||
|
05015
|
05015
MR135022 HOSE, FUEL FILLER NECK BREATHER |
MR135022 |
US $12.67 |
||
|
05016
|
05016
MR134967T
NECK,FUEL FILLER
|
MR134967T |
— | ||
|
05076
|
05076
MS660166 CLIP, ROCKER COVERD=15.5 |
MS660166 |
from US $1.58 |
||
|
05078
|
05078
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.71 |
||
|
05079B
|
05079B
MS660372
CLAMP, RADIATOR PIPING
|
MS660372 |
— | ||
| replacement | |||||
|
05079B
|
05079B
MH020380 CLIP, COOLING WATER LINE |
MH020380 |
US $4.49 |
||
|
05079C
|
05079C
MS660271 CLAMP, FUEL TANK45 |
MS660271 |
from US $3.42 |
||
|
05081
|
05081
MB400510
SCREW, FUEL TANK
|
MB400510 |
— | ||
| replacements | |||||
|
05081
|
05081
MU340019 SCREW, FUEL TANKWasher assembled,6x16 |
MU340019 |
from US $3.96 |
||
|
05081
|
05081
MU340031
SCREW, FUEL TANK
|
MU340031 |
— | ||
|
05100A
|
05100A
MR134939T
FUEL TANK ASSY
|
MR134939T |
— | ||
|
05114
|
05114
MR271610
CAP, FUEL TANK
|
MR271610 |
— | ||
| replacement | |||||
|
05114
|
05114
MN120695 CAP, FUEL TANK |
MN120695 |
from US $19.27 |
||
|
05145
|
05145
MR135469T
GAUGE UNIT,FUEL TANK
|
MR135469T |
— | ||
|
05186
|
05186
MR239350 VALVE, FUEL TANK VAPOR HOSE 2-WAY |
MR239350 |
US $29.04 |
||
|
05188
|
05188
MB867389 VALVE, FUEL FILLER NECK |
MB867389 |
US $7.52 |
||
|
05191
|
05191
MR342687 VALVE, FUEL TANK SAFETY |
MR342687 |
US $54 |
||
|
05259
|
05259
MB382513 GASKET, FUEL TANK GAUGE |
MB382513 |
from US $6 |
||
|
05261
|
05261
MB400686 GASKET, FUEL TANK PUMP |
MB400686 |
from US $4.36 |
||
|
05265B
|
05265B
MS605037
HOSE, FUEL TANK
|
MS605037 |
— | ||
|
05265C
|
05265C
MS605039
HOSE, FUEL VAPOR CONTROL LINE
|
MS605039 |
— | ||
|
05265F
|
05265F
MR239557 HOSE, FUEL TANK |
MR239557 |
US $4.36 |
||
|
05289B
|
05289B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.70 |
||
|
05289C
|
05289C
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.05 |
||
|
05291C
|
05291C
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.82 |
||
|
05291D
|
05291D
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $1.08 |
||
|
05291E
|
05291E
MR135060 CLIP, FUEL TANK |
MR135060 |
US $4.88 |
||
|
05291F
|
05291F
MR135487 CLIP, FUEL TANK |
MR135487 |
from US $2.93 |
||
|
05291G
|
05291G
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.83 |
||
|
05294C
|
05294C
MB248236 TUBE, FUEL RETURN LINESoft vinyl,14.5x180 |
MB248236 |
US $4.09 |
||
| replacement | |||||
|
05294C
|
05294C
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $5.28 |
||
|
05412
|
05412
MR340095 HOSE, FUEL HIGH PRESSURE |
MR340095 |
from US $52.80 |
||
|
05500A
|
05500A
MR241351T
FUEL PUMP ASSY
|
MR241351T |
— | ||
|
05506
|
05506
MR204495 FILTER, FUEL PUMP |
MR204495 |
from US $32.38 |
||
|
13 020
|
Fuel line & vapor gas control
13 020
|
||||
