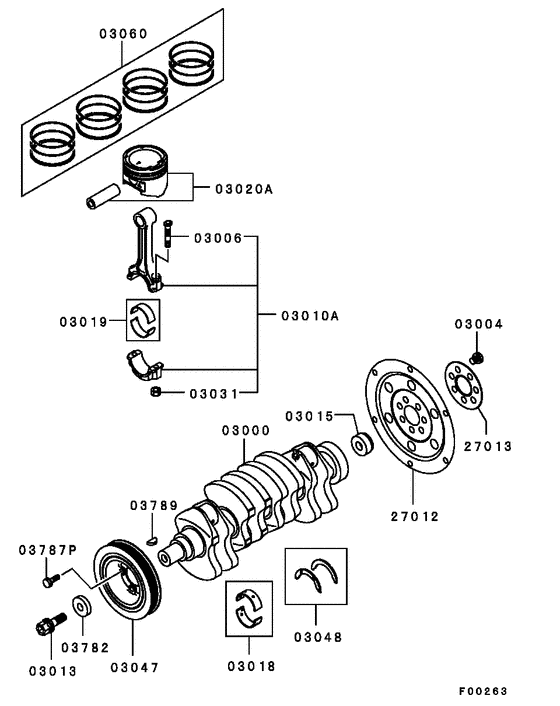

Piston & crankshaft (A/T) Diagram Mitsubishi LANCER
- Year
- 2005 - 2006
- Sales region
- Japan
- Note
- EVOLUTION/EVOLUTION-MR(GT-A),S5FA/T
- drive
- 4WD
- transmission
- S5FA/T
- grade
- EVOLUTION/EVOLU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD357543 CRANKSHAFT |
MD357543 |
US $1,437.12 |
||
|
03004
|
03004
MD752272 BOLT, A/T DRIVE PLATE12x11.7 |
MD752272 |
from US $3.76 |
||
|
03006
|
03006
MD193029 BOLT, CONNROD8x55.1 |
MD193029 |
from US $3.50 |
||
|
03010A
|
03010A
MN149125 CONNECTING ROD ASSY |
MN149125 |
from US $154.08 |
||
|
03013
|
03013
MD095201
CENTER BOLT, CRANKSHAFT PULLEY
|
MD095201 |
— | ||
| replacement | |||||
|
03013
|
03013
1101A022 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
1101A022 |
from US $8.98 |
||
|
03015
|
03015
MD756766 BUSHING, CRANKSHAFT |
MD756766 |
from US $7.92 |
||
|
03018
|
03018
MD326349
BEARING, CRANKSHAFT (STD 0)
|
MD326349 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B118 BEARING, CRANKSHAFT (STD 0)RED |
1052B118 |
from US $21.20 |
||
|
03018
|
03018
MD326350
BEARING, CRANKSHAFT (STD 1)
|
MD326350 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B119 BEARING, CRANKSHAFT (STD 1)BLACK |
1052B119 |
from US $27.68 |
||
|
03018
|
03018
MD326351
BEARING, CRANKSHAFT (STD 2)
|
MD326351 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B120 BEARING, CRANKSHAFT (STD 2)PURPLE |
1052B120 |
from US $23.48 |
||
|
03018
|
03018
MD326352
BEARING, CRANKSHAFT (STD 3)
|
MD326352 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B121 BEARING, CRANKSHAFT (STD 3)GREEN |
1052B121 |
from US $25.50 |
||
|
03018
|
03018
MD326353
BEARING, CRANKSHAFT (STD 4)
|
MD326353 |
— | ||
| replacement | |||||
|
03018
|
03018
1052B122 BEARING, CRANKSHAFT (STD 4)BLUE |
1052B122 |
US $35.28 |
||
|
03019
|
03019
MD326359
BEARING, CONNROD (STD 0)
|
MD326359 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A429 BEARING, CONNROD (STD 0)RED |
1115A429 |
from US $18.30 |
||
|
03019
|
03019
MD326360
BEARING, CONNROD (STD 1)
|
MD326360 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A430 BEARING, CONNRODBLACK |
1115A430 |
from US $17.99 |
||
|
03019
|
03019
MD326361
BEARING, CONNROD (STD 2)
|
MD326361 |
— | ||
| replacement | |||||
|
03019
|
03019
1115A431 BEARING, CONNROD (STD 2)PURPLE |
1115A431 |
from US $17.99 |
||
|
03020A
|
03020A
MD375689 PISTON & PIN ASSYStd a |
MD375689 |
US $115.20 |
||
|
03020A
|
03020A
MD375690 PISTON & PIN ASSYStd b |
MD375690 |
US $115.20 |
||
|
03020A
|
03020A
MD375691 PISTON & PIN ASSYStd c |
MD375691 |
US $115.20 |
||
|
03020A
|
03020A
MD376805 PISTON & PIN ASSYO/size 0.50 |
MD376805 |
US $115.20 |
||
|
03020A
|
03020A
MD376806 PISTON & PIN ASSYO/size 1.00 |
MD376806 |
US $115.20 |
||
|
03031
|
03031
MD144215 NUT, CONNROD8 |
MD144215 |
from US $3.15 |
||
|
03047
|
03047
MD377605 PULLEY, CRANKSHAFTRibbed |
MD377605 |
US $213.12 |
||
|
03048
|
03048
MD351820 THRUST BEARING SET, CRANKSHAFTPlain |
MD351820 |
from US $12.10 |
||
|
03060
|
03060
MD376260 RING SET, PISTONStd |
MD376260 |
US $234.72 |
||
|
03060
|
03060
MD377659 RING SET, PISTONO/size 0.50 |
MD377659 |
US $234.72 |
||
|
03060
|
03060
MD377660 RING SET, PISTONO/size 1.00 |
MD377660 |
US $234.72 |
||
|
03782
|
03782
MD377400 WASHER, CRANKSHAFT PULLEY14.5 |
MD377400 |
from US $5.26 |
||
|
03787P
|
03787P
MN128964 BOLT, CRANKSHAFT PULLEYWasher assembled,8x25 |
MN128964 |
from US $1.50 |
||
|
03787P
|
03787P
MS240211 BOLT, CRANKSHAFT PULLEYWasher assembled,8x25 |
MS240211 |
from US $1.25 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.39 |
||
|
27012
|
27012
MR967997 PLATE, A/T DRIVE |
MR967997 |
US $63.36 |
||
|
27013
|
27013
MD756768
PLATE, A/T DRIVE PLATE ADAPTER
|
MD756768 |
— | ||
| replacement | |||||
|
27013
|
27013
MD760086 PLATE, A/T DRIVE PLATE ADAPTER |
MD760086 |
US $11.22 |
||
