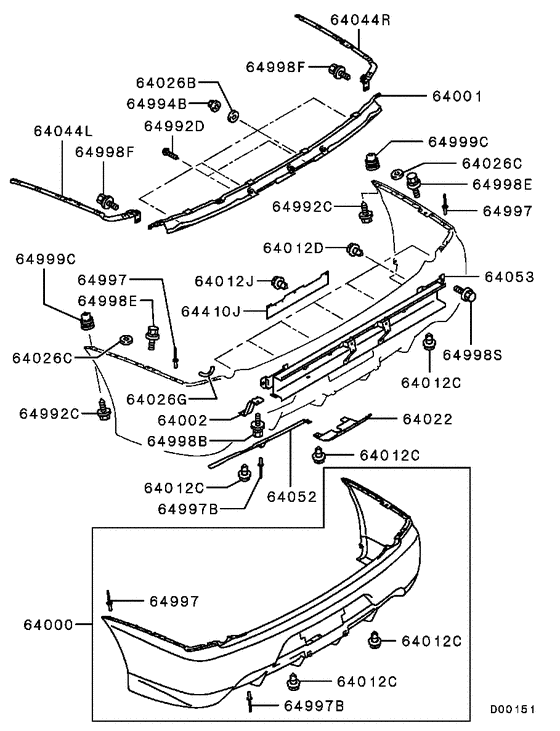

Rear bumper & support (ALL) Diagram Mitsubishi LANCER
- Year
- 2005 - 2006
- Sales region
- Japan
- Note
- EVOLUTION/EVOLUTION-MR(GT-A),S5FA/T
- drive
- 4WD
- transmission
- S5FA/T
- grade
- EVOLUTION/EVOLU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64000
|
64000
6410A617BA
FACE KIT, RR BUMPER
|
6410A617BA |
— | ||
|
64000
|
64000
6410A617HA
FACE KIT, RR BUMPER
|
6410A617HA |
— | ||
| replacement | |||||
|
64000
|
64000
6410A616 FACE KIT, RR BUMPER |
6410A616 |
US $715.44 |
||
|
64000
|
64000
6410A617HB
FACE KIT, RR BUMPER
|
6410A617HB |
— | ||
|
64000
|
64000
6410A617RA
FACE KIT, RR BUMPER
|
6410A617RA |
— | ||
|
64000
|
64000
6410A617WB
FACE KIT, RR BUMPER
|
6410A617WB |
— | ||
|
64000
|
64000
6410A617XA
FACE KIT, RR BUMPER
|
6410A617XA |
— | ||
|
64001
|
64001
6410A352 REINFORCEMENT, RR BUMPER |
6410A352 |
US $112.20 |
||
|
64002
|
64002
6410A196 BRACKET, RR BUMPER |
6410A196 |
US $6.34 |
||
|
64012C
|
64012C
MU488006 CLIP, ENG ROOM COVER8 |
MU488006 |
from US $0.76 |
||
|
64012D
|
64012D
MR200300 CLIP, FR BUMPER |
MR200300 |
from US $1.56 |
||
|
64012J
|
64012J
MS470075 CLIP |
MS470075 |
from US $0.86 |
||
|
64022
|
64022
6415A018HA COVER, RR BUMPER UNDER |
6415A018HA |
US $45.54 |
||
|
64026B
|
64026B
MA156028 GASKET, FR BUMPER25 |
MA156028 |
US $3.83 |
||
|
64026C
|
64026C
MR396855 GASKET, RR BUMPER |
MR396855 |
US $1.98 |
||
|
64026G
|
64026G
6410A687 GASKET, RR BUMPER |
6410A687 |
US $1.87 |
||
|
64044L
|
64044L
6410A357 PLATE, RR BUMPER, UPR LH |
6410A357 |
US $25.74 |
||
|
64044R
|
64044R
6410A358 PLATE, RR BUMPER, UPR RH |
6410A358 |
US $34.32 |
||
|
64052
|
64052
6410A356 REINFORCEMENT, RR BUMPER FACE SUPPORT SIDE |
6410A356 |
from US $27.72 |
||
|
64053
|
64053
6410A342 REINFORCEMENT, RR BUMPER FACE SUPPORT, CTR |
6410A342 |
US $313.92 |
||
|
64410J
|
64410J
6430A121 FLAP, RR END PANEL |
6430A121 |
US $27.72 |
||
|
64992C
|
64992C
MS452393 SCREW, OVERFENDERWasher assembled,6x20 |
MS452393 |
from US $2.64 |
||
|
64992D
|
64992D
MF455390 SCREW, FUEL LINETapping,5x10 |
MF455390 |
US $2.38 |
||
|
64994B
|
64994B
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $1.05 |
||
|
64997
|
64997
MR473000 RIVET, FR BUMPER4.2 |
MR473000 |
from US $1.69 |
||
|
64997B
|
64997B
MR971023 RIVET, FR BUMPER4 |
MR971023 |
from US $1.67 |
||
|
64998B
|
64998B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.71 |
||
|
64998E
|
64998E
MB612553 BOLT, RR BUMPERWasher assembled,6x16 |
MB612553 |
from US $1.81 |
||
|
64998F
|
64998F
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.31 |
||
|
64998S
|
64998S
MS240616 BOLT, BODY LOOSE PANELWasher assembled,8x25 |
MS240616 |
US $1.72 |
||
|
64998S
|
64998S
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.33 |
||
|
64999C
|
64999C
MR393386 GROMMET, FR BUMPER6 |
MR393386 |
from US $1.79 |
||
