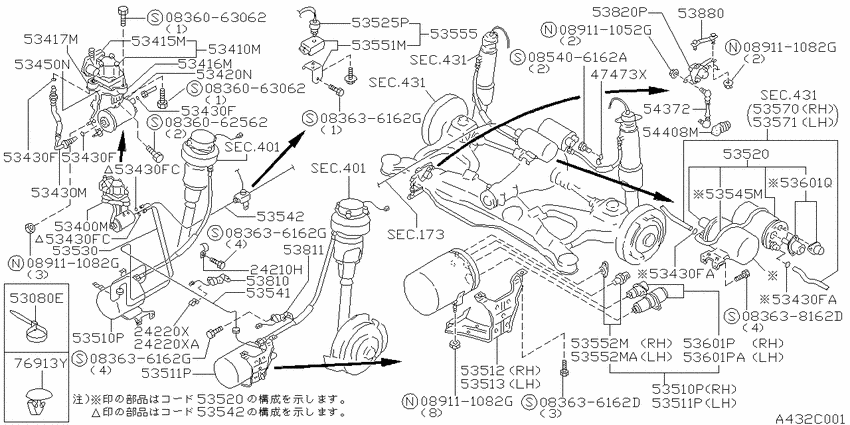

Suspension control (1991-06-01 ~ 1998-06-01; AIR.VG30E) Diagram Nissan CEDRIC/GLORIA
- Year
- 1991 - 1999
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT.F4
- grade
- BROV
- body
- S
- Suspension
- AIR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836062562
|
0836062562
08360-62562
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-62562 |
— | ||
|
0836063062
|
0836063062
0836063062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836063062 |
— | ||
|
0836063062
|
0836063062
0836063062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836063062 |
— | ||
|
083636162D
|
083636162D
08363-6162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6162D |
— | ||
| replacement | |||||
|
083636162D
|
083636162D
08360-6162D Screw |
08360-6162D |
US $1.85 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.24 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.24 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.24 |
||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
085406162A
|
085406162A
085406162A SCREWTAPPING |
085406162A |
US $1.85 |
||
|
089111052G
|
089111052G
089111052G Nut |
089111052G |
from US $0.59 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
24210H
|
24210H
24210-F5001 Clip-Wiring Harness9106--01 ~ 9806--01; AIR.VG30E |
24210-F5001 |
US $3.92 |
||
|
24220X
|
24220X
24220-17V00 Clip9106--01 ~ 9806--01; AIR.VG30E |
24220-17V00 |
US $0.84 |
||
|
24220X
|
24220X
24220-N8200 Clip9106--01 ~ 9806--01; AIR.VG30E |
24220-N8200 |
US $2.38 |
||
|
24220XA
|
24220XA
24220-N8200 Clip9106--01 ~ 9806--01; AIR.VG30E |
24220-N8200 |
US $2.38 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
47473X
|
47473X
47473-U9600 Clip-Vacuum Hose9106--01 ~ 9806--01; AIR.VG30E |
47473-U9600 |
US $2.38 |
||
|
53080E
|
53080E
01552-00401
CLIP-WIRING HARNESS
9412--01 ~ 9806--01; AIR.VG30E |
01552-00401 |
— | ||
| replacement | |||||
|
53080E
|
53080E
2421610Y80 Clamp9412--01 ~ 9806--01; AIR.VG30E |
2421610Y80 |
from US $4.51 |
||
|
53080E
|
53080E
01552-00481
CLAMP
9106--01 ~ 9412--01; AIR.VG30E |
01552-00481 |
— | ||
|
53400M
|
53400M
53400-17V01 Compressor Assy-Air9106--01 ~ 9806--01; AIR.VG30E |
53400-17V01 |
US $1,237.60 |
||
|
53410M
|
53410M
53410-17V00 Compressor & Valve Assy-Air Suspension9106--01 ~ 9204--01; AIR.VG30E |
53410-17V00 |
US $911.40 |
||
|
53410M
|
53410M
5341017V01 Compressor & Valve Assy-Air Suspension9204--01 ~ 9806--01; AIR.VG30E |
5341017V01 |
US $911.40 |
||
|
53415M
|
53415M
53415-17V00 Cylinder Assy-Compressor, Air Suspension9106--01 ~ 9306--01; AIR.VG30E |
53415-17V00 |
US $109.76 |
||
|
53416M
|
53416M
53416-17V01 Insulator-Compressor, A9106--01 ~ 9306--01; AIR.VG30E |
53416-17V01 |
US $10.08 |
||
|
53416M
|
53416M
53416-17V25 Insulator-Compressor, A9306--01 ~ 9806--01; AIR.VG30E |
53416-17V25 |
US $10.08 |
||
|
53417M
|
53417M
53417-17V01 Insulator-Compressor, B9106--01 ~ 9306--01; AIR.VG30E |
53417-17V01 |
US $10.08 |
||
|
53417M
|
53417M
53417-17V25 Insulator-Compressor, B9306--01 ~ 9806--01; AIR.VG30E |
53417-17V25 |
US $10.08 |
||
|
53420N
|
53420N
53420-17V00 Dryer Assy, Air Suspension9106--01 ~ 9806--01; AIR.VG30E |
53420-17V00 |
US $274.40 |
||
|
53430F
|
53430F
53547-17V01 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V01 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V01 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V01 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V01 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V01 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430F
|
53430F
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430FA
|
53430FA
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430FA
|
53430FA
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430FC
|
53430FC
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430FC
|
53430FC
53547-17V00 Seal-O Ring, Tube9106--01 ~ 9806--01; AIR.VG30E |
53547-17V00 |
US $5.46 |
||
|
53430M
|
53430M
53430-17V00 Tube-Compressor9106--01 ~ 9806--01; AIR.VG30E |
53430-17V00 |
US $14.98 |
||
|
53450N
|
53450N
53450-17V00 Bracket Assy-Compressor9306--01 ~ 9609--01; AIR.VG30E |
53450-17V00 |
US $62.30 |
||
|
53450N
|
53450N
53450-17V01 Bracket Assy-Compressor9106--01 ~ 9306--01; AIR.VG30E |
53450-17V01 |
US $51.24 |
||
|
53510P
|
53510P
53510-17V02 Tank & Valve Assy-Air Suspension, Fr Rh9106--01 ~ 9306--01; AIR.VG30E |
53510-17V02 |
US $826 |
||
|
53510P
|
53510P
53510-17V02 Tank & Valve Assy-Air Suspension, Fr Rh9106--01 ~ 9306--01; AIR.VG30E |
53510-17V02 |
US $826 |
||
|
53511P
|
53511P
53511-17V02 Tank & Valve Assy-Air Suspension, Fr Lh9106--01 ~ 9306--01; AIR.VG30E |
53511-17V02 |
US $826 |
||
|
53511P
|
53511P
53511-17V02 Tank & Valve Assy-Air Suspension, Fr Lh9106--01 ~ 9306--01; AIR.VG30E |
53511-17V02 |
US $826 |
||
|
53512
|
53512
53512-17V01 Bracket Assy-Sub Tank, Rh9106--01 ~ 9306--01; AIR.VG30E |
53512-17V01 |
US $32.76 |
||
|
53513
|
53513
53513-17V01 Bracket Assy-Sub Tank, Lh9106--01 ~ 9306--01; AIR.VG30E |
53513-17V01 |
US $32.76 |
||
|
53520
|
53520
53520-17V05 Tank & Valve Assy-Air Suspension, Rear9106--01 ~ 9806--01; AIR.VG30E |
53520-17V05 |
US $690.20 |
||
|
53520
|
53520
53520-17V05 Tank & Valve Assy-Air Suspension, Rear9106--01 ~ 9806--01; AIR.VG30E |
53520-17V05 |
US $690.20 |
||
|
53525P
|
53525P
53525-17V01 Switch-Pressure Sensor9106--01 ~ 9806--01; AIR.VG30E |
53525-17V01 |
US $84 |
||
|
53530
|
53530
53530-17V02 Tube Assy-Tank9106--01 ~ 9806--01; AIR.VG30E |
53530-17V02 |
US $27.30 |
||
|
53541
|
53541
5354117V02 Tube Assy-Tank, Front Lh9106--01 ~ 9806--01; AIR.VG30E |
5354117V02 |
US $32.76 |
||
|
53542
|
53542
53542-17V00 Tube Assy-Dryer&tank9106--01 ~ 9806--01; AIR.VG30E |
53542-17V00 |
US $12.74 |
||
|
53542
|
53542
53542-17V00 Tube Assy-Dryer&tank9106--01 ~ 9806--01; AIR.VG30E |
53542-17V00 |
US $12.74 |
||
|
53545M
|
53545M
53545-17V01 Tube Assy-Tank, Rear9106--01 ~ 9806--01; AIR.VG30E |
53545-17V01 |
US $44.80 |
||
|
53551M
|
53551M
53551-17V01 Connector-Air Suspension Tube9106--01 ~ 9806--01; AIR.VG30E |
53551-17V01 |
US $36.68 |
||
|
53552M
|
53552M
53552-17V01 Port-Tank, Air Suspension9106--01 ~ 9806--01; AIR.VG30E; ﾌﾛﾝﾄ ﾐｷﾞ ﾖｳ |
53552-17V01 |
US $14.70 |
||
|
53552M
|
53552M
53552-17V01 Port-Tank, Air Suspension9106--01 ~ 9806--01; AIR.VG30E; ﾌﾛﾝﾄ ﾋﾀﾞﾘ ﾖｳ |
53552-17V01 |
US $14.70 |
||
|
53552MA
|
53552MA
53552-17V01 Port-Tank, Air Suspension9106--01 ~ 9806--01; AIR.VG30E; ﾌﾛﾝﾄ ﾋﾀﾞﾘ ﾖｳ |
53552-17V01 |
US $14.70 |
||
|
53555
|
53555
53555-17V01 Connector&switch Compl-Air Suspension9106--01 ~ 9806--01; AIR.VG30E |
53555-17V01 |
US $120.54 |
||
|
53601P
|
53601P
53601-17V00 Valve Assy-Cut & Supply9106--01 ~ 9806--01; AIR.VG30E; ﾌﾛﾝﾄ ﾐｷﾞ ﾖｳ |
53601-17V00 |
US $86.24 |
||
|
53601P
|
53601P
53601-17V00 Valve Assy-Cut & Supply9106--01 ~ 9806--01; AIR.VG30E; ﾌﾛﾝﾄ ﾋﾀﾞﾘ ﾖｳ |
53601-17V00 |
US $86.24 |
||
|
53601PA
|
53601PA
53601-17V00 Valve Assy-Cut & Supply9106--01 ~ 9806--01; AIR.VG30E; ﾌﾛﾝﾄ ﾋﾀﾞﾘ ﾖｳ |
53601-17V00 |
US $86.24 |
||
|
53601Q
|
53601Q
53601-17V02 Valve Assy-Cut & Supply9106--01 ~ 9806--01; AIR.VG30E |
53601-17V02 |
US $54.74 |
||
|
53810
|
53810
53810-17V01 Sensor Assy-Height, Front Rh9106--01 ~ 9806--01; AIR.VG30E; ﾐｷﾞ ﾖｳ |
53810-17V01 |
US $191.80 |
||
|
53811
|
53811
53811-17V02 Sensor Assy-Height, Front Lh9106--01 ~ 9806--01; AIR.VG30E; ﾋﾀﾞﾘ ﾖｳ |
53811-17V02 |
US $191.80 |
||
|
53820P
|
53820P
53820-17V01 Sensor Assy-Height, Rear9106--01 ~ 9806--01; AIR.VG30E |
53820-17V01 |
US $191.80 |
||
|
53880
|
53880
53880-17V00 Bolt Assy-Plate, Sensor9106--01 ~ 9806--01; AIR.VG30E |
53880-17V00 |
US $4.90 |
||
|
54372
|
54372
54372-17V00 Rod Assy-Connecting, Sensor9106--01 ~ 9806--01; AIR.VG30E |
54372-17V00 |
US $27.30 |
||
|
54408M
|
54408M
54408-17V00 Plate-Closing, Transverse Link9106--01 ~ 9806--01; AIR.VG30E |
54408-17V00 |
US $8.54 |
||
|
76913Y
|
76913Y
76913N8200 Clip-Trim9106--01 ~ 9806--01; AIR.VG30E |
76913N8200 |
US $0.84 |
||
