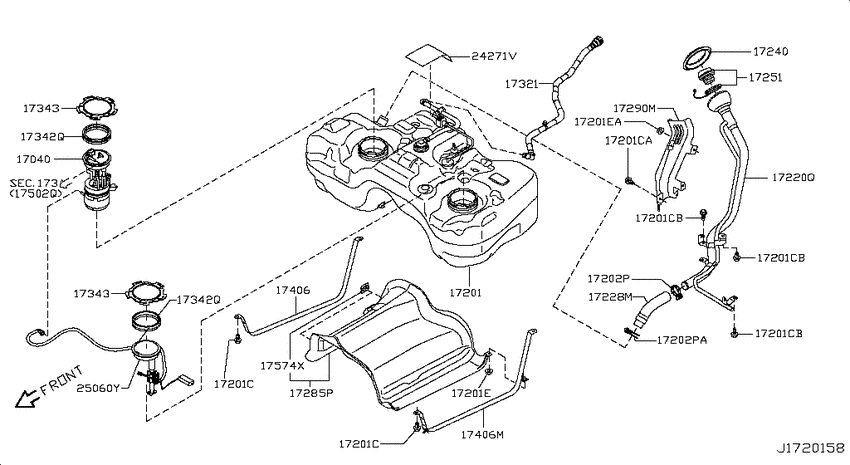

Fuel tank (2007-08-01 ~ 2009-08-01; 4WD.QR25DE) Diagram Nissan ROGUE
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Engine
- QR25DE
- drive
- 4WD
- transmission
- CVT/MCVT
- grade
- S
- body
- HB
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17040
|
17040
17040-JM10A
Fuel Pump-In Tank
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17040-JM10A |
— | ||
|
17201
|
17201
17202-JM10C
Tank Assy-Fuel
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17202-JM10C |
— | ||
|
17201
|
17201
01121-N0031 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01121-N0031 |
US $2.38 |
||
|
17201
|
17201
01125N6011 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125N6011 |
US $1.68 |
||
|
17201
|
17201
01125-N8021 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125-N8021 |
from US $0.83 |
||
|
17201
|
17201
0122100351 NUT2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
0122100351 |
US $0.84 |
||
|
17201
|
17201
01225N6011 Nut2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01225N6011 |
from US $0.52 |
||
|
17201C
|
17201C
01121-N0031 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01121-N0031 |
US $2.38 |
||
|
17201C
|
17201C
01125N6011 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125N6011 |
US $1.68 |
||
|
17201C
|
17201C
01125-N8021 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125-N8021 |
from US $0.83 |
||
|
17201C
|
17201C
01121-N0031 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01121-N0031 |
US $2.38 |
||
|
17201C
|
17201C
01125N6011 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125N6011 |
US $1.68 |
||
|
17201C
|
17201C
01125-N8021 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125-N8021 |
from US $0.83 |
||
|
17201CA
|
17201CA
01125N6011 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125N6011 |
US $1.68 |
||
|
17201CB
|
17201CB
01125-N8021 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125-N8021 |
from US $0.83 |
||
|
17201CB
|
17201CB
01125-N8021 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125-N8021 |
from US $0.83 |
||
|
17201CB
|
17201CB
01125-N8021 Bolt2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01125-N8021 |
from US $0.83 |
||
|
17201E
|
17201E
0122100351 NUT2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
0122100351 |
US $0.84 |
||
|
17201E
|
17201E
01225N6011 Nut2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01225N6011 |
from US $0.52 |
||
|
17201EA
|
17201EA
01225N6011 Nut2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
01225N6011 |
from US $0.52 |
||
|
17202P
|
17202P
16439-7S000
Clamp
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
16439-7S000 |
— | ||
|
17202P
|
17202P
16439-7S005
Clamp
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
16439-7S005 |
— | ||
|
17202PA
|
17202PA
16439-7S005
Clamp
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
16439-7S005 |
— | ||
|
17220Q
|
17220Q
17221-JM000
Tube Assy-Filler
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17221-JM000 |
— | ||
|
17228M
|
17228M
17228-JM000
Hose-Filler
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17228-JM000 |
— | ||
|
17240
|
17240
17240AN000 Grommet-Filler Base2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17240AN000 |
from US $7.42 |
||
|
17251
|
17251
17251-JA00A
Cap Assy-Filler
2007-08-01 ~ 2008-04-01; 4WD.QR25DE; , |
17251-JA00A |
— | ||
|
17251
|
17251
17251-JM00A
Cap Assy-Filler
2008-04-01 ~ 2008-06-01; 4WD.QR25DE; , |
17251-JM00A |
— | ||
|
17285P
|
17285P
17285-JG000
Protector-Fuel Tank
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17285-JG000 |
— | ||
| replacement | |||||
|
17285P
|
17285P
17285-JG00A Protector-Fuel Tank2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17285-JG00A |
US $164.37 |
||
|
17290M
|
17290M
17290-JM00A
Protector-Filler Tube
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17290-JM00A |
— | ||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
17321
|
17321
17321-JM000
Hose-Breather
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17321-JM000 |
— | ||
|
17342Q
|
17342Q
17342-EM30A
Packing-Fuel Gauge
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17342-EM30A |
— | ||
|
17342Q
|
17342Q
17342-EM30A
Packing-Fuel Gauge
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17342-EM30A |
— | ||
|
17343
|
17343
17343-JM00A
Plate-Lock, Fuel Gauge
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17343-JM00A |
— | ||
|
17343
|
17343
17343-JM00A
Plate-Lock, Fuel Gauge
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17343-JM00A |
— | ||
|
17406
|
17406
17406-JG000 Band Assy-Fuel Tank Mounting2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17406-JG000 |
from US $45.08 |
||
|
17406
|
17406
17407-JG000 Band Assy-Fuel Tank, Mounting2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17407-JG000 |
US $45.08 |
||
|
17406M
|
17406M
17407-JG000 Band Assy-Fuel Tank, Mounting2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17407-JG000 |
US $45.08 |
||
|
17574X
|
17574X
17574-8H300 Clip2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
17574-8H300 |
US $4.37 |
||
|
24271V
|
24271V
24271-JM00A
Protector-Harness
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
24271-JM00A |
— | ||
|
25060Y
|
25060Y
25060-JM10A
Fuel Level Sensor
2007-08-01 ~ 2009-08-01; 4WD.QR25DE; , |
25060-JM10A |
— | ||
