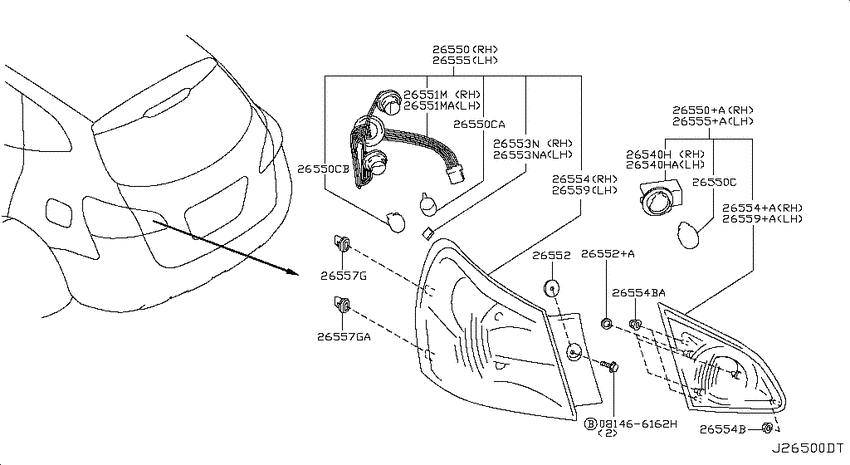

Rear combination lamp (2007-08-01 ~ 2008-06-01; HB) Diagram Nissan ROGUE
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Engine
- QR25DE
- drive
- 4WD
- transmission
- CVT/MCVT
- grade
- S
- body
- HB
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162H
|
081466162H
081466162H Bolt, S/wheel Carr |
081466162H |
US $1.60 |
||
|
26540H
|
26540H
26260-2L700 Socket Assy2007-08-01 ~ 2009-08-01; HB; , |
26260-2L700 |
US $10.08 |
||
|
26540H
|
26540H
26260-2L700 Socket Assy2007-08-01 ~ 2009-08-01; HB; , |
26260-2L700 |
US $10.08 |
||
|
26540HA
|
26540HA
26260-2L700 Socket Assy2007-08-01 ~ 2009-08-01; HB; , |
26260-2L700 |
US $10.08 |
||
|
26550
|
26550
26550-JM00A Combination Lamp Assy-Rear, Rh2007-08-01 ~ 2009-08-01; HB; , |
26550-JM00A |
US $121.49 |
||
|
26550
|
26550
26550-JM00B
Combination Lamp Assy-Rear, Rh
2007-08-01 ~ 2008-06-01; HB; , |
26550-JM00B |
— | ||
|
26550
|
26550
26550-JM00C
Combination Lamp Assy-Rear, Rh
2008-06-01 ~ 2009-08-01; HB; , |
26550-JM00C |
— | ||
|
26550
|
26550
2626189917 Bulb2007-08-01 ~ 2009-08-01; HB; 12V W16W |
2626189917 |
US $3.89 |
||
|
26550
|
26550
2626189949 Bulb2007-08-01 ~ 2009-08-01; HB; 12V 21W T20 |
2626189949 |
from US $1.67 |
||
|
26550
|
26550
26261-89947 Bulb2007-08-01 ~ 2009-08-01; HB; 12V 21/5W T20 |
26261-89947 |
from US $1.67 |
||
|
26550+A
|
26550+A
26550-JM00B
Combination Lamp Assy-Rear, Rh
2007-08-01 ~ 2008-06-01; HB; , |
26550-JM00B |
— | ||
|
26550+A
|
26550+A
26550-JM00C
Combination Lamp Assy-Rear, Rh
2008-06-01 ~ 2009-08-01; HB; , |
26550-JM00C |
— | ||
|
26550C
|
26550C
2626189917 Bulb2007-08-01 ~ 2009-08-01; HB; 12V W16W |
2626189917 |
US $3.89 |
||
|
26550C
|
26550C
2626189949 Bulb2007-08-01 ~ 2009-08-01; HB; 12V 21W T20 |
2626189949 |
from US $1.67 |
||
|
26550C
|
26550C
26261-89947 Bulb2007-08-01 ~ 2009-08-01; HB; 12V 21/5W T20 |
26261-89947 |
from US $1.67 |
||
|
26550CA
|
26550CA
2626189949 Bulb2007-08-01 ~ 2009-08-01; HB; 12V 21W T20 |
2626189949 |
from US $1.67 |
||
|
26550CB
|
26550CB
26261-89947 Bulb2007-08-01 ~ 2009-08-01; HB; 12V 21/5W T20 |
26261-89947 |
from US $1.67 |
||
|
26551M
|
26551M
26556-JM00A
Harness Assy-Rear Combination Lamp
2007-08-01 ~ 2009-08-01; HB; , |
26556-JM00A |
— | ||
|
26551M
|
26551M
26556-JM00A
Harness Assy-Rear Combination Lamp
2007-08-01 ~ 2009-08-01; HB; , |
26556-JM00A |
— | ||
|
26551MA
|
26551MA
26556-JM00A
Harness Assy-Rear Combination Lamp
2007-08-01 ~ 2009-08-01; HB; , |
26556-JM00A |
— | ||
|
26552
|
26552
26552-JM00A
Rim-Rear Combination Lamp, Rh
2007-08-01 ~ 2008-06-01; HB; , |
26552-JM00A |
— | ||
|
26552
|
26552
26552-JM00B
Rim-Rear Combination Lamp, Rh
2007-08-01 ~ 2009-08-01; HB; , |
26552-JM00B |
— | ||
|
26552+A
|
26552+A
26552-JM00B
Rim-Rear Combination Lamp, Rh
2007-08-01 ~ 2009-08-01; HB; , |
26552-JM00B |
— | ||
|
26553N
|
26553N
26553-CD000 Packing-Lamp2007-08-01 ~ 2009-08-01; HB; , |
26553-CD000 |
US $1.68 |
||
|
26553N
|
26553N
26553-JM00B
Packing-Rear Combination Lamp
2007-08-01 ~ 2009-08-01; HB; RH |
26553-JM00B |
— | ||
|
26553N
|
26553N
26558-JM00B
Packing-Rear Combination Lamp
2007-08-01 ~ 2009-08-01; HB; LH |
26558-JM00B |
— | ||
|
26553N
|
26553N
26553-JM00A
Packing-Rear Combination Lamp
2008-06-01 ~ 2009-08-01; HB; , |
26553-JM00A |
— | ||
|
26553NA
|
26553NA
26553-JM00B
Packing-Rear Combination Lamp
2007-08-01 ~ 2009-08-01; HB; RH |
26553-JM00B |
— | ||
|
26553NA
|
26553NA
26558-JM00B
Packing-Rear Combination Lamp
2007-08-01 ~ 2009-08-01; HB; LH |
26558-JM00B |
— | ||
|
26554
|
26554
26554-JM00A
Body Assy-Rear Combination Lamp, Rh
2007-08-01 ~ 2009-08-01; HB; , |
26554-JM00A |
— | ||
|
26554
|
26554
26554-JM00B
Body Assy-Rear Combination Lamp, Rh
2007-08-01 ~ 2008-06-01; HB; , |
26554-JM00B |
— | ||
|
26554
|
26554
26554-JM00C
Body Assy-Rear Combination Lamp, Rh
2008-06-01 ~ 2009-08-01; HB; , |
26554-JM00C |
— | ||
|
26554
|
26554
01221N6011 Nut2007-08-01 ~ 2009-08-01; HB; , |
01221N6011 |
from US $0.61 |
||
|
26554
|
26554
01225-00133 NUT2008-04-01 ~ 2009-08-01; HB; , |
01225-00133 |
US $2.38 |
||
|
26554
|
26554
90499CN00A Nut2007-08-01 ~ 2008-04-01; HB; , |
90499CN00A |
from US $0.80 |
||
|
26554+A
|
26554+A
26554-JM00B
Body Assy-Rear Combination Lamp, Rh
2007-08-01 ~ 2008-06-01; HB; , |
26554-JM00B |
— | ||
|
26554+A
|
26554+A
26554-JM00C
Body Assy-Rear Combination Lamp, Rh
2008-06-01 ~ 2009-08-01; HB; , |
26554-JM00C |
— | ||
|
26554B
|
26554B
01221N6011 Nut2007-08-01 ~ 2009-08-01; HB; , |
01221N6011 |
from US $0.61 |
||
|
26554B
|
26554B
01225-00133 NUT2008-04-01 ~ 2009-08-01; HB; , |
01225-00133 |
US $2.38 |
||
|
26554B
|
26554B
90499CN00A Nut2007-08-01 ~ 2008-04-01; HB; , |
90499CN00A |
from US $0.80 |
||
|
26554BA
|
26554BA
01225-00133 NUT2008-04-01 ~ 2009-08-01; HB; , |
01225-00133 |
US $2.38 |
||
|
26554BA
|
26554BA
90499CN00A Nut2007-08-01 ~ 2008-04-01; HB; , |
90499CN00A |
from US $0.80 |
||
|
26555
|
26555
26555-JM00A
Combination Lamp Assy-Rear, Lh
2007-08-01 ~ 2009-08-01; HB; , |
26555-JM00A |
— | ||
|
26555
|
26555
26555-JM00B
Combination Lamp Assy-Rear, Lh
2007-08-01 ~ 2008-06-01; HB; , |
26555-JM00B |
— | ||
|
26555
|
26555
26555-JM00C
Combination Lamp Assy-Rear, Lh
2008-06-01 ~ 2009-08-01; HB; , |
26555-JM00C |
— | ||
|
26555+A
|
26555+A
26555-JM00B
Combination Lamp Assy-Rear, Lh
2007-08-01 ~ 2008-06-01; HB; , |
26555-JM00B |
— | ||
|
26555+A
|
26555+A
26555-JM00C
Combination Lamp Assy-Rear, Lh
2008-06-01 ~ 2009-08-01; HB; , |
26555-JM00C |
— | ||
|
26557G
|
26557G
265572U000 Grommet2007-08-01 ~ 2009-08-01; HB; , |
265572U000 |
from US $1.65 |
||
|
26557G
|
26557G
265572U001 Grommet2007-08-01 ~ 2009-08-01; HB; , |
265572U001 |
from US $1.65 |
||
|
26557GA
|
26557GA
265572U001 Grommet2007-08-01 ~ 2009-08-01; HB; , |
265572U001 |
from US $1.65 |
||
|
26559
|
26559
26559-JM00A
Body Assy-Rear Combination Lamp, Lh
2007-08-01 ~ 2009-08-01; HB; , |
26559-JM00A |
— | ||
|
26559
|
26559
26559-JM00B
Body Assy-Rear Combination Lamp, Lh
2007-08-01 ~ 2008-06-01; HB; , |
26559-JM00B |
— | ||
|
26559
|
26559
26559-JM00C
Body Assy-Rear Combination Lamp, Lh
2008-06-01 ~ 2009-08-01; HB; , |
26559-JM00C |
— | ||
|
26559+A
|
26559+A
26559-JM00B
Body Assy-Rear Combination Lamp, Lh
2007-08-01 ~ 2008-06-01; HB; , |
26559-JM00B |
— | ||
|
26559+A
|
26559+A
26559-JM00C
Body Assy-Rear Combination Lamp, Lh
2008-06-01 ~ 2009-08-01; HB; , |
26559-JM00C |
— |
