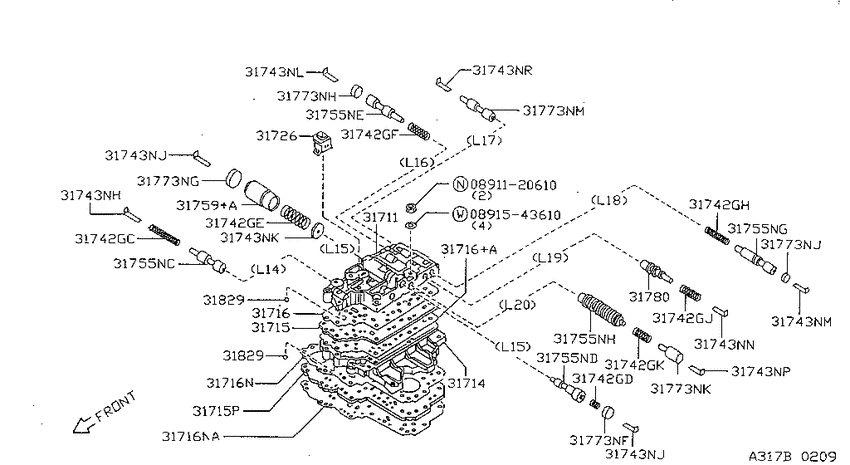

Control valve (atm) (1998-07-01 ~ ; UPPER; SR20DE.AT) Diagram Nissan SENTRA/200SX
- Year
- 1998 - 2011
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- AT
- body
- 4S
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
from US $0.54 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
31711
|
31711
31711-33X01 Body-Upper, Control Valve1998-07-01 ~ ; SR20DE.AT; , |
31711-33X01 |
US $132.72 |
||
|
31714
|
31714
31714-33X00 Body-Inter, Control Valve1998-07-01 ~ ; SR20DE.AT; , |
31714-33X00 |
US $69.16 |
||
|
31715
|
31715
31715-33X10 Plate-Separator1998-07-01 ~ ; SR20DE.AT; UPPER |
31715-33X10 |
US $22.54 |
||
|
31715
|
31715
31719-33X10 Plate-Separator1998-07-01 ~ ; SR20DE.AT; LOWER |
31719-33X10 |
US $22.54 |
||
|
31715P
|
31715P
31719-33X10 Plate-Separator1998-07-01 ~ ; SR20DE.AT; LOWER |
31719-33X10 |
US $22.54 |
||
|
31726
|
31726
3172641X00 Filter Assy-Oil, Auto Transmission1998-07-01 ~ ; SR20DE.AT; , |
3172641X00 |
US $5.31 |
||
|
31742GC
|
31742GC
31742-41X15 Spring-Valve1998-07-01 ~ ; SR20DE.AT; L13 |
31742-41X15 |
US $0.84 |
||
|
31742GD
|
31742GD
31742-80X16 Spring-Valve1998-07-01 ~ ; SR20DE.AT; L13 |
31742-80X16 |
US $2.38 |
||
|
31742GE
|
31742GE
31742-80X14 Spring-Valve1998-07-01 ~ ; SR20DE.AT; L14 |
31742-80X14 |
US $0.84 |
||
|
31742GF
|
31742GF
31742-80X05 Spring-Valve1998-07-01 ~ ; SR20DE.AT; L16 |
31742-80X05 |
US $0.84 |
||
|
31742GF
|
31742GF
31742-80X10 Spring-Valve1998-07-01 ~ ; SR20DE.AT; L15 |
31742-80X10 |
US $0.84 |
||
|
31742GJ
|
31742GJ
31742-80X06 Spring-Valve1998-07-01 ~ ; SR20DE.AT; L18 |
31742-80X06 |
US $2.38 |
||
|
31742GK
|
31742GK
31742-33X00 Spring-Valve1998-07-01 ~ ; SR20DE.AT; L19 |
31742-33X00 |
US $0.84 |
||
|
31743NH
|
31743NH
31743-31X02 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L14 |
31743-31X02 |
US $1.96 |
||
|
31743NJ
|
31743NJ
31743-80X07 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L15 |
31743-80X07 |
US $0.84 |
||
|
31743NJ
|
31743NJ
31743-80X07 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L15 |
31743-80X07 |
US $0.84 |
||
|
31743NK
|
31743NK
31743-80X06 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L15 |
31743-80X06 |
US $1.96 |
||
|
31743NL
|
31743NL
31743-31X02 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L16 |
31743-31X02 |
US $1.96 |
||
|
31743NM
|
31743NM
31743-31X02 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L17 |
31743-31X02 |
US $1.96 |
||
|
31743NN
|
31743NN
31743-80X04 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L18 |
31743-80X04 |
US $0.84 |
||
|
31743NP
|
31743NP
31743-31X02 Plate-Retainer1998-07-01 ~ ; SR20DE.AT; L19 |
31743-31X02 |
US $1.96 |
||
|
31755NC
|
31755NC
31772-80X11 Valve-Spool1998-07-01 ~ ; SR20DE.AT; L14 |
31772-80X11 |
US $10.50 |
||
|
31755ND
|
31755ND
31772-80X03 Valve-Spool1998-07-01 ~ ; SR20DE.AT; L15 |
31772-80X03 |
US $7 |
||
|
31755NE
|
31755NE
31772-21X00 Valve-Spool1998-07-01 ~ ; SR20DE.AT; L16 |
31772-21X00 |
US $6.64 |
||
|
31755NG
|
31755NG
31772-80X13 Valve-Spool1998-07-01 ~ ; SR20DE.AT; L20 |
31772-80X13 |
US $10.50 |
||
|
31759+A
|
31759+A
31675-80X06 Piston-Accumulator1998-07-01 ~ ; SR20DE.AT; L15 |
31675-80X06 |
US $14 |
||
|
31773NF
|
31773NF
31845-27X62 Plug1998-07-01 ~ ; SR20DE.AT; L15 |
31845-27X62 |
US $7.14 |
||
|
31773NG
|
31773NG
31845-80X04 Plug1998-07-01 ~ ; SR20DE.AT; L15 |
31845-80X04 |
US $6.02 |
||
|
31773NH
|
31773NH
31845-31X07 Plug1998-07-01 ~ ; SR20DE.AT; L16 |
31845-31X07 |
US $2.38 |
||
|
31773NJ
|
31773NJ
31845-33X01 Plug1998-07-01 ~ ; SR20DE.AT; L17 |
31845-33X01 |
US $6.02 |
||
|
31773NK
|
31773NK
31845-60X00 Plug1998-07-01 ~ ; SR20DE.AT; L18 |
31845-60X00 |
US $2.38 |
||
|
31780
|
31780
31780-41X00 Valve-Relief1998-07-01 ~ ; SR20DE.AT; L19 |
31780-41X00 |
US $12.88 |
||
|
31829
|
31829
31829-68300 Ball-Steel1998-07-01 ~ ; SR20DE.AT; , |
31829-68300 |
US $1.68 |
||
|
31829
|
31829
32829-26760 Ball-Check1998-07-01 ~ ; SR20DE.AT; , |
32829-26760 |
from US $0.74 |
||
|
31829
|
31829
31829-68300 Ball-Steel1998-07-01 ~ ; SR20DE.AT; , |
31829-68300 |
US $1.68 |
||
|
31829
|
31829
32829-26760 Ball-Check1998-07-01 ~ ; SR20DE.AT; , |
32829-26760 |
from US $0.74 |
