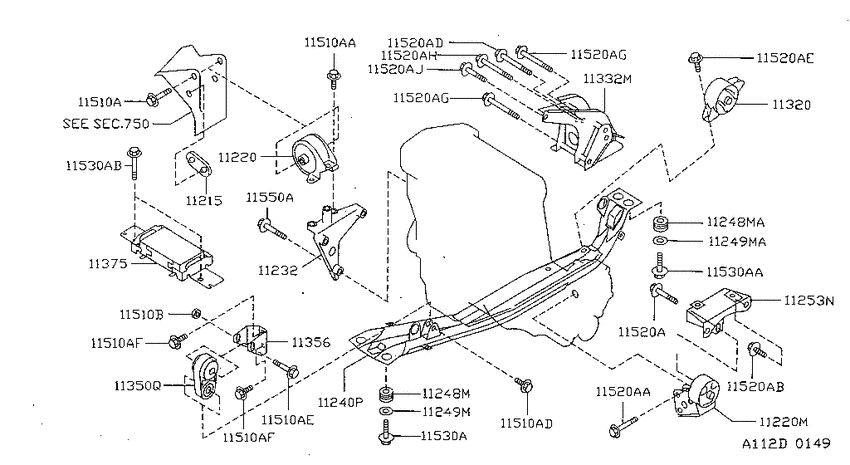

Engine & transmission mounting (1998-07-01 ~ ; SR20DE.MT) Diagram Nissan SENTRA/200SX
- Year
- 1998 - 2011
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215
|
11215
11215-F4201
Stopper-Rubber, Engine Mounting
1998-07-01 ~ ; SR20DE.MT; , |
11215-F4201 |
— | ||
|
11220
|
11220
11210-0M800 Insulator Assy-Engine Mounting, Front Rh1998-07-01 ~ ; SR20DE.MT; , |
11210-0M800 |
US $133.27 |
||
|
11220
|
11220
11211-0M800
Insulator-Engine Mounting, Front
1998-07-01 ~ ; SR20DE.MT; , |
11211-0M800 |
— | ||
|
11220
|
11220
11220-0M800 Insulator Assy-Engine Mounting, Front Lh1998-07-01 ~ ; SR20DE.MT; , |
11220-0M800 |
US $92.40 |
||
|
11220M
|
11220M
11220-0M800 Insulator Assy-Engine Mounting, Front Lh1998-07-01 ~ ; SR20DE.MT; , |
11220-0M800 |
US $92.40 |
||
|
11232
|
11232
11231-0M800 Bracket-Engine Mounting1998-07-01 ~ ; SR20DE.MT; , |
11231-0M800 |
US $89.18 |
||
|
11240P
|
11240P
11240-4B000
Member Assy-Engine Mounting
1998-07-01 ~ ; SR20DE.MT; , |
11240-4B000 |
— | ||
|
11240P
|
11240P
11240-F4300
Member Assy-Engine Mounting
1998-07-01 ~ ; SR20DE.MT; , |
11240-F4300 |
— | ||
|
11248M
|
11248M
11248-0M900 Pad-Engine Mounting Member1998-07-01 ~ ; SR20DE.MT; , |
11248-0M900 |
US $7.28 |
||
|
11248M
|
11248M
11248-F4300
Pad-Engine Mounting Member
1998-07-01 ~ ; SR20DE.MT; , |
11248-F4300 |
— | ||
|
11248MA
|
11248MA
11248-F4300
Pad-Engine Mounting Member
1998-07-01 ~ ; SR20DE.MT; , |
11248-F4300 |
— | ||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting1998-07-01 ~ ; SR20DE.MT; , |
11249-50Y00 |
from US $1.59 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting1998-07-01 ~ ; SR20DE.MT; , |
11249-50Y00 |
from US $1.59 |
||
|
11249MA
|
11249MA
11249-50Y00 Collar-Engine Mounting1998-07-01 ~ ; SR20DE.MT; , |
11249-50Y00 |
from US $1.59 |
||
|
11253N
|
11253N
11253-4B000
Bracket-Engine Mounting, Lh
1998-07-01 ~ ; SR20DE.MT; , |
11253-4B000 |
— | ||
|
11320
|
11320
11320-4B002
Insulator-Engine Mounting, Rear
1998-07-01 ~ ; SR20DE.MT; , |
11320-4B002 |
— | ||
|
11332M
|
11332M
11332-0M700 Bracket-Engine Mounting, Rear1998-07-01 ~ ; SR20DE.MT; , |
11332-0M700 |
US $94.78 |
||
|
11350Q
|
11350Q
11350-F4300
Buffer Assy-Engine Mounting, Rear
1998-07-01 ~ ; SR20DE.MT; , |
11350-F4300 |
— | ||
|
11356
|
11356
11356-58Y00 Stopper-Engine Mounting, Rear1998-07-01 ~ ; SR20DE.MT; , |
11356-58Y00 |
US $12.32 |
||
|
11375
|
11375
11375-0M805 Damper Assy-Dynamic1998-07-01 ~ ; SR20DE.MT; , |
11375-0M805 |
US $131.88 |
||
|
11510A
|
11510A
01125-01991 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01991 |
US $3.36 |
||
|
11510A
|
11510A
01125-02991 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-02991 |
US $4.06 |
||
|
11510A
|
11510A
01125-01971 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01971 |
US $3.36 |
||
| replacement | |||||
|
11510A
|
11510A
01125-03081 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-03081 |
US $3.36 |
||
|
11510A
|
11510A
01125-01981 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01981 |
US $2.38 |
||
|
11510A
|
11510A
01125-01821 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01821 |
US $4.06 |
||
|
11510AA
|
11510AA
01125-02991 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-02991 |
US $4.06 |
||
|
11510AD
|
11510AD
01125-01971 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01971 |
US $3.36 |
||
| replacement | |||||
|
11510AD
|
11510AD
01125-03081 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-03081 |
US $3.36 |
||
|
11510AE
|
11510AE
01125-01981 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01981 |
US $2.38 |
||
|
11510AF
|
11510AF
01125-01821 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01821 |
US $4.06 |
||
|
11510AF
|
11510AF
01125-01821 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01821 |
US $4.06 |
||
|
11510B
|
11510B
0122500062 NUT1998-07-01 ~ ; SR20DE.MT; , |
0122500062 |
from US $1.60 |
||
|
11520A
|
11520A
01125-01881 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01881 |
US $2.38 |
||
|
11520A
|
11520A
01125-01941 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01941 |
US $4.06 |
||
|
11520A
|
11520A
0112501951 BOLT1998-07-01 ~ ; SR20DE.MT; , |
0112501951 |
US $2.38 |
||
|
11520A
|
11520A
01125-03221 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-03221 |
US $3.36 |
||
|
11520A
|
11520A
11298-0M000 Bolt1998-07-01 ~ ; SR20DE.MT; , |
11298-0M000 |
US $3.36 |
||
|
11520A
|
11520A
01125-01881 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01881 |
US $2.38 |
||
|
11520A
|
11520A
01125-02741 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-02741 |
US $2.38 |
||
|
11520A
|
11520A
01125-01921 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01921 |
US $4.06 |
||
|
11520AG
|
11520AG
01125-01881 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01881 |
US $2.38 |
||
|
11520AG
|
11520AG
01125-01881 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01881 |
US $2.38 |
||
|
11520AH
|
11520AH
01125-02741 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-02741 |
US $2.38 |
||
|
11520AJ
|
11520AJ
01125-01921 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01921 |
US $4.06 |
||
|
11530A
|
11530A
01125-01911 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01911 |
US $2.38 |
||
|
11530A
|
11530A
01125-01911 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01911 |
US $2.38 |
||
|
11530A
|
11530A
01125-01941 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01941 |
US $4.06 |
||
|
11530AA
|
11530AA
01125-01911 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01911 |
US $2.38 |
||
|
11530AB
|
11530AB
01125-01941 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01941 |
US $4.06 |
||
|
11550A
|
11550A
01125-01871 BOLT1998-07-01 ~ ; SR20DE.MT; , |
01125-01871 |
US $2.38 |
||
| replacement | |||||
|
11550A
|
11550A
01125-03051
Bolt
1998-07-01 ~ ; SR20DE.MT; , |
01125-03051 |
— | ||
