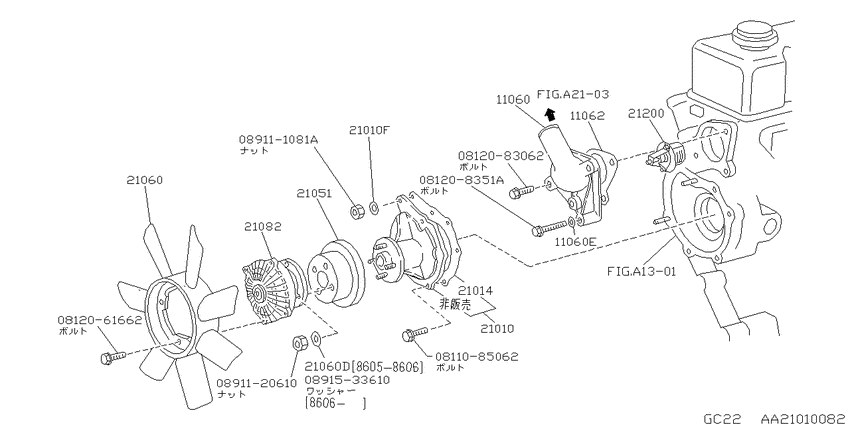

water pump & ｻ-ﾓｽﾀﾂﾄ (1986-05-01 ~ ; A15S) Diagram Nissan VANETTE
- Year
- 1988 - 1989
- Sales region
- Japan
- Engine
- A15S
- drive
- 2WD
- transmission
- AT
- grade
- DXS3
- body
- 4HV
- transmission/shift type
- R3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811085062
|
0811085062
08110-85062
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-85062 |
— | ||
|
0812061662
|
0812061662
08120-61662
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08120-61662 |
— | ||
|
0812083062
|
0812083062
08120-83062
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08120-83062 |
— | ||
|
081208351A
|
081208351A
08120-8351A BOLTHEX |
08120-8351A |
US $0.61 |
||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
from US $0.54 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.85 |
||
|
11060
|
11060
11060-H5000 Outlet-Water8605--01 ~ ; A15S |
11060-H5000 |
US $13.86 |
||
|
11060
|
11060
01311-00102 WASHER8605--01 ~ 8610--01; A15S |
01311-00102 |
US $1.68 |
||
|
11060
|
11060
01311-01051 WASHER-PLAIN8610--01 ~ ; A15S; |
01311-01051 |
US $1.68 |
||
|
11060E
|
11060E
01311-00102 WASHER8605--01 ~ 8610--01; A15S |
01311-00102 |
US $1.68 |
||
|
11060E
|
11060E
01311-01051 WASHER-PLAIN8610--01 ~ ; A15S; |
01311-01051 |
US $1.68 |
||
|
11062
|
11062
11062-18000 Gasket-Water Outlet8605--01 ~ 8906--01; A15S |
11062-18000 |
US $3.22 |
||
|
11062
|
11062
A1062H7201 Gasket-Water Outlet8906--01 ~ ; A15S |
A1062H7201 |
US $3.36 |
||
|
21010
|
21010
21010-H7227 Pump Assy-Water8605--01 ~ ; A15S; [B106] |
21010-H7227 |
US $125.16 |
||
|
21010
|
21010
09340-0010P Washer-Plain8605--01 ~ 9201--01; A15S |
09340-0010P |
US $1.68 |
||
|
21010F
|
21010F
09340-0010P Washer-Plain8605--01 ~ 9201--01; A15S |
09340-0010P |
US $1.68 |
||
|
21014
|
21014
21014-H1000
Gasket-Water Pump
8605--01 ~ 9111--01; A15S; [B106] |
21014-H1000 |
— | ||
| replacement | |||||
|
21014
|
21014
21014H1001 Gasket-Water Pump8605--01 ~ 9111--01; A15S; [B106] |
21014H1001 |
US $5.04 |
||
|
21014
|
21014
21014H1001 Gasket-Water Pump9111--01 ~ ; A15S; ｾﾝﾀｸ ｼﾖｳ |
21014H1001 |
US $5.04 |
||
|
21051
|
21051
21051H7200 Pulley-Fan & Water Pump8605--01 ~ ; A15S |
21051H7200 |
US $87.47 |
||
|
21060
|
21060
21060-W5000 Fan-Cooling8605--01 ~ ; A15S |
21060-W5000 |
US $79.39 |
||
|
21060
|
21060
01323-00041 WASHER-LOCK8605--01 ~ 8606--01; A15S |
01323-00041 |
US $1.68 |
||
|
21060D
|
21060D
01323-00041 WASHER-LOCK8605--01 ~ 8606--01; A15S |
01323-00041 |
US $1.68 |
||
|
21082
|
21082
21082G5100 Coupling Assy-Fan8605--01 ~ ; A15S; [B106] |
21082G5100 |
US $478.80 |
||
|
21200
|
21200
21200F3100 Thermostat Assy8605--01 ~ ; *A15S; %76.5C ｾﾝﾀｸ ｼﾖｳ -F316 0 ﾄ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
21200F3100 |
US $21.56 |
||
|
21200
|
21200
21200-F3160 Thermostat Assy8605--01 ~ ; *A15S; %76.5C ｾﾝﾀｸ ｼﾖｳ -F310 0 ﾄ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
21200-F3160 |
US $21.56 |
||
|
21200
|
21200
21200V0201
Thermostat Assy
8605--01 ~ ; A15S; 82C |
21200V0201 |
— | ||
|
21200
|
21200
21200V0206 Thermostat Assy8605--01 ~ ; *A15S; 88C ｶﾝﾚｲﾁ ｼﾖｳ |
21200V0206 |
US $21.78 |
||
