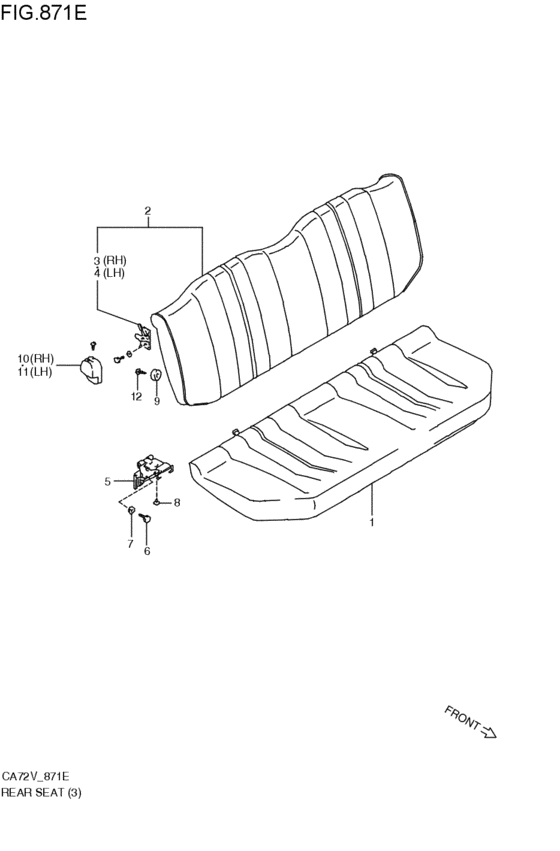

rear seat (3DR:(G,SW2,SW3); 1986-07-01~1988-07-01) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- 1986 - 1987
- Sales region
- Japan
- Engine
- 2V
- supercharge
- CARB
- transmission
- AT
- Number of doors
- 3DR
- grade
- SW2
- number of the gears
- 2AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-84101-9LZ
クッションアッシ,リヤシート
クロ/シロ/グレー; 3DR:SW2; 1986-07-01~1987-08-01 |
87101-84101-9LZ |
— | ||
|
2
|
2
87301-59A10-9LZ
バックアッシ,リヤシート
3DR:SW2; 1986-07-01~1987-08-01 |
87301-59A10-9LZ |
— | ||
|
3
|
3
87840-84122-000
ロックアッシ,シートバック,ライト
3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
87840-84122-000 |
— | ||
|
4
|
4
87940-84122-000
ロックアッシ,シートバック,レフト
3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
87940-84122-000 |
— | ||
|
5
|
5
87850-84130-000
ヒンジ,シートバック
3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
87850-84130-000 |
— | ||
|
6
|
6
01107-08166-000
Bolt m8x1.25x16
3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
01107-08166-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0816B-000 BoltBolt 3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
01500-0816B-000 |
from US $0.80 |
||
|
7
|
7
08321-21086-000
Wsherlck8.2x15.2x1.6
3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0108B-000 WASHER,LOCK3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
7
|
7
08321-0108A-000 WASHER,LOCK3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
08321-0108A-000 |
from US $0.80 |
||
|
8
|
8
02142-06167-000 SCREWScrew 3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
02142-06167-000 |
from US $0.76 |
||
|
9
|
9
09320-06015-000 CUSHION3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
09320-06015-000 |
US $18.80 |
||
|
10
|
10
87890-84120-4BS
カバー,シートバックロック,ライト(グレー)
グレ-; 3DR:(G,SW2); 1986-07-01~1988-07-01 |
87890-84120-4BS |
— | ||
|
11
|
11
87990-84120-4BS
カバー,シートバックロック,レフト(グレー)
グレ-; 3DR:(G,SW2); 1986-07-01~1988-07-01 |
87990-84120-4BS |
— | ||
|
12
|
12
03141-04165-000
Vis
3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
03141-04165-000 |
— | ||
| replacement | |||||
|
12
|
12
03141-0416A-000 SCREW3DR:(G,SW2,SW3); 1986-07-01~1988-07-01 |
03141-0416A-000 |
from US $0.80 |
||
