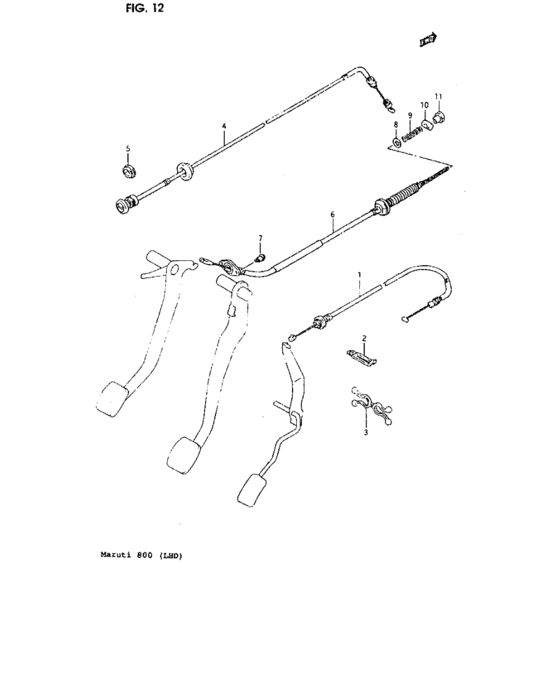

Control cable (CONTROL CABLE) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-M8430-000
Cable assy, accel
|
15910-M8430-000 |
— | ||
|
2
|
2
09404-M0840-200
Clamp, hose no.3
|
09404-M0840-200 |
— | ||
|
3
|
3
09408-M0001-000
Clip
|
09408-M0001-000 |
— | ||
|
4
|
4
15930-M8430-000
Cable assy, choke
|
15930-M8430-000 |
— | ||
|
5
|
5
15919-M8430-000
Cushion, choke cable
|
15919-M8430-000 |
— | ||
|
6
|
6
23710-84160-000
Cable assy, clutch
|
23710-84160-000 |
— | ||
| replacement | |||||
|
6
|
6
23710-84161-000 CABLE ASSY,CLUTCH |
23710-84161-000 |
US $43.79 |
||
|
7
|
7
09119-06051-000 BOLT(6X21) |
09119-06051-000 |
US $11 |
||
|
8
|
8
08322-M2106-600
Washer
|
08322-M2106-600 |
— | ||
|
9
|
9
09440-M0802-700
Spring, clutch cable
|
09440-M0802-700 |
— | ||
|
10
|
10
09209-M1300-700
Pin
|
09209-M1300-700 |
— | ||
|
11
|
11
09150-M0601-000
Nut
|
09150-M0601-000 |
— | ||
