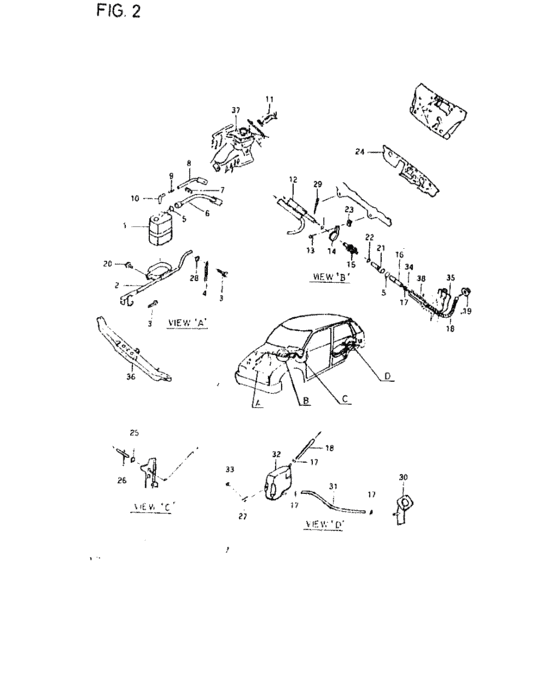

Evaporative system (EVAPORATIVE SYSTEM) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18560-N84C0-000
Canister
|
18560-N84C0-000 |
— | ||
|
2
|
2
18570-M84C0-000
Bracket comp canister
|
18570-M84C0-000 |
— | ||
|
3
|
3
01517-M0620-600
Bolt canister mounting
|
01517-M0620-600 |
— | ||
|
4
|
4
09404-M0640-500
Clamp windshield washer hose
|
09404-M0640-500 |
— | ||
|
5
|
5
09401-M1030-100
Clip
|
09401-M1030-100 |
— | ||
|
6
|
6
18561-M84C2-000
Hose 2way valve to canister
|
18561-M84C2-000 |
— | ||
|
7
|
7
09408-M0003-300
Clamp vaccum hose
|
09408-M0003-300 |
— | ||
|
8
|
8
09343-M03C0-100
Vaccum hose canister purge
|
09343-M03C0-100 |
— | ||
|
9
|
9
18563-M84C0-000
Union canister purge
|
18563-M84C0-000 |
— | ||
|
10
|
10
18562-M84C0-000
Elbow canister to carburetor
|
18562-M84C0-000 |
— | ||
|
11
|
11
18561-M84C2-000
Hose 2way valve to canister
|
18561-M84C2-000 |
— | ||
|
12
|
12
18575-M84C2-000
Protector hose
L:325 |
18575-M84C2-000 |
— | ||
|
13
|
13
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.61 |
||
|
14
|
14
09403-23401-000 CLAMP |
09403-23401-000 |
US $13.20 |
||
|
15
|
15
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
16
|
16
18564-M84C2-000
Union valve to separator
|
18564-M84C2-000 |
— | ||
|
17
|
17
09401-M1140-200
Clip
|
09401-M1140-200 |
— | ||
|
18
|
18
09344-07505-000 HOSE(7X11X3550) |
09344-07505-000 |
US $30.73 |
||
|
19
|
19
18583-M84C2-000
Grommet canister hose
|
18583-M84C2-000 |
— | ||
|
20
|
20
01517-M0625-600
Bolt
|
01517-M0625-600 |
— | ||
|
21
|
21
18562-M84C2-000
Connector valve to separator
|
18562-M84C2-000 |
— | ||
|
22
|
22
09401-M0840-100
Clip
|
09401-M0840-100 |
— | ||
|
23
|
23
09148-M0500-300
Split nut 2 way valve mtg
|
09148-M0500-300 |
— | ||
|
24
|
24
59100-M8434-000
Panel dash
|
59100-M8434-000 |
— | ||
|
25
|
25
18581-M84C0-000
Grommet hose ctr pillar
|
18581-M84C0-000 |
— | ||
|
26
|
26
09407-M1840-200
Clamp vaccum hose
|
09407-M1840-200 |
— | ||
|
27
|
27
09148-05005-000 NUT |
09148-05005-000 |
US $1.28 |
||
|
28
|
28
09160-M0601-300
Washer canister bracket
|
09160-M0601-300 |
— | ||
|
29
|
29
09407-M1440-600
Clamp hose & harness
|
09407-M1440-600 |
— | ||
|
30
|
30
89210-M8400-000
Neck fuel filler
|
89210-M8400-000 |
— | ||
|
31
|
31
09344-07505-190
Hose vapour outlet n 1
|
09344-07505-190 |
— | ||
|
32
|
32
89421-84001-000 SEPARATOR,VAPOR LIQUID |
89421-84001-000 |
US $21.90 |
||
|
33
|
33
03141-05168-000
スクリュ
|
03141-05168-000 |
— | ||
| replacements | |||||
|
33
|
33
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
33
|
33
03142-05169-000
Tapping screw
|
03142-05169-000 |
— | ||
|
34
|
34
18565-M84C2-000
Spring hose separator
|
18565-M84C2-000 |
— | ||
|
35
|
35
18566-M84C2-000
Clamp support hose
|
18566-M84C2-000 |
— | ||
|
36
|
36
57210-M84C0-000
Member front upper
|
57210-M84C0-000 |
— | ||
|
37
|
37
58310-M84C0-000
Panel fender apron rh
|
58310-M84C0-000 |
— | ||
|
38
|
38
18578-M84C0-000
Protector hose
L:700 |
18578-M84C0-000 |
— | ||
