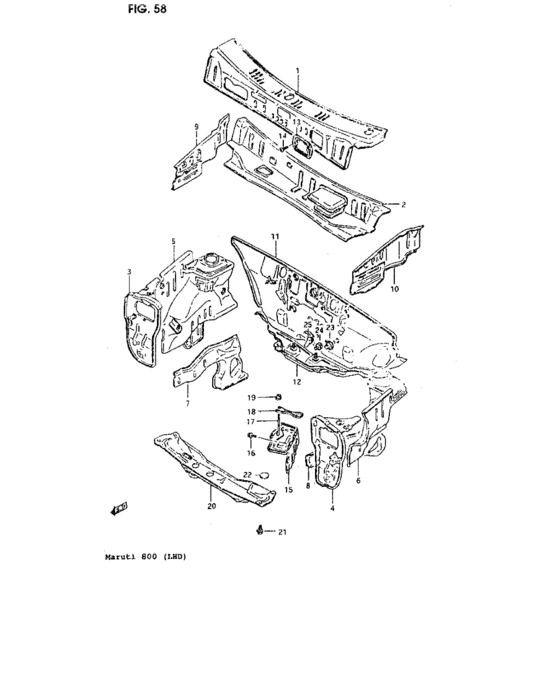

Front body panel (FRONT BODY PANEL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59700-M8430-100
Panel, cowl top
|
59700-M8430-100 |
— | ||
|
2
|
2
59310-84301-000
PANEL,DASH UPPER
|
59310-84301-000 |
— | ||
|
3
|
3
58110-M8430-000
Panel, lamp support rh
|
58110-M8430-000 |
— | ||
|
4
|
4
58160-M8430-000
Panel, lamp support lh
|
58160-M8430-000 |
— | ||
|
5
|
5
58310-M8401-100
Panel, fender apron rh
|
58310-M8401-100 |
— | ||
|
6
|
6
58410-M8400-100
Panel, fender apron lh
|
58410-M8400-100 |
— | ||
|
7
|
7
58610-M8430-000
Member, front side rh
|
58610-M8430-000 |
— | ||
|
8
|
8
58710-M8430-000
Member, front side lh
|
58710-M8430-000 |
— | ||
|
9
|
9
58331-M8400-100
Extension, apron upper rh
|
58331-M8400-100 |
— | ||
|
10
|
10
58431-M8400-100
Extension, apron upper lh
|
58431-M8400-100 |
— | ||
|
11
|
11
59100-84320-000
PANEL,DASH
|
59100-84320-000 |
— | ||
|
12
|
12
59210-M8430-000
Crossmember, dash panel
|
59210-M8430-000 |
— | ||
|
13
|
13
72411-M8400-000
Lid, wiper link service hole
|
72411-M8400-000 |
— | ||
|
14
|
14
09128-06058-000 SCREW(6X10) |
09128-06058-000 |
from US $1.28 |
||
|
15
|
15
58440-M8400-000
Bracket, battery
|
58440-M8400-000 |
— | ||
|
16
|
16
01514-M0610-600
Screw
|
01514-M0610-600 |
— | ||
|
17
|
17
63461-M7040-000
Bolt, battery no.2
|
63461-M7040-000 |
— | ||
|
18
|
18
72728-M6400-500
Band, battery
|
72728-M6400-500 |
— | ||
|
19
|
19
08316-M1605-600
Nut
|
08316-M1605-600 |
— | ||
|
20
|
20
71100-M8430-100
Cross member, front
|
71100-M8430-100 |
— | ||
|
21
|
21
09118-10029-000
ボルト,10X30
|
09118-10029-000 |
— | ||
| replacement | |||||
|
21
|
21
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.44 |
||
|
22
|
22
69511-M7000-000
Film
|
69511-M7000-000 |
— | ||
|
23
|
23
09250-M3500-000
Grommet
|
09250-M3500-000 |
— | ||
|
24
|
24
09250-M2500-300
Plug
|
09250-M2500-300 |
— | ||
|
25
|
25
74815-M8200-000
Grommet, drain
|
74815-M8200-000 |
— | ||
