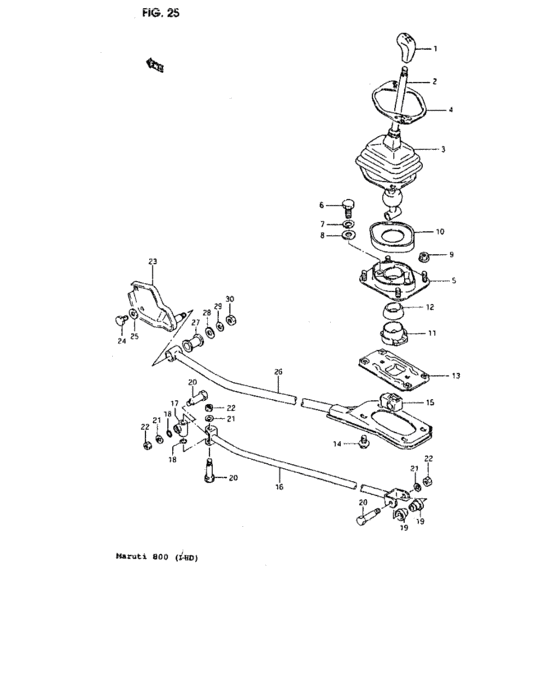

Gear sift control (GEAR SIFT CONTROL) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28113-84000-4BS
ノブ(グレー)
|
28113-84000-4BS |
— | ||
| replacement | |||||
|
1
|
1
28113-50E20-6GL KNOB,GEAR SHF CONT LVR |
28113-50E20-6GL |
US $29.61 |
||
|
2
|
2
28110-M8430-100
Lever, gear shift control
|
28110-M8430-100 |
— | ||
|
3
|
3
28135-V7800-000
Boot, lever
|
28135-V7800-000 |
— | ||
|
4
|
4
28145-M7800-000
Cover, lever boot
|
28145-M7800-000 |
— | ||
|
5
|
5
28180-M7800-200
Housing, lever
|
28180-M7800-200 |
— | ||
|
6
|
6
01107-10163-000
ボルト
|
01107-10163-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
7
|
7
08321-M2110-600
Lock washer
|
08321-M2110-600 |
— | ||
|
8
|
8
08322-M1110-600
Washer
|
08322-M1110-600 |
— | ||
|
9
|
9
08316-M1608-600
Nut
|
08316-M1608-600 |
— | ||
|
10
|
10
28189-M7800-000
Cover, housing dust seal
|
28189-M7800-000 |
— | ||
|
11
|
11
28115-78141-000 SEAT,GEAR SHIFT CONT NO.1 |
28115-78141-000 |
US $6.64 |
||
|
12
|
12
28117-78100-000 SEAT,LEVER NO.2 |
28117-78100-000 |
US $6.64 |
||
|
13
|
13
28190-M7800-300
Plate, lever guide
|
28190-M7800-300 |
— | ||
|
14
|
14
01517-M0610-600
Bolt
|
01517-M0610-600 |
— | ||
|
15
|
15
28279-M7800-100
Boot, shaft
|
28279-M7800-100 |
— | ||
|
16
|
16
28250-M8430-100
Shaft, gear shift control
|
28250-M8430-100 |
— | ||
|
17
|
17
28271-M7800-000
Joint shaft
|
28271-M7800-000 |
— | ||
|
18
|
18
09280-M0800-900
O ring
|
09280-M0800-900 |
— | ||
|
19
|
19
09305-08015-000 BUSH |
09305-08015-000 |
US $1.60 |
||
|
20
|
20
09111-M0601-700
Bolt
|
09111-M0601-700 |
— | ||
|
21
|
21
08321-M2106-600
Lock washer
|
08321-M2106-600 |
— | ||
|
22
|
22
08310-M1106-600
Nut
|
08310-M1106-600 |
— | ||
|
23
|
23
28290-M8430-000
Bracket, extension red
|
28290-M8430-000 |
— | ||
|
24
|
24
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
25
|
25
08321-M3108-600
Lock washer
|
08321-M3108-600 |
— | ||
|
26
|
26
28260-M8430-000
Rod, extension
|
28260-M8430-000 |
— | ||
|
27
|
27
09305-M1400-600
Bush
|
09305-M1400-600 |
— | ||
|
28
|
28
09160-M1007-800
Washer
|
09160-M1007-800 |
— | ||
|
29
|
29
08321-M2110-600
Lock washer
|
08321-M2110-600 |
— | ||
|
30
|
30
08310-M1110-600
Nut
|
08310-M1110-600 |
— | ||
