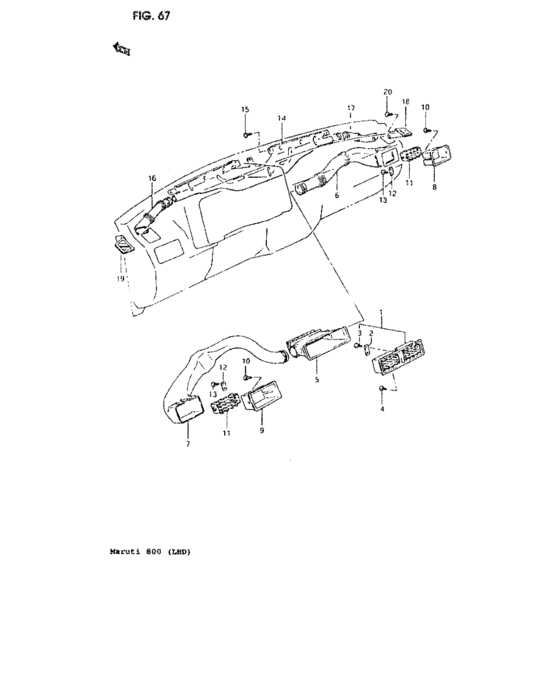

Ventillator (VENTILLATOR) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73610-M8400-000
Louver, center ventillator
|
73610-M8400-000 |
— | ||
|
2
|
2
62821-M7800-000
Holder, side ventillator
|
62821-M7800-000 |
— | ||
|
3
|
3
03541-M0410-800
Screw
|
03541-M0410-800 |
— | ||
|
4
|
4
03142-04169-000
Screw
|
03142-04169-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.80 |
||
|
5
|
5
73651-84300-000
DUCT,CTR VENT
|
73651-84300-000 |
— | ||
|
6
|
6
73652-84300-000
DUCT,SIDE VENT,R
|
73652-84300-000 |
— | ||
|
7
|
7
73653-84300-000
DUCT,SIDE VENT,L
|
73653-84300-000 |
— | ||
|
8
|
8
73631-M8400-000
Case, side louver rh
|
73631-M8400-000 |
— | ||
|
9
|
9
73641-84000-281
Case,side vent louver l
|
73641-84000-281 |
— | ||
| replacement | |||||
|
9
|
9
73641-84000-5PK CASE,SIDE VENT LOUVER,L |
73641-84000-5PK |
US $5.74 |
||
|
10
|
10
03142-04129-000
Screw
|
03142-04129-000 |
— | ||
| replacement | |||||
|
10
|
10
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
|
11
|
11
73620-M8400-000
Fin, ventillator louver
|
73620-M8400-000 |
— | ||
|
12
|
12
62821-M7800-000
Holder, side ventillator
|
62821-M7800-000 |
— | ||
|
13
|
13
03541-04108-000
Screw 4x10
|
03541-04108-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
14
|
14
73661-84300-000 NOZZLE,DEFROSTER |
73661-84300-000 |
US $85.38 |
||
|
15
|
15
03142-04169-000
Screw
|
03142-04169-000 |
— | ||
| replacement | |||||
|
15
|
15
03141-0416A-000 SCREW |
03141-0416A-000 |
from US $0.80 |
||
|
16
|
16
73696-M8400-000
Hose, side demister rh
|
73696-M8400-000 |
— | ||
|
17
|
17
73697-M8400-000
Hose, side demister lh
|
73697-M8400-000 |
— | ||
|
18
|
18
73680-M8401-000
Nozzle, demister rh
|
73680-M8401-000 |
— | ||
|
19
|
19
73690-M8401-000
Nozzle, demister lh
|
73690-M8401-000 |
— | ||
|
20
|
20
03142-04129-000
Screw
|
03142-04129-000 |
— | ||
| replacement | |||||
|
20
|
20
03142-0412B-000 SCREW |
03142-0412B-000 |
from US $0.80 |
||
