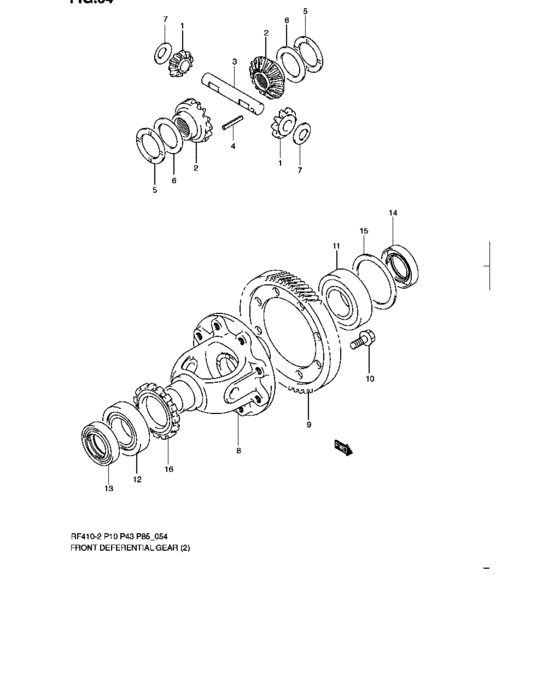

Front diff gear (AT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Middle east
- transmission
- AT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL |
27331-78FJ1-000 |
US $36.43 |
||
|
2
|
2
27341-82001-000
Gear,differential
|
27341-82001-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-76G12-000 GEAR,DIFF |
27341-76G12-000 |
from US $50.65 |
||
|
3
|
3
27351-62B00-000 SHAFT,DIFF SIDE PINION |
27351-62B00-000 |
US $17.49 |
||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36) |
09205-05007-000 |
US $1.76 |
||
|
5
|
5
27361-62B00-000 WASHER,DIFF SIDE NO.2 |
27361-62B00-000 |
US $11.44 |
||
|
6
|
6
09160-35002-000 WASHER(35X46X1) |
09160-35002-000 |
from US $1.35 |
||
|
6
|
6
09160-35003-000 WASHER(35X46X1.1) |
09160-35003-000 |
from US $3.76 |
||
|
6
|
6
09160-35004-000 WASHER(35X46X1.2) |
09160-35004-000 |
from US $1.69 |
||
|
6
|
6
09160-35006-000 WASHER(35X46X0.9) |
09160-35006-000 |
from US $1.58 |
||
|
6
|
6
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) |
09160-35008-000 |
from US $3.76 |
||
|
6
|
6
09160-35009-000 WASHER(35X46X1.05) |
09160-35009-000 |
from US $3.76 |
||
|
6
|
6
09160-35010-000 WASHER(35X46X1.15) |
09160-35010-000 |
from US $3.62 |
||
|
7
|
7
09164-15003-000 WASHER |
09164-15003-000 |
US $11.80 |
||
|
8
|
8
27411-76G10-000
CASE,DIFF
|
27411-76G10-000 |
— | ||
|
9
|
9
27511-78G30-000
GEAR,FINAL
|
27511-78G30-000 |
— | ||
|
10
|
10
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch |
09103-10189-000 |
from US $2.40 |
||
|
11
|
11
09262-35058-000 BEARING(35X72X17) |
09262-35058-000 |
from US $18.40 |
||
|
12
|
12
09262-35061-000 BEARING(35X62X14) |
09262-35061-000 |
US $31.17 |
||
|
13
|
13
27431-73H10-000 SEAL,OIL |
27431-73H10-000 |
from US $9.70 |
||
|
14
|
14
27431-80F00-000
Seal, diff side oil lh
|
27431-80F00-000 |
— | ||
| replacement | |||||
|
14
|
14
27431-73H30-000 SEAL,OIL |
27431-73H30-000 |
from US $9.70 |
||
|
15
|
15
27441-56E00-040 SHIM,DIFF SIDE |
27441-56E00-040 |
US $5.30 |
||
|
15
|
15
27441-56E00-050 SHIM,DIFF SIDE |
27441-56E00-050 |
US $5.30 |
||
|
15
|
15
27441-56E00-060 SHIM,DIFF SIDE |
27441-56E00-060 |
US $5.30 |
||
|
15
|
15
27441-56E00-070 SHIM,DIFF SIDE |
27441-56E00-070 |
US $5.30 |
||
|
16
|
16
26121-76G10-000 RING,EXCITER T:8 ID:45 |
26121-76G10-000 |
US $25.21 |
||
