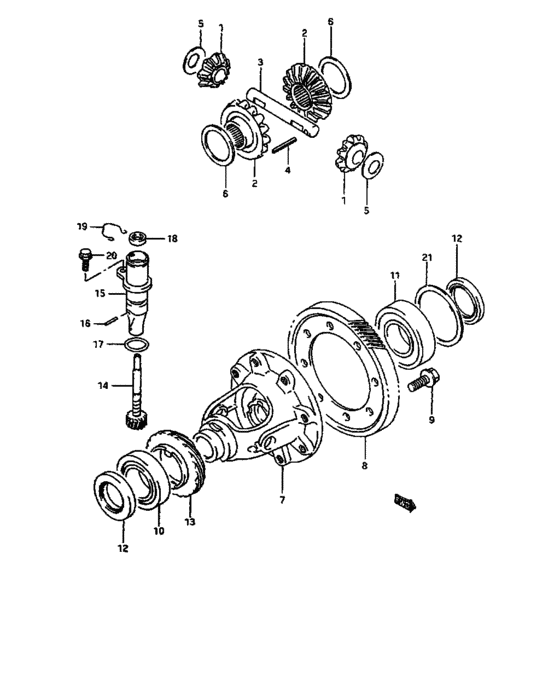

Front diff gear (AT) Diagram Suzuki ALTO/A-STAR/CELERIO
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-78510-000
ピニオン,ディファレンシャル
|
27331-78510-000 |
— | ||
| replacement | |||||
|
1
|
1
27331-78511-000 PINION,DIFFERENTIAL |
27331-78511-000 |
US $36.06 |
||
|
1
|
1
27331-82000-000
ピニオン,ディファレンシャル
HA11S-679372~,JSAEHA11S00110326~ |
27331-82000-000 |
— | ||
| replacement | |||||
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIALHA11S-679372~,JSAEHA11S00110326~ |
27331-78FJ1-000 |
US $36.43 |
||
|
2
|
2
27341-70B01-000
GEAR,FR DIFF
|
27341-70B01-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-52R00-000 GEAR,DIFFERENTIAL |
27341-52R00-000 |
US $57.78 |
||
|
2
|
2
27341-74B00-000
ギヤ,ディファレンシャル
HA11S-679372~,JSAEHA11S00110326~ |
27341-74B00-000 |
— | ||
| replacement | |||||
|
2
|
2
27341-74B01-000 GEAR,FR DIFFHA11S-679372~,JSAEHA11S00110326~ |
27341-74B01-000 |
US $61.09 |
||
|
3
|
3
27351-70B21-000
SHAFT,DIFF SIDE PINION
|
27351-70B21-000 |
— | ||
|
3
|
3
27351-70B30-000
SHAFT,DIFF SIDE PINION
HA11S-679372~,JSAEHA11S00110326~ |
27351-70B30-000 |
— | ||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36) |
09205-05007-000 |
US $1.76 |
||
|
5
|
5
09164-15005-000 WASHER |
09164-15005-000 |
US $11.80 |
||
|
6
|
6
09160-29014-000 WASHER(29X40X0.9) |
09160-29014-000 |
US $33.10 |
||
|
6
|
6
09160-29012-000 WASHER(29X40X1)Washer (t:1.0) |
09160-29012-000 |
from US $2.99 |
||
|
6
|
6
09160-29015-000 WASHER(29X40X1.1) |
09160-29015-000 |
US $33.10 |
||
|
7
|
7
27411-61D00-000
ケース,ディファレンシャル
~27411-61D10,USED WITH 27331-82000(2PCS),27341-74B00(2PCS),AND 27351-70830 |
27411-61D00-000 |
— | ||
| replacements | |||||
|
7
|
7
27331-78FJ1-000 PINION,DIFFERENTIAL~27411-61D10,USED WITH 27331-82000(2PCS),27341-74B00(2PCS),AND 27351-70830 |
27331-78FJ1-000 |
US $36.43 |
||
|
7
|
7
27341-74B01-000 GEAR,FR DIFF~27411-61D10,USED WITH 27331-82000(2PCS),27341-74B00(2PCS),AND 27351-70830 |
27341-74B01-000 |
US $61.09 |
||
|
7
|
7
27351-70B30-000
SHAFT,DIFF SIDE PINION
~27411-61D10,USED WITH 27331-82000(2PCS),27341-74B00(2PCS),AND 27351-70830 |
27351-70B30-000 |
— | ||
|
7
|
7
27361-61D00-000
ワッシャ,サイドギヤ
~27411-61D10,USED WITH 27331-82000(2PCS),27341-74B00(2PCS),AND 27351-70830 |
27361-61D00-000 |
— | ||
|
7
|
7
27411-61D10-000
ケース,ディファレンシャル
HA11S-679372~,JSAEHA11S00110326~ |
27411-61D10-000 |
— | ||
| replacement | |||||
|
7
|
7
27361-61D00-000
ワッシャ,サイドギヤ
HA11S-679372~,JSAEHA11S00110326~ |
27361-61D00-000 |
— | ||
|
8
|
8
27511-61D10-000
ギヤ,ファイナル
|
27511-61D10-000 |
— | ||
|
8
|
8
27511-61D11-000
GEAR,FINAL
HA11S-650001~,JSAEHA11S00110001~ |
27511-61D11-000 |
— | ||
|
9
|
9
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch |
09103-10189-000 |
from US $2.40 |
||
|
10
|
10
09262-30083-000 BEARING(30X55X13) |
09262-30083-000 |
US $24.80 |
||
|
11
|
11
08113-62060-000 BEARINGBearing, drive shaft rh |
08113-62060-000 |
from US $19.87 |
||
|
12
|
12
27611-71B70-000 SEAL,DIFF SIDE OIL |
27611-71B70-000 |
US $15.86 |
||
|
13
|
13
26121-70B00-000
GEAR,SPDOM DRIVE
|
26121-70B00-000 |
— | ||
|
14
|
14
26131-73B02-000 GEAR,SPDOM DRIVEN |
26131-73B02-000 |
US $69.55 |
||
|
15
|
15
29431-60B02-000
ケース,スピードメータドリブンギヤ
|
29431-60B02-000 |
— | ||
| replacement | |||||
|
15
|
15
29431-74C00-000 CASE,SPDOM DRIVEN GEAR |
29431-74C00-000 |
US $37.17 |
||
|
16
|
16
09205-03012-000 PIN,SPRING(3X16)Pin, gear |
09205-03012-000 |
from US $1.82 |
||
|
17
|
17
09280-16012-000 O RING(D:3.6,ID:15.4) |
09280-16012-000 |
US $21.70 |
||
|
18
|
18
09282-08001-000 SEAL,OIL(8X16X5) |
09282-08001-000 |
US $2.31 |
||
|
19
|
19
26191-61D01-000
クリップ,スピードメータケース
|
26191-61D01-000 |
— | ||
| replacement | |||||
|
19
|
19
26191-61D0V-000 CLIP,SPEEDOMETER CASE |
26191-61D0V-000 |
US $2.61 |
||
|
20
|
20
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
20
|
20
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.81 |
||
|
21
|
21
09170-50601-040
Shim,50x60x0.4
|
09170-50601-040 |
— | ||
|
21
|
21
09170-50601-050
Shim,50x60x0.5
|
09170-50601-050 |
— | ||
|
21
|
21
09170-50601-060
Shim,50x60x0.6
|
09170-50601-060 |
— | ||
|
21
|
21
09170-50601-070
SHIM(50X60X0.7)
|
09170-50601-070 |
— | ||
