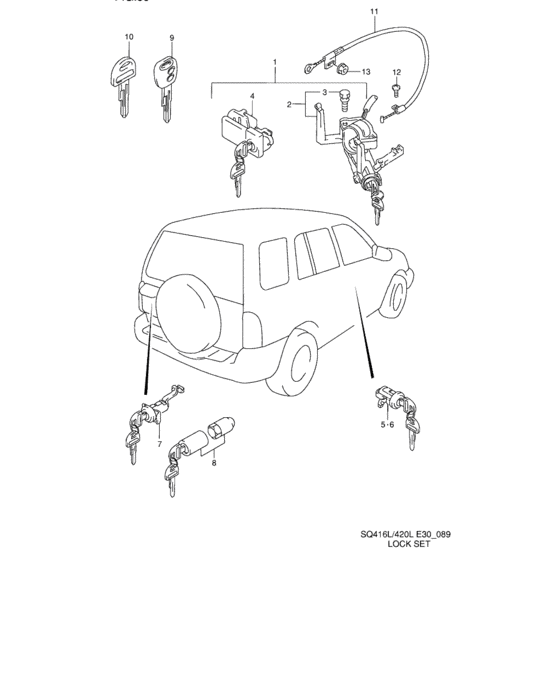

Lock set (LOCK SET) Diagram Suzuki ESCUDO
- Year
- -
- Sales region
- Asia
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37103-60890-T01
Lock set
AT |
37103-60890-T01 |
— | ||
| replacement | |||||
|
1
|
1
37103-60891-T01
LOCK SET
AT |
37103-60891-T01 |
— | ||
|
2
|
2
37104-60820-000
Lock assy, steering
AT |
37104-60820-000 |
— | ||
| replacement | |||||
|
2
|
2
37104-60821-000 LOCK ASSY,STEERINGAT |
37104-60821-000 |
US $160.45 |
||
|
3
|
3
37152-84100-000
Bolt
|
37152-84100-000 |
— | ||
| replacement | |||||
|
3
|
3
37152-84G00-000 BOLT, STRG LOCK |
37152-84G00-000 |
US $2.98 |
||
|
4
|
4
73430-60870-T01 LOCK,GLOVE BOX |
73430-60870-T01 |
from US $63.95 |
||
|
5
|
5
82201-60860-000 CYLINDER,FR DR LOCKCylinder, front door lock lh |
82201-60860-000 |
US $95 |
||
|
6
|
6
82201-60850-000 CYLINDER,FR DR LOCKCylinder, front door lock rh |
82201-60850-000 |
US $95 |
||
|
7
|
7
82500-65810-000 CYLINDER,SET BACK DR LOCK |
82500-65810-000 |
US $83.20 |
||
|
8
|
8
83900-60820-000 KEY ASSY,SPARE TIRE NUT LOCK |
83900-60820-000 |
US $120.56 |
||
|
9
|
9
37180-65D00-000 KEY,BLANK TRANSMITTER,KEY LESSOPT |
37180-65D00-000 |
US $96.42 |
||
|
10
|
10
37145-60A00-000 KEY,BLANKOPT |
37145-60A00-000 |
US $24 |
||
|
11
|
11
28551-65D10-000 CABLE,KEY INTER LOCKAT |
28551-65D10-000 |
US $23.55 |
||
|
12
|
12
09125-05061-000 SCREW(5X8)AT |
09125-05061-000 |
US $9.60 |
||
|
13
|
13
08316-10083-000
Nut
AT |
08316-10083-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUTAT |
08316-1008B-000 |
from US $0.76 |
||
