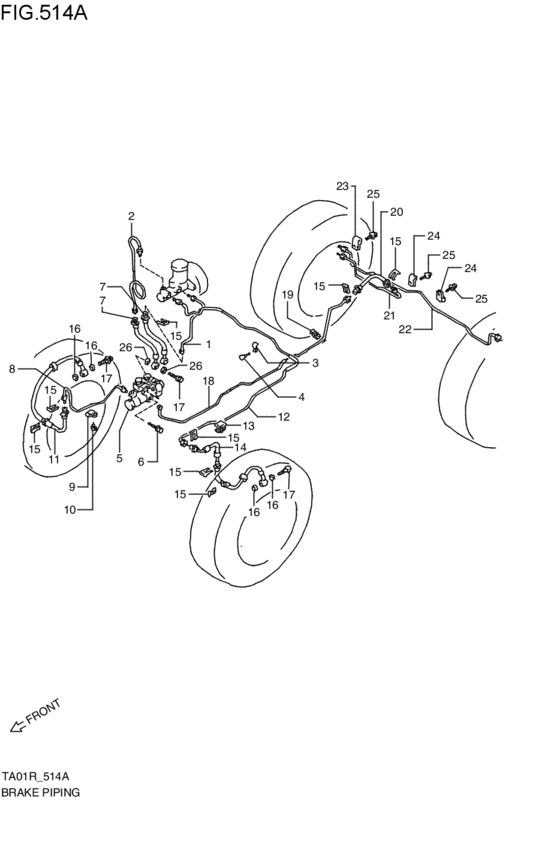

brakes piping (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-60A00-000
パイプ,マスタプライマリツージョイント
1988-05-01~1990-07-01 |
51410-60A00-000 |
— | ||
|
2
|
2
51520-60A01-000
パイプ,マスタセカンダリツージョイント
1988-05-01~1990-07-01 |
51520-60A01-000 |
— | ||
|
3
|
3
09403-06402-000
Clamp, pipe
1988-05-01~1990-07-01 |
09403-06402-000 |
— | ||
| replacement | |||||
|
3
|
3
09403-06401-000 CLAMP1988-05-01~1990-07-01 |
09403-06401-000 |
from US $2.08 |
||
|
4
|
4
01137-06123-000
ボルト
1988-05-01~1990-07-01 |
01137-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0612A-000 BOLTBolt 1988-05-01~1990-07-01 |
01570-0612A-000 |
from US $0.80 |
||
|
4
|
4
01570-0612B-000 BOLTBolt, upper 1988-05-01~1990-07-01 |
01570-0612B-000 |
US $0.80 |
||
|
5
|
5
51920-60A00-000
バルブアッシ,P&B
1988-05-01~1990-07-01 |
51920-60A00-000 |
— | ||
|
6
|
6
01517-06403-000
ボルト
1988-05-01~1990-07-01 |
01517-06403-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0640B-000 Bolt1988-05-01~1990-07-01 |
01550-0640B-000 |
from US $0.96 |
||
|
7
|
7
51570-60A30-000 HOSE,MA CYL FLEXIBLE1988-05-01~1990-07-01 |
51570-60A30-000 |
US $14.45 |
||
|
8
|
8
51420-60A00-000
パイプ,ジョイントツーフロントブレーキホース
1988-05-01~1990-07-01 |
51420-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
51420-77E10-000 PIPE,JOINT TO FR BK HOSE1988-05-01~1990-07-01 |
51420-77E10-000 |
US $30.40 |
||
|
9
|
9
09403-06402-000
Clamp, pipe
1988-05-01~1990-07-01 |
09403-06402-000 |
— | ||
| replacement | |||||
|
9
|
9
09403-06401-000 CLAMP1988-05-01~1990-07-01 |
09403-06401-000 |
from US $2.08 |
||
|
10
|
10
01137-06123-000
ボルト
1988-05-01~1990-07-01 |
01137-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01570-0612A-000 BOLTBolt 1988-05-01~1990-07-01 |
01570-0612A-000 |
from US $0.80 |
||
|
10
|
10
01570-0612B-000 BOLTBolt, upper 1988-05-01~1990-07-01 |
01570-0612B-000 |
US $0.80 |
||
|
11
|
11
51540-60A30-000
ホース,フロントブレーキフレキシブル,ライト
1988-05-01~1990-07-01 |
51540-60A30-000 |
— | ||
| replacement | |||||
|
11
|
11
51540-60A31-000 HOSE,FR BRAKE FLEXIBLE,R1988-05-01~1990-07-01 |
51540-60A31-000 |
US $29.65 |
||
|
12
|
12
51430-60A00-000
パイプ,マスタツーフロントレフトブレーキホース
1988-05-01~1990-07-01 |
51430-60A00-000 |
— | ||
|
13
|
13
51435-60A00-000 CLAMP,BRAKE PIPE SIDE1988-05-01~1990-07-01 |
51435-60A00-000 |
US $2.24 |
||
|
14
|
14
51550-60A30-000
ホース,フロントブレーキフレキシブル,レフト
1988-05-01~1990-07-01 |
51550-60A30-000 |
— | ||
| replacement | |||||
|
14
|
14
51550-60A31-000 HOSE,FR BRAKE FLEXIBLE,L1988-05-01~1990-07-01 |
51550-60A31-000 |
US $110.03 |
||
|
15
|
15
09383-13001-000 E RING1988-05-01~1990-07-01 |
09383-13001-000 |
from US $1.52 |
||
| replacement | |||||
|
15
|
15
09383-13003-000 E-RING1988-05-01~1990-07-01 |
09383-13003-000 |
from US $0.92 |
||
|
16
|
16
09161-10009-000 WASHER(10X15X1.5)Lock washer 1988-05-01~1990-07-01 |
09161-10009-000 |
from US $0.86 |
||
|
17
|
17
09360-10026-000 UNION BOLT1988-05-01~1990-07-01 |
09360-10026-000 |
US $2.08 |
||
|
18
|
18
51460-60A20-000
パイプ,バルブツーリヤブレーキホース
1988-05-01~1990-07-01 |
51460-60A20-000 |
— | ||
|
19
|
19
51465-60A00-000 CLAMP,BRAKE PIPE FRAME1988-05-01~1990-07-01 |
51465-60A00-000 |
US $2.29 |
||
|
20
|
20
51560-83031-000 HOSE,RR BRAKE FLEXIBLE1988-05-01~1990-07-01 |
51560-83031-000 |
US $16.72 |
||
|
21
|
21
51470-60A00-000
PIPE,RR BK HOSE TO R BK ASSY
1988-05-01~1990-07-01 |
51470-60A00-000 |
— | ||
|
22
|
22
51480-60A00-000 PIPE,R BK ASSY TO L BK ASSY1988-05-01~1990-07-01 |
51480-60A00-000 |
US $74.40 |
||
|
23
|
23
09403-06404-000 CLAMP1988-05-01~1990-07-01 |
09403-06404-000 |
US $16.20 |
||
|
24
|
24
09403-06401-000 CLAMP1988-05-01~1990-07-01 |
09403-06401-000 |
from US $2.08 |
||
|
25
|
25
09132-06006-000 SCREW(6X12)1988-05-01~1990-07-01 |
09132-06006-000 |
US $1.60 |
||
|
26
|
26
09161-10011-000
ガスケット,10X15X1.5
1988-05-01~1990-07-01 |
09161-10011-000 |
— | ||
| replacement | |||||
|
26
|
26
09161-10009-000 WASHER(10X15X1.5)Lock washer 1988-05-01~1990-07-01 |
09161-10009-000 |
from US $0.86 |
||
