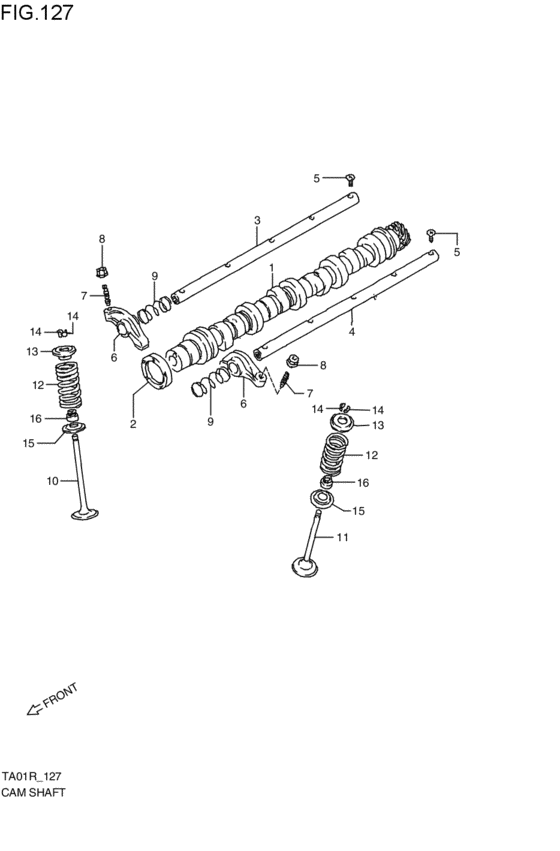

camshaft / valve (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-60A00-000
カムシャフト
1988-05-01~1990-07-01 |
12710-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
12710-60A01-000 CAMSHAFT1988-05-01~1990-07-01 |
12710-60A01-000 |
US $397.44 |
||
|
2
|
2
09283-32022-000
オイルシール,32X47X8
1988-05-01~1990-07-01 |
09283-32022-000 |
— | ||
| replacement | |||||
|
2
|
2
09283-32042-000 SEAL,OIL(32X47X6)1988-05-01~1990-07-01 |
09283-32042-000 |
from US $6.28 |
||
|
3
|
3
12860-82600-000 SHAFT,INTK ROCKER ARMShaft, intake rocker arm 1988-05-01~1990-07-01 |
12860-82600-000 |
US $88.16 |
||
|
4
|
4
12870-82600-000 SHAFT,EXH ROCKER ARMShaft, exhaust rocker arm 1988-05-01~1990-07-01 |
12870-82600-000 |
US $66.88 |
||
|
5
|
5
02122-06108-000
Screw 6 x 10
1988-05-01~1990-07-01 |
02122-06108-000 |
— | ||
| replacement | |||||
|
5
|
5
02122-0610A-000 SCREW1988-05-01~1990-07-01 |
02122-0610A-000 |
from US $0.80 |
||
|
6
|
6
12841-60A01-000
アーム,バルブロッカ
1988-05-01~1990-07-01 |
12841-60A01-000 |
— | ||
| replacement | |||||
|
6
|
6
12841-60A30-000 ARM,VALVE ROCKER1988-05-01~1990-07-01 |
12841-60A30-000 |
US $60.80 |
||
|
7
|
7
12848-82000-000 SCREW,VALVE ADJUSTINGScrew, valve adjusting 1988-05-01~1990-07-01 |
12848-82000-000 |
US $9.44 |
||
|
8
|
8
09159-07004-000 NUTNut 1988-05-01~1990-07-01 |
09159-07004-000 |
from US $3.06 |
||
|
9
|
9
12891-82001-000
スプリング,ロッカアーム
1988-05-01~1990-07-01 |
12891-82001-000 |
— | ||
| replacement | |||||
|
9
|
9
12891-51G00-000 SPRING,ROCKER ARMSpring, rocket arm 1988-05-01~1990-07-01 |
12891-51G00-000 |
US $1.60 |
||
|
10
|
10
12911-60A10-000 Valve,intake1988-05-01~1990-07-01 |
12911-60A10-000 |
US $25.21 |
||
|
11
|
11
12915-60A00-000
バルブ,エキゾースト
1988-05-01~1990-07-01 |
12915-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
12915-60A50-000 Valve,exhaust1988-05-01~1990-07-01 |
12915-60A50-000 |
US $56.67 |
||
|
12
|
12
12921-60A00-000 SPRING,VALVESpring, valve NHK; 1988-05-01~1990-07-01 |
12921-60A00-000 |
US $15.20 |
||
|
13
|
13
12931-82000-000
リテーナ,バルブスプリング
1988-05-01~1990-07-01 |
12931-82000-000 |
— | ||
| replacement | |||||
|
13
|
13
12900-82811-000 RETAINER SET,COTTER VALVE1988-05-01~1990-07-01 |
12900-82811-000 |
US $6.88 |
||
|
14
|
14
12932-82000-000 COTTER,VALVE1988-05-01~1990-07-01 |
12932-82000-000 |
from US $1.52 |
||
|
15
|
15
12933-73000-000 SEAT,VALVE SPRINGSeat, valve spring 1988-05-01~1990-07-01 |
12933-73000-000 |
US $1.60 |
||
|
16
|
16
09289-07005-000
オイルシール
1988-05-01~1990-07-01 |
09289-07005-000 |
— | ||
| replacement | |||||
|
16
|
16
09289-07007-000 SEAL,OIL(6.5X14.5X9.7)Seal 1988-05-01~1990-07-01 |
09289-07007-000 |
from US $3.62 |
||
