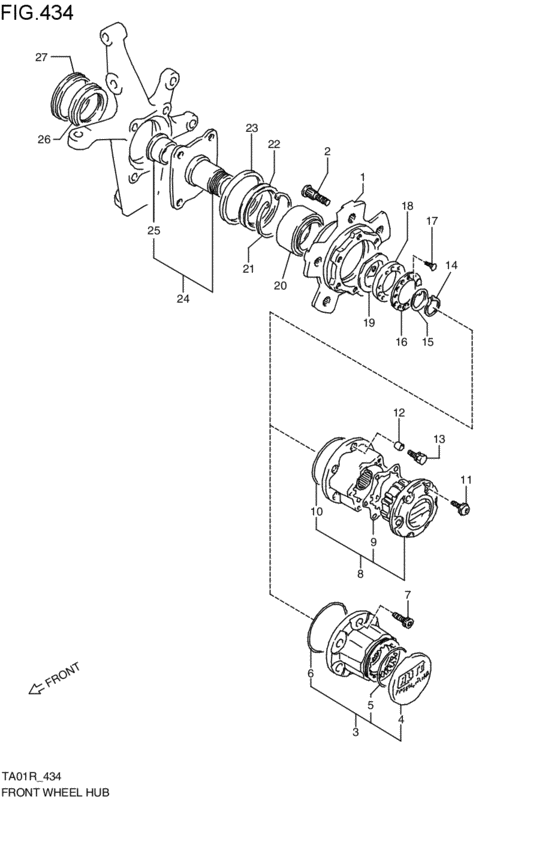

front wheel hub (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43421-60A00-000
ハブ,フロントホイール
1988-05-01~1990-07-01 |
43421-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
43420-50820-000 HUB SET,FR WHL1988-05-01~1990-07-01 |
43420-50820-000 |
US $267.52 |
||
|
2
|
2
09119-12008-000
ボルト,12X38
1988-05-01~1990-07-01 |
09119-12008-000 |
— | ||
| replacement | |||||
|
2
|
2
09119-12012-000 BOLT(12X38)1988-05-01~1990-07-01 |
09119-12012-000 |
from US $0.99 |
||
|
8
|
8
43801-60A00-000
ハブセット,ホイールロッキング
V; 1988-05-01~1990-07-01 |
43801-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
43800-60812-000 WHEEL LOCKING HUB SET (MANUAL)V; 1988-05-01~1990-07-01 |
43800-60812-000 |
US $516.80 |
||
|
9
|
9
43813-60A00-000 GASKET,LOCKING HUB COVERV; 1988-05-01~1990-07-01 |
43813-60A00-000 |
US $2.88 |
||
|
10
|
10
43838-60A00-000 O-RINGV; 1988-05-01~1990-07-01 |
43838-60A00-000 |
US $8.64 |
||
|
11
|
11
43814-60A00-000
ボルト,ロッキングハブカバー
V; 1988-05-01~1988-06-01 |
43814-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
43814-60A01-000 BOLT,LOCKING HUB COVERV; 1988-05-01~1988-06-01 |
43814-60A01-000 |
US $2.29 |
||
|
11
|
11
43814-60A01-000 BOLT,LOCKING HUB COVERV; 1988-06-01~1990-06-01 |
43814-60A01-000 |
US $2.29 |
||
|
12
|
12
43841-80001-000 WASHER,LOCKING HUB CONEV; 1988-05-01~1990-07-01 |
43841-80001-000 |
US $2.40 |
||
|
13
|
13
01147-08253-000
ボルト
1988-05-01~1990-07-01 |
01147-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0825A-000 BOLT1988-05-01~1990-07-01 |
01570-0825A-000 |
from US $1.06 |
||
|
13
|
13
01570-0825B-000 BOLT1988-05-01~1990-07-01 |
01570-0825B-000 |
US $1.12 |
||
|
14
|
14
09380-26004-000 CIRCLIP1988-05-01~1990-07-01 |
09380-26004-000 |
from US $1.67 |
||
| replacement | |||||
|
14
|
14
94412-31J01-YMC Cowling,body Lower1988-05-01~1990-07-01 |
94412-31J01-YMC |
US $172.48 |
||
|
15
|
15
44182-60A01-000 WASHER,FR SPINDLE THRUST1988-05-01~1990-07-01 |
44182-60A01-000 |
US $2.56 |
||
|
16
|
16
43466-60A00-000 WASHER,FR WHEEL BRG LOCK1988-05-01~1990-07-01 |
43466-60A00-000 |
from US $10.69 |
||
|
17
|
17
02122-04086-000
スクリュ
1988-05-01~1990-07-01 |
02122-04086-000 |
— | ||
| replacement | |||||
|
17
|
17
02122-0408A-000 SCREW1988-05-01~1990-07-01 |
02122-0408A-000 |
from US $0.76 |
||
|
18
|
18
43461-60A01-000 NUT,FR WHL BRG LOCK1988-05-01~1990-07-01 |
43461-60A01-000 |
from US $30.04 |
||
|
19
|
19
43465-60A00-000 WASHER,FR WHEEL BRG1988-05-01~1990-07-01 |
43465-60A00-000 |
from US $1.35 |
||
|
20
|
20
09269-41001-000 BEARING(41X68X40)1988-05-01~1990-07-01 |
09269-41001-000 |
from US $108.50 |
||
|
21
|
21
43486-60A10-000
サークリップ,フロントホイールベアリング
1988-05-01~1990-07-01 |
43486-60A10-000 |
— | ||
| replacement | |||||
|
21
|
21
09381-68001-000 CIRCLIP1988-05-01~1990-07-01 |
09381-68001-000 |
from US $2.72 |
||
|
22
|
22
09283-54001-000 SEAL,OIL(54X69X7)1988-05-01~1990-07-01 |
09283-54001-000 |
from US $7.18 |
||
|
23
|
23
09286-75001-000 SEAL,OIL(75X83X4)1988-05-01~1990-07-01 |
09286-75001-000 |
from US $10.91 |
||
|
24
|
24
43440-60A02-000
スピンドル,フロントホイール
1988-05-01~1990-07-01 |
43440-60A02-000 |
— | ||
| replacement | |||||
|
24
|
24
43440-60A03-000
SPINDLE,FR WHEEL
1988-05-01~1990-07-01 |
43440-60A03-000 |
— | ||
|
25
|
25
43445-60A10-000
ブッシング,フロントスピンドル
1988-05-01~1990-07-01 |
43445-60A10-000 |
— | ||
| replacement | |||||
|
25
|
25
43445-60A11-000 BUSHING,FR SPINDLE1988-05-01~1990-07-01 |
43445-60A11-000 |
from US $10.82 |
||
|
26
|
26
09289-48004-000 SEAL,OIL(48X70X17)1988-05-01~1990-07-01 |
09289-48004-000 |
from US $11.66 |
||
|
27
|
27
09286-64001-000 SEAL,OIL(64X76X7)1988-05-01~1990-07-01 |
09286-64001-000 |
from US $9.74 |
||
