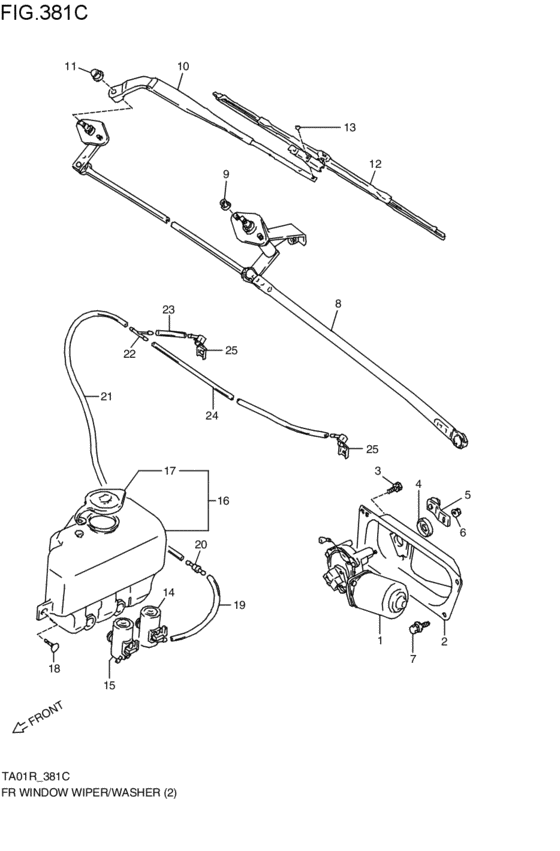

front wind windshield wiper / washer (ハードトップ; V,W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38110-60A20-000
モータアッシ,ワイパ
V,W; 1988-05-01~1990-07-01 |
38110-60A20-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-60A20-000
MOTOR&BRACKET ASSY,WIPER
V,W; 1988-05-01~1990-07-01 |
38101-60A20-000 |
— | ||
|
2
|
2
38252-60A20-000
ブラケット,ワイパモータ
V,W; 1988-05-01~1990-07-01 |
38252-60A20-000 |
— | ||
|
3
|
3
01134-06126-000
Bolt
V,W; 1988-05-01~1990-07-01 |
01134-06126-000 |
— | ||
| replacements | |||||
|
3
|
3
01570-0612B-000 BOLTBolt, upper V,W; 1988-05-01~1990-07-01 |
01570-0612B-000 |
US $0.80 |
||
|
3
|
3
01570-0612A-000 BOLTBolt V,W; 1988-05-01~1990-07-01 |
01570-0612A-000 |
from US $0.80 |
||
|
4
|
4
38147-84030-000 SEAL,WIPER MOTORV,W; 1988-05-01~1990-07-01 |
38147-84030-000 |
US $1.66 |
||
|
5
|
5
38174-60A20-000
アーム,ワイパモータ
V,W; 1988-05-01~1990-07-01 |
38174-60A20-000 |
— | ||
|
6
|
6
08316-16066-000
Nut
V,W; 1988-05-01~1990-07-01 |
08316-16066-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUTV,W; 1988-05-01~1990-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
09115-06001-000
Bolt, lh
V,W; 1988-05-01~1990-07-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16)V,W; 1988-05-01~1990-07-01 |
09115-06005-000 |
US $1.28 |
||
|
8
|
8
38102-60A20-000
LINK ASSY,WIPER
V,W; 1988-05-01~1990-07-01 |
38102-60A20-000 |
— | ||
|
9
|
9
08316-16063-000 NutV,W; 1988-05-01~1990-07-01 |
08316-16063-000 |
US $2.91 |
||
| replacement | |||||
|
9
|
9
08316-1006B-000 NUTV,W; 1988-05-01~1990-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
10
|
10
38310-60A20-000
ARM ASSY,WIPER
V,W; 1988-05-01~1990-07-01 |
38310-60A20-000 |
— | ||
|
11
|
11
08313-21083-000
ナット
V,W; 1988-05-01~1990-07-01 |
08313-21083-000 |
— | ||
| replacement | |||||
|
11
|
11
08313-1008B-000 NUTV,W; 1988-05-01~1990-07-01 |
08313-1008B-000 |
from US $0.96 |
||
|
12
|
12
38340-84010-000
BLADE ASSY,WIPER
V,W; 1988-05-01~1990-07-01 |
38340-84010-000 |
— | ||
|
13
|
13
38319-75000-000 SCREW,WIPER BLADEV,W; 1988-05-01~1990-07-01 |
38319-75000-000 |
US $2.17 |
||
|
14
|
14
38410-60A10-000
ポンプアッシ,ウォッシャ
V,W; 1988-05-01~1990-07-01 |
38410-60A10-000 |
— | ||
| replacement | |||||
|
14
|
14
38410-70B20-000 PUMP ASSY,WASHER FRV,W; 1988-05-01~1990-07-01 |
38410-70B20-000 |
US $88.32 |
||
|
15
|
15
38410-61A10-000
ポンプアッシ,ウォッシャ
V,W; 1988-05-01~1990-07-01 |
38410-61A10-000 |
— | ||
| replacement | |||||
|
15
|
15
38410-70B10-000 PUMP ASSY,WASHER RRV,W; 1988-05-01~1990-07-01 |
38410-70B10-000 |
US $115.92 |
||
|
16
|
16
38450-61A10-000
TANK ASSY,WASHER
V,W; 1988-05-01~1990-07-01 |
38450-61A10-000 |
— | ||
|
17
|
17
38452-60A10-000 CAP,WASHER TANKV,W; 1988-05-01~1990-07-01 |
38452-60A10-000 |
US $2.65 |
||
|
18
|
18
09125-06057-000
スクリュ
V,W; 1988-05-01~1990-07-01 |
09125-06057-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0616A-000 SCREWV,W; 1988-05-01~1990-07-01 |
02142-0616A-000 |
from US $0.76 |
||
|
19
|
19
38491-70B00-000
ホース,ウォッシャ(L:850)
L:850>520; V,W; 1988-05-01~1990-07-01 |
38491-70B00-000 |
— | ||
| replacement | |||||
|
19
|
19
38491-61A10-000 HOSE,WASHER L:2100L:850>520; V,W; 1988-05-01~1990-07-01 |
38491-61A10-000 |
US $5.44 |
||
|
20
|
20
38833-63A00-000
バルブ,ワッシャホース
V,W; 1988-05-01~1990-07-01 |
38833-63A00-000 |
— | ||
| replacement | |||||
|
20
|
20
38833-63A10-000 VALVE,WASHER HOSEV,W; 1988-05-01~1990-07-01 |
38833-63A10-000 |
US $2.13 |
||
|
21
|
21
38491-70B00-000
ホース,ウォッシャ(L:850)
L:850>800; V,W; 1988-05-01~1990-07-01 |
38491-70B00-000 |
— | ||
| replacement | |||||
|
21
|
21
38491-61A10-000 HOSE,WASHER L:2100L:850>800; V,W; 1988-05-01~1990-07-01 |
38491-61A10-000 |
US $5.44 |
||
|
22
|
22
38496-63A00-000
ジョイント,3ウェイ
V,W; 1988-05-01~1990-07-01 |
38496-63A00-000 |
— | ||
| replacement | |||||
|
22
|
22
38496-71311-000 CONNECTOR,THREE WAYV,W; 1988-05-01~1990-07-01 |
38496-71311-000 |
US $3.50 |
||
|
23
|
23
38491-70B00-000
ホース,ウォッシャ(L:850)
L:850>70; V,W; 1988-05-01~1990-07-01 |
38491-70B00-000 |
— | ||
| replacement | |||||
|
23
|
23
38491-61A10-000 HOSE,WASHER L:2100L:850>70; V,W; 1988-05-01~1990-07-01 |
38491-61A10-000 |
US $5.44 |
||
|
24
|
24
38491-70B00-000
ホース,ウォッシャ(L:850)
L:850>650; V,W; 1988-05-01~1990-07-01 |
38491-70B00-000 |
— | ||
| replacement | |||||
|
24
|
24
38491-61A10-000 HOSE,WASHER L:2100L:850>650; V,W; 1988-05-01~1990-07-01 |
38491-61A10-000 |
US $5.44 |
||
|
25
|
25
38480-60A00-000
ノズル,ウォッシャ
V,W; 1988-05-01~1990-07-01 |
38480-60A00-000 |
— | ||
| replacement | |||||
|
25
|
25
38480-60A01-000 NOZZLE,WASHERV,W; 1988-05-01~1990-07-01 |
38480-60A01-000 |
from US $6.39 |
||
