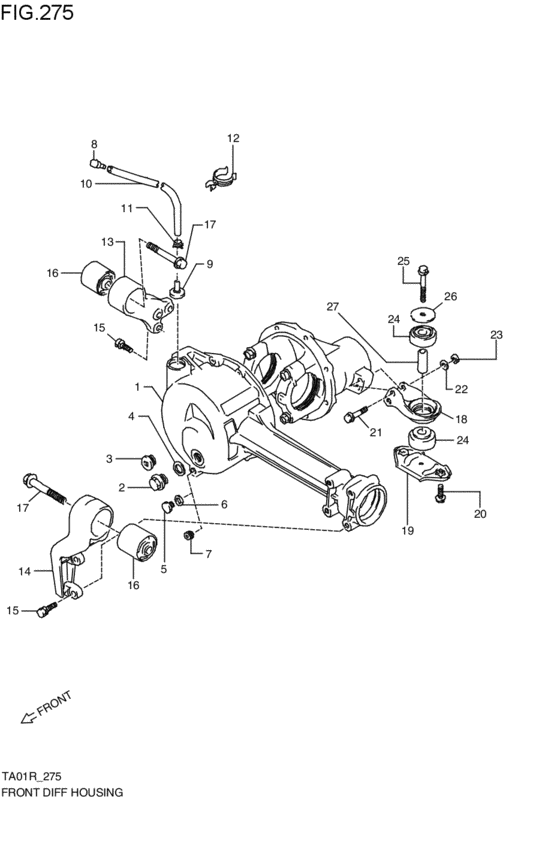

フロントデファレンシャルハウジング (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27611-60A01-000
ハウジング,ディファレンシャル
1988-05-01~1989-06-01 |
27611-60A01-000 |
— | ||
| replacements | |||||
|
1
|
1
27611-60A11-000 HOUSING,DIFFERENTIAL1988-05-01~1989-06-01 |
27611-60A11-000 |
US $1,003.20 |
||
|
1
|
1
09246-16010-000
PLUG
1988-05-01~1989-06-01 |
09246-16010-000 |
— | ||
|
1
|
1
09246-16021-000 Plug,t/m Oil Drain1988-05-01~1989-06-01 |
09246-16021-000 |
from US $3.26 |
||
|
1
|
1
27611-60A02-000
ハウジング,ディファレンシャル
1989-06-01~1990-07-01 |
27611-60A02-000 |
— | ||
| replacements | |||||
|
1
|
1
27611-60A11-000 HOUSING,DIFFERENTIAL1989-06-01~1990-07-01 |
27611-60A11-000 |
US $1,003.20 |
||
|
1
|
1
09246-16010-000
PLUG
1989-06-01~1990-07-01 |
09246-16010-000 |
— | ||
|
1
|
1
09246-16021-000 Plug,t/m Oil Drain1989-06-01~1990-07-01 |
09246-16021-000 |
from US $3.26 |
||
|
2
|
2
09247-20001-000
プラグ
1988-05-01~1990-07-01 |
09247-20001-000 |
— | ||
| replacement | |||||
|
2
|
2
09248-20003-000 PLUG1988-05-01~1990-07-01 |
09248-20003-000 |
from US $2.03 |
||
|
3
|
3
09248-20003-000 PLUG1989-03-01~1990-07-01 |
09248-20003-000 |
from US $2.03 |
||
|
4
|
4
09168-20001-000
Gasket
1988-05-01~1990-07-01 |
09168-20001-000 |
— | ||
| replacement | |||||
|
4
|
4
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) 1988-05-01~1990-07-01 |
09168-20003-000 |
from US $1.78 |
||
|
5
|
5
09247-12003-000 PLUGPlug (12x13) 1988-05-01~1989-06-01 |
09247-12003-000 |
US $0.96 |
||
|
6
|
6
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket DENSO; 1988-05-01~1989-06-01 |
09168-12002-000 |
from US $0.76 |
||
|
7
|
7
09246-16010-000
PLUG
マグネットツキ; 1988-05-01~1990-07-01 |
09246-16010-000 |
— | ||
|
8
|
8
24820-60A00-000
ブリーザ
1988-05-01~1990-07-01 |
24820-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
27991-65D01-000 PLUG,BREATHER1988-05-01~1990-07-01 |
27991-65D01-000 |
US $1.92 |
||
|
9
|
9
27620-85400-000 UNION,DIFF FR BREATHER1988-05-01~1990-07-01 |
27620-85400-000 |
US $5.67 |
||
|
10
|
10
09354-70123-480
ホース,7X12X480
1988-05-01~1990-07-01 |
09354-70123-480 |
— | ||
| replacements | |||||
|
10
|
10
09354-65113-600
HOSE(6.5X11.5X600)
1988-05-01~1990-07-01 |
09354-65113-600 |
— | ||
|
10
|
10
44421-12FR0-000 HOSE1988-05-01~1990-07-01 |
44421-12FR0-000 |
from US $15.38 |
||
|
10
|
10
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) 1988-05-01~1990-07-01 |
09355-70125-600 |
from US $4.88 |
||
|
10
|
10
09355-65001-600 Hose(6.5X11.5X600)1988-05-01~1990-07-01 |
09355-65001-600 |
from US $11.10 |
||
|
11
|
11
09401-11408-000
Clip
1988-05-01~1988-11-01 |
09401-11408-000 |
— | ||
| replacements | |||||
|
11
|
11
09401-11415-000 CLIP1988-05-01~1988-11-01 |
09401-11415-000 |
from US $1.06 |
||
|
11
|
11
09401-11407-000
CLIP
1988-05-01~1988-11-01 |
09401-11407-000 |
— | ||
|
12
|
12
09408-00063-000 CLAMP1988-05-01~1990-07-01 |
09408-00063-000 |
US $30.20 |
||
|
13
|
13
27661-60A01-000 BRACKET,DIFF MOUNT,R1988-05-01~1990-07-01 |
27661-60A01-000 |
US $48.21 |
||
|
14
|
14
27665-60A00-000
ブラケット,ディファレンシャルマウンチング,レフト
1988-05-01~1990-07-01 |
27665-60A00-000 |
— | ||
| replacement | |||||
|
14
|
14
27665-60A01-000 BRACKET,DIFF MOUNT,L1988-05-01~1990-07-01 |
27665-60A01-000 |
US $87.22 |
||
|
15
|
15
01147-10303-000
ボルト
1988-05-01~1990-07-01 |
01147-10303-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-1030A-000 Bolt1988-05-01~1990-07-01 |
01570-1030A-000 |
US $1.12 |
||
|
16
|
16
27550-60A00-000 MOUNTING,DIFF1988-05-01~1990-07-01 |
27550-60A00-000 |
from US $25 |
||
|
17
|
17
09103-12033-000 BOLT(12X84)1988-05-01~1990-07-01 |
09103-12033-000 |
from US $2.95 |
||
|
18
|
18
27670-60A00-000 BRACKET,DIFF MOUNT RR NO.11988-05-01~1990-07-01 |
27670-60A00-000 |
US $26.31 |
||
|
19
|
19
27675-60A01-000 BRACKET,DIFF MOUNT RR NO.21988-05-01~1990-07-01 |
27675-60A01-000 |
US $15.79 |
||
|
20
|
20
01137-10203-000
ボルト
1988-05-01~1990-07-01 |
01137-10203-000 |
— | ||
| replacement | |||||
|
20
|
20
01570-1020A-000 Bolt1988-05-01~1990-07-01 |
01570-1020A-000 |
US $0.96 |
||
|
21
|
21
01517-10553-000
ボルト
1988-05-01~1990-07-01 |
01517-10553-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-1055B-000 Bolt1988-05-01~1990-07-01 |
01550-1055B-000 |
from US $1.44 |
||
|
21
|
21
01550-10557-000 Bolt1988-05-01~1990-07-01 |
01550-10557-000 |
from US $1.38 |
||
|
22
|
22
08321-31103-000
ロックワッシャ
1988-05-01~1990-07-01 |
08321-31103-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0110A-000 WASHER,LOCK1988-05-01~1990-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
22
|
22
08321-0110B-000 WASHER,LOCKWasher, knuckle end 1988-05-01~1990-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
23
|
23
08310-12103-000
Nut
1988-05-01~1990-07-01 |
08310-12103-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0010B-000 NUT1988-05-01~1990-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
23
|
23
08310-0010A-000 NUT1988-05-01~1990-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
24
|
24
27561-60A01-000 MOUNTING,DIFF RR1988-05-01~1990-07-01 |
27561-60A01-000 |
from US $7.83 |
||
|
25
|
25
01537-10653-000
ボルト
1988-05-01~1990-07-01 |
01537-10653-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1065A-000 BOLT1988-05-01~1990-07-01 |
01550-1065A-000 |
US $1.60 |
||
|
26
|
26
09160-10104-000 WASHER(10.5X50X3.2)1988-05-01~1990-07-01 |
09160-10104-000 |
US $21.30 |
||
|
27
|
27
09180-10117-000 SPACER(10.9X17.3X46.8)1988-05-01~1990-07-01 |
09180-10117-000 |
US $68.10 |
||
