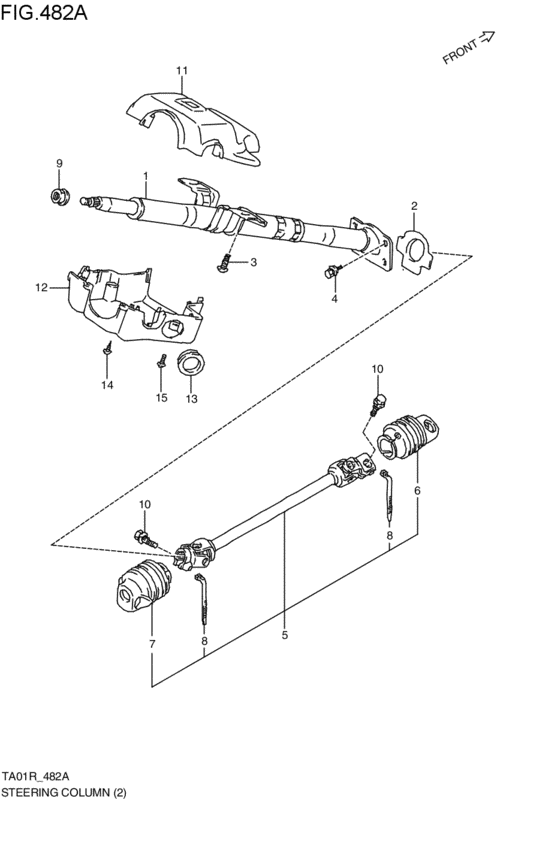

steering column (V; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- grade
- ZZ
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-60A62-000
コラムアッシ,ステアリング
V; 1988-05-01~1990-07-01 |
48200-60A62-000 |
— | ||
| replacement | |||||
|
1
|
1
48200-60A82-000
COLUMN ASSY,COLPS STRG
V; 1988-05-01~1990-07-01 |
48200-60A82-000 |
— | ||
|
2
|
2
48491-60A00-000 RUBBER,STRG COLUMN SEALV; 1988-05-01~1990-07-01 |
48491-60A00-000 |
US $3.53 |
||
|
3
|
3
09125-08004-000
スクリュ,8X20
V; 1988-05-01~1990-07-01 |
09125-08004-000 |
— | ||
| replacement | |||||
|
3
|
3
09139-08015-000 SCREW(8X30)V; 1988-05-01~1990-07-01 |
09139-08015-000 |
US $1.82 |
||
|
4
|
4
09118-08135-000
ボルト
V; 1988-05-01~1990-07-01 |
09118-08135-000 |
— | ||
| replacement | |||||
|
4
|
4
01570-0820B-000 BoltV; 1988-05-01~1990-07-01 |
01570-0820B-000 |
US $17.30 |
||
|
5
|
5
48220-60A80-000
シャフト,ステアリング,ロア
V; 1988-05-01~1990-07-01 |
48220-60A80-000 |
— | ||
| replacement | |||||
|
5
|
5
48220-56B52-000
SHAFT,COLPS STRG LOWER
V; 1988-05-01~1990-07-01 |
48220-56B52-000 |
— | ||
|
6
|
6
48228-60A00-000 BOOT,JOINT LOWERV; 1988-05-01~1990-07-01 |
48228-60A00-000 |
from US $11.57 |
||
|
7
|
7
48227-60A00-000
BOOT,JOINT UPPER
V; 1988-05-01~1990-07-01 |
48227-60A00-000 |
— | ||
|
8
|
8
48229-60A00-000 STRAP,BOOTV; 1988-05-01~1990-07-01 |
48229-60A00-000 |
US $2.40 |
||
|
9
|
9
09159-12029-000
ナット
V; 1988-05-01~1990-07-01 |
09159-12029-000 |
— | ||
| replacement | |||||
|
9
|
9
09159-12025-000 NUTV; 1988-05-01~1990-07-01 |
09159-12025-000 |
US $1.92 |
||
|
10
|
10
09117-08068-000 BOLT(8X30)V; 1988-05-01~1990-07-01 |
09117-08068-000 |
US $17.30 |
||
|
11
|
11
48411-60A10-5ES
カバー,ステアリングコラム,アッパ(ブラック)
ブラック; V; 1988-05-01~1990-07-01 |
48411-60A10-5ES |
— | ||
| replacement | |||||
|
11
|
11
48400-60A10-5ES COVER SET,STRG COLUMNブラック; V; 1988-05-01~1990-07-01 |
48400-60A10-5ES |
US $116.80 |
||
|
12
|
12
48421-60A00-5ES
カバー,ステアリングコラム,ロア(ブラック)
ブラック; V; 1988-05-01~1990-07-01 |
48421-60A00-5ES |
— | ||
| replacement | |||||
|
12
|
12
48400-60A00-5ES
COVER SET,STRG COLUMN
ブラック; V; 1988-05-01~1990-07-01 |
48400-60A00-5ES |
— | ||
|
13
|
13
48419-60A00-000 SEAL,STRG COVERV; 1988-05-01~1990-07-01 |
48419-60A00-000 |
US $1.98 |
||
|
14
|
14
03211-05166-000
Screw, l:16
V; 1988-05-01~1990-07-01 |
03211-05166-000 |
— | ||
| replacement | |||||
|
14
|
14
03211-0516A-000 SCREWV; 1988-05-01~1990-07-01 |
03211-0516A-000 |
US $0.80 |
||
|
15
|
15
09136-05030-000 SCREW(5X12)V; 1988-05-01~1990-07-01 |
09136-05030-000 |
US $0.96 |
||
