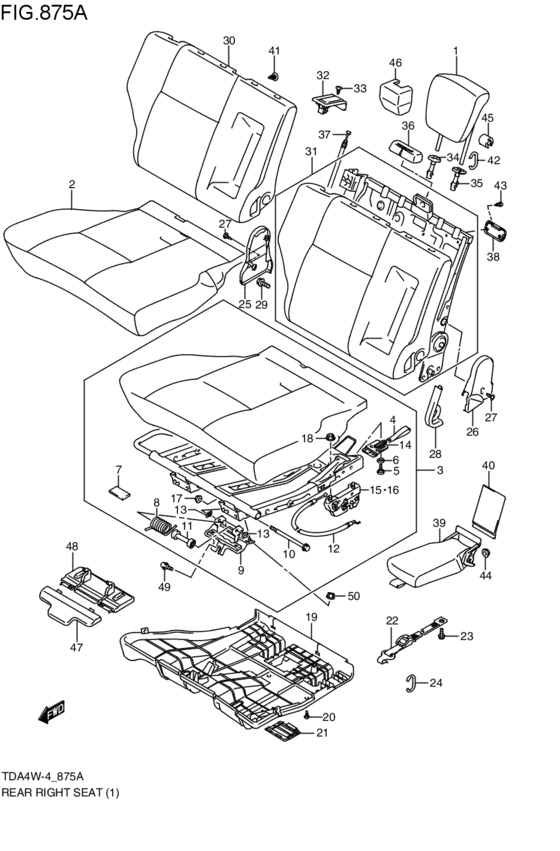

rear light sheet (MT; 2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XG
- esp
- ESP-N
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-66J10-ENB
Headrestraint assy,rr(black)
MT; 2010-01-01~ |
86401-66J10-ENB |
— | ||
| replacement | |||||
|
1
|
1
86401-66J11-JVD
HEADRESTRAINT ASSY,RR
MT; 2010-01-01~ |
86401-66J11-JVD |
— | ||
|
2
|
2
87180-66J01-FCE
Trim comp,rr cush,r
MT; 2010-01-01~ |
87180-66J01-FCE |
— | ||
| replacements | |||||
|
2
|
2
87180-66J01-JVC
TRIM,RR CUSHION,R
MT; 2010-01-01~ |
87180-66J01-JVC |
— | ||
|
2
|
2
87180-66J02-JVC TRIM,RR CUSHION,RMT; 2010-01-01~ |
87180-66J02-JVC |
US $296.24 |
||
|
3
|
3
87105-66J01-000
Cushion s/assy,rr,r
MT; 2010-01-01~ |
87105-66J01-000 |
— | ||
| replacement | |||||
|
3
|
3
87105-66J02-000 CUSHION S/ASSY,RR,RMT; 2010-01-01~ |
87105-66J02-000 |
US $630.08 |
||
|
4
|
4
87141-66J00-000 LEVER,RR LOCKMT; 2010-01-01~ |
87141-66J00-000 |
US $21.34 |
||
|
5
|
5
87142-66J00-000 BOLT,RR LOCK LEVERMT; 2010-01-01~ |
87142-66J00-000 |
US $6.96 |
||
|
6
|
6
87143-66J00-000 WASHER,RR LOCK LEVERMT; 2010-01-01~ |
87143-66J00-000 |
US $5.67 |
||
|
7
|
7
87144-66J00-000 SILENCER,RR CUSHMT; 2010-01-01~ |
87144-66J00-000 |
US $9.16 |
||
|
8
|
8
87148-79K00-000 SPRING,RR CUSH LEGMT; 2010-01-01~ |
87148-79K00-000 |
US $35.88 |
||
|
9
|
9
87150-66J00-000 LEG,RR CUSHMT; 2010-01-01~ |
87150-66J00-000 |
US $32.69 |
||
|
10
|
10
87153-63J01-000 BOLT,RR CUSH LEGMT; 2010-01-01~ |
87153-63J01-000 |
US $13.73 |
||
|
11
|
11
87149-66J00-000
COLLAR,SPRING
MT; 2010-01-01~ |
87149-66J00-000 |
— | ||
|
12
|
12
87154-66J00-000 CABLE,RR LOCKMT; 2010-01-01~ |
87154-66J00-000 |
US $27.78 |
||
|
13
|
13
87157-66J00-000 BUSH,RR CUSH LEGMT; 2010-01-01~ |
87157-66J00-000 |
US $2.24 |
||
|
14
|
14
87159-66J02-000 BUSH,RR LOCK LEVERMT; 2010-01-01~ |
87159-66J02-000 |
US $5.12 |
||
|
15
|
15
87460-66J00-000
Lock assy,rr cush inside,r
MT; 2010-01-01~ |
87460-66J00-000 |
— | ||
| replacement | |||||
|
15
|
15
87460-66J01-000 LOCK ASSY,RR CUSH INSIDE,RMT; 2010-01-01~ |
87460-66J01-000 |
US $106.72 |
||
|
16
|
16
87460-66J10-000
Lock assy,rr cush outside,r
MT; 2010-01-01~ |
87460-66J10-000 |
— | ||
| replacement | |||||
|
16
|
16
87460-66J11-000 LOCK ASSY,RR CUSH OUTSIDE,RMT; 2010-01-01~ |
87460-66J11-000 |
US $100.46 |
||
|
17
|
17
08316-1008A-000 NUTNut, idle gear shaft MT; 2010-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
18
|
18
08316-1010A-000 NUTNut, kick starter MT; 2010-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
19
|
19
87175-66J00-5PK COVER,RR CUSH BOTTOM,RMT; 2010-01-01~ |
87175-66J00-5PK |
US $87.22 |
||
|
20
|
20
03241-0510A-000 SCREWMT; 2010-01-01~ |
03241-0510A-000 |
from US $0.77 |
||
|
21
|
21
87176-66J00-5PK CAP,RR CUSH BOTTOM,RMT; 2010-01-01~ |
87176-66J00-5PK |
US $13.73 |
||
|
22
|
22
87270-66J00-000 BAND,RR SEATMT; 2010-01-01~ |
87270-66J00-000 |
US $23.18 |
||
|
23
|
23
03141-0616A-000 SCREWMT; 2010-01-01~ |
03141-0616A-000 |
from US $0.80 |
||
|
24
|
24
09387-19001-000 RINGMT; 2010-01-01~ |
09387-19001-000 |
US $11.40 |
||
|
25
|
25
87221-66J00-5PK COVER,RR OUTSIDE,RMT; 2010-01-01~ |
87221-66J00-5PK |
US $8.17 |
||
|
26
|
26
87241-79K00-5PK COVER,RR RCLNG INSIDE,RMT; 2010-01-01~ |
87241-79K00-5PK |
US $6.96 |
||
|
27
|
27
03241-0510A-000 SCREWMT; 2010-01-01~ |
03241-0510A-000 |
from US $0.77 |
||
|
28
|
28
87242-79K00-000 PROTECTOR,RR RCLNG INSIDE,RMT; 2010-01-01~ |
87242-79K00-000 |
US $5.92 |
||
|
29
|
29
01551-1225A-000 BoltMT; 2010-01-01~ |
01551-1225A-000 |
US $19.50 |
||
|
30
|
30
87380-66J00-FCE
Trim comp,rr back,r
MT; 2010-01-01~ |
87380-66J00-FCE |
— | ||
| replacements | |||||
|
30
|
30
87380-66J01-JVC
TRIM,RR BACK,R
MT; 2010-01-01~ |
87380-66J01-JVC |
— | ||
|
30
|
30
87380-66J02-JVC Trim,rr Back,rMT; 2010-01-01~ |
87380-66J02-JVC |
US $255.76 |
||
|
31
|
31
87305-79K00-000 BACK S/ASSY,RR,RMT; 2010-01-01~ |
87305-79K00-000 |
US $1,020.80 |
||
|
32
|
32
87290-65J00-5PK HANDLE,RCLNGMT; 2010-01-01~ |
87290-65J00-5PK |
US $12.44 |
||
|
33
|
33
03241-0510A-000 SCREWMT; 2010-01-01~ |
03241-0510A-000 |
from US $0.77 |
||
|
34
|
34
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
MT; 2010-01-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
34
|
34
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
MT; 2010-01-01~ |
85341-63J11-P4Z |
— | ||
|
34
|
34
85341-63J12-P4Z Guide,headrestraintMT; 2010-01-01~ |
85341-63J12-P4Z |
US $5.48 |
||
|
35
|
35
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
MT; 2010-01-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
35
|
35
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
MT; 2010-01-01~ |
85840-63J11-P4Z |
— | ||
|
35
|
35
85840-63J12-P4Z Guide Comp,headrestraintMT; 2010-01-01~ |
85840-63J12-P4Z |
US $6 |
||
|
36
|
36
87227-66J00-5PK COVER,SHOULDER ANCHORMT; 2010-01-01~ |
87227-66J00-5PK |
US $6.96 |
||
|
37
|
37
87294-66J00-000 CABLE,RCLNG RELEASEMT; 2010-01-01~ |
87294-66J00-000 |
US $12.14 |
||
|
38
|
38
87428-65DA0-5PK STRIKER,TONNEAU COVERMT; 2010-01-01~ |
87428-65DA0-5PK |
US $7.68 |
||
|
39
|
39
87501-66J00-U7S
ARMREST ASSY,RR
MT; 2010-01-01~ |
87501-66J00-U7S |
— | ||
| replacement | |||||
|
39
|
39
87501-66J02-U7S Armrest Assy,rrMT; 2010-01-01~ |
87501-66J02-U7S |
US $159.34 |
||
|
40
|
40
87541-66J00-5PK COVER,RR ARMREST HOLEMT; 2010-01-01~ |
87541-66J00-5PK |
US $10.12 |
||
|
41
|
41
09409-10302-5PK CLIP(BLACK)MT; 2010-01-01~ |
09409-10302-5PK |
US $1.28 |
||
|
42
|
42
09387-19001-000 RINGMT; 2010-01-01~ |
09387-19001-000 |
US $11.40 |
||
|
43
|
43
03241-0510A-000 SCREWMT; 2010-01-01~ |
03241-0510A-000 |
from US $0.77 |
||
|
44
|
44
08316-1008A-000 NUTNut, idle gear shaft MT; 2010-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
45
|
45
87359-66J00-000 CAPMT; 2010-01-01~ |
87359-66J00-000 |
US $3.83 |
||
|
46
|
46
87361-79K00-000 COVER,RR ELRMT; 2010-01-01~ |
87361-79K00-000 |
US $19.87 |
||
|
47
|
47
87491-66J00-5PK COVER,RR CUSH HINGE FRMT; 2010-01-01~ |
87491-66J00-5PK |
from US $10.40 |
||
|
48
|
48
87492-66J00-5PK COVER,RR CUSH HINGE RRMT; 2010-01-01~ |
87492-66J00-5PK |
US $19.32 |
||
|
49
|
49
01551-1020A-000 BoltMT; 2010-01-01~ |
01551-1020A-000 |
US $17.30 |
||
|
50
|
50
08316-1010A-000 NUTNut, kick starter MT; 2010-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
