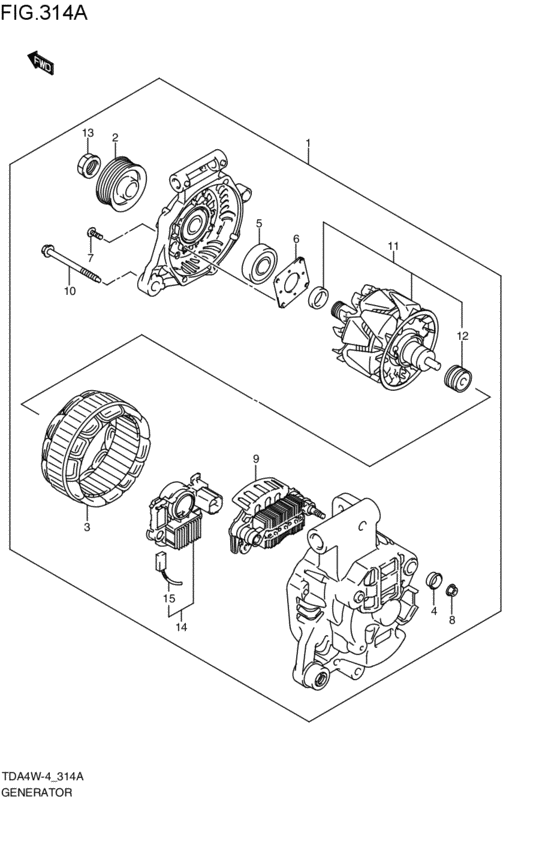

generator (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-78K10-000
Generator assy
2010-01-01~ |
31400-78K10-000 |
— | ||
| replacement | |||||
|
1
|
1
31400-78K13-000 GENERATOR ASSY2010-01-01~ |
31400-78K13-000 |
US $693.44 |
||
|
2
|
2
31171-78K00-000
Pulley
2010-01-01~ |
31171-78K00-000 |
— | ||
|
3
|
3
31410-54L00-000 STATOR ASSY2010-01-01~ |
31410-54L00-000 |
US $360.64 |
||
|
4
|
4
31471-84A00-000 INSULATOR2010-01-01~ |
31471-84A00-000 |
US $7.62 |
||
|
5
|
5
31512-84A00-000 NUT2010-01-01~ |
31512-84A00-000 |
US $6.40 |
||
|
6
|
6
31582-50F20-000
Bearing,front
2010-01-01~ |
31582-50F20-000 |
— | ||
| replacement | |||||
|
6
|
6
31582-50F30-000 BEARING,FRONT2010-01-01~ |
31582-50F30-000 |
from US $26.75 |
||
|
7
|
7
31585-65J10-000 RETAINER2010-01-01~ |
31585-65J10-000 |
US $7.36 |
||
|
8
|
8
31586-86520-000 SCREW SET2010-01-01~ |
31586-86520-000 |
US $5.30 |
||
|
9
|
9
31621-78K00-000 RECTIFIER2010-01-01~ |
31621-78K00-000 |
US $252.08 |
||
|
10
|
10
31651-86520-000 SCREW SET2010-01-01~ |
31651-86520-000 |
US $5.78 |
||
|
11
|
11
31710-78K10-000 ROTOR ASSY2010-01-01~ |
31710-78K10-000 |
US $401.28 |
||
|
12
|
12
31612-60A10-000
Bearing,rr
2010-01-01~ |
31612-60A10-000 |
— | ||
| replacement | |||||
|
12
|
12
31612-60A11-000 BEARING,REAR2010-01-01~ |
31612-60A11-000 |
US $24 |
||
|
13
|
13
31775-50F20-000 NUT2010-01-01~ |
31775-50F20-000 |
US $5.59 |
||
|
14
|
14
32500-80J10-000 REGULATOR ASSY2010-01-01~ |
32500-80J10-000 |
US $303.60 |
||
|
15
|
15
31631-60F30-000 BRUSH SET2010-01-01~ |
31631-60F30-000 |
from US $7.58 |
||
