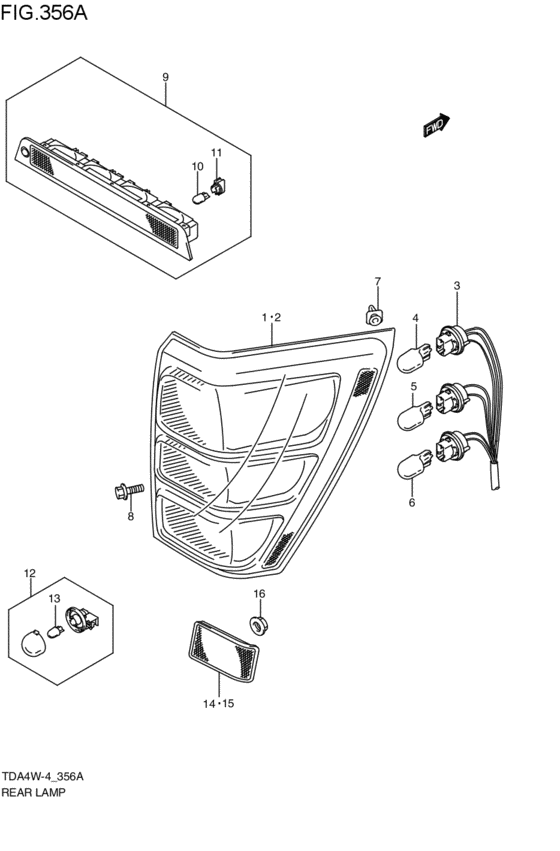

rear lamp (2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XG
- esp
- ESP-N
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-65J21-000 LAMP UNIT,RR COMB,R2010-01-01~ |
35650-65J21-000 |
from US $109.10 |
||
|
2
|
2
35670-65J21-000 LAMP UNIT,RR COMB,L2010-01-01~ |
35670-65J21-000 |
from US $110.16 |
||
|
3
|
3
35658-65J00-000 SOCKET&CORD ASSY2010-01-01~ |
35658-65J00-000 |
US $27.42 |
||
|
4
|
4
09471-12192-000 BULB(12V21/5W)2010-01-01~ |
09471-12192-000 |
from US $3.74 |
||
|
5
|
5
09471-12202-000 BULB(12V21W/WY21W,AMBER)2010-01-01~ |
09471-12202-000 |
from US $5.31 |
||
|
6
|
6
09471-12191-000 BULB(12V21W)2010-01-01~ |
09471-12191-000 |
from US $3.60 |
||
|
7
|
7
35153-65J00-000 GROMMET,RR COMB LAMP2010-01-01~ |
35153-65J00-000 |
from US $1.37 |
||
|
8
|
8
02162-0616E-000 SCREW2010-01-01~ |
02162-0616E-000 |
US $11.80 |
||
|
9
|
9
35810-65J01-000 LAMP ASSY,HIGH MT STOP2010-01-01~ |
35810-65J01-000 |
from US $113.38 |
||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) 2010-01-01~ |
09471-12216-000 |
from US $2.41 |
||
|
11
|
11
36218-74F00-000 SOCKET2010-01-01~ |
36218-74F00-000 |
US $3.35 |
||
|
12
|
12
35910-75F22-000 Lamp assy,license2010-01-01~ |
35910-75F22-000 |
from US $11.95 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
2010-01-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) 2010-01-01~ |
09471-12216-000 |
from US $2.41 |
||
|
14
|
14
35950-65J01-000 REFLECTOR ASSY,REAR,R2010-01-01~ |
35950-65J01-000 |
from US $14.40 |
||
|
15
|
15
35970-65J01-000 REFLECTOR ASSY,REAR,L2010-01-01~ |
35970-65J01-000 |
from US $14.72 |
||
|
16
|
16
08316-1005A-000 NUT2010-01-01~ |
08316-1005A-000 |
from US $0.80 |
||
