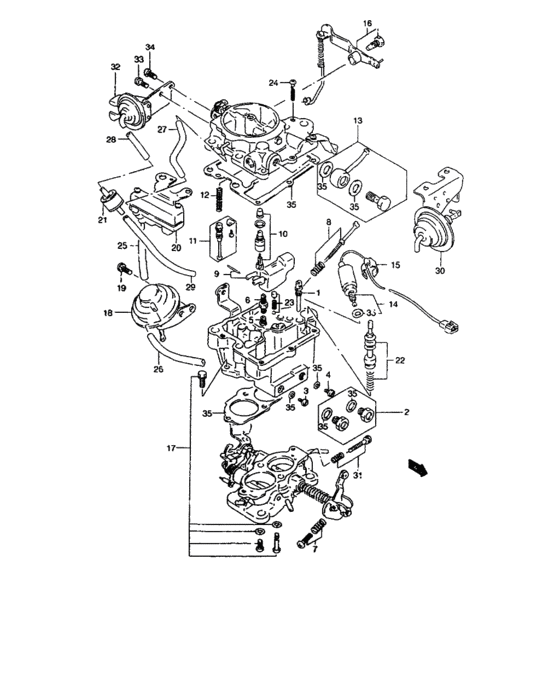

Carburetor (CARBURETOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-83001-000
CARBURETOR ASSY
|
13200-83001-000 |
— | ||
|
1
|
1
13252-83000-000 JET ASSY,SLOW |
13252-83000-000 |
US $14.06 |
||
|
2
|
2
13374-821T0-000 PLUG SET |
13374-821T0-000 |
US $14.65 |
||
|
3
|
3
09491-95009-000
JET,MAIN
|
09491-95009-000 |
— | ||
|
4
|
4
09491-21015-000 JET,MAIN(108) |
09491-21015-000 |
US $6.48 |
||
|
5
|
5
09491-60008-000
JET,POWER
|
09491-60008-000 |
— | ||
|
6
|
6
13263-82100-000
VALVE ASSY,POWER
|
13263-82100-000 |
— | ||
|
7
|
7
13275-85210-000
Screw set, throttle adjust
|
13275-85210-000 |
— | ||
|
8
|
8
13275-82170-000
Screw set, throttle adjust
|
13275-82170-000 |
— | ||
|
9
|
9
13250-822T0-000
FLOAT SET
|
13250-822T0-000 |
— | ||
|
10
|
10
13214-82100-000 VALVE ASSY,NEEDLE |
13214-82100-000 |
US $29.62 |
||
|
11
|
11
13320-821T0-000
VALVE SET,POWER
|
13320-821T0-000 |
— | ||
|
12
|
12
13219-82040-000
SPRING,POWER PISTON
|
13219-82040-000 |
— | ||
|
13
|
13
13274-830T0-000
Nipple set,union
|
13274-830T0-000 |
— | ||
|
14
|
14
13260-830T0-000
SOLENOID SET
|
13260-830T0-000 |
— | ||
|
15
|
15
13254-83090-000 CLAMP |
13254-83090-000 |
US $4.82 |
||
|
16
|
16
13345-820T0-000
LEVER SET
|
13345-820T0-000 |
— | ||
|
17
|
17
13390-821T0-000
SCREW SET
|
13390-821T0-000 |
— | ||
|
18
|
18
13330-82100-000
DIAPHRAGM ASSY
|
13330-82100-000 |
— | ||
|
19
|
19
02112-36123-000
Screw
|
02112-36123-000 |
— | ||
| replacements | |||||
|
19
|
19
02112-3612B-000 SCREW |
02112-3612B-000 |
US $13.60 |
||
|
19
|
19
02112-3612A-000 SCREW |
02112-3612A-000 |
from US $1.93 |
||
|
20
|
20
13320-83001-000
VALVE ASSY
|
13320-83001-000 |
— | ||
|
21
|
21
18480-79110-000 JET |
18480-79110-000 |
US $27.42 |
||
|
22
|
22
13355-821T0-000 PLUNGER SET |
13355-821T0-000 |
US $25.09 |
||
|
23
|
23
13245-830T0-000 VALVE SET,CHECK |
13245-830T0-000 |
US $15.06 |
||
|
24
|
24
02112-35253-000
Screw
|
02112-35253-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-3525B-000 SCREW |
02112-3525B-000 |
from US $2.21 |
||
|
25
|
25
09355-40805-600 HOSE(4X8X600) |
09355-40805-600 |
from US $6.24 |
||
|
26
|
26
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
26
|
26
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $6.08 |
||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $6.08 |
||
|
28
|
28
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
28
|
28
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $6.08 |
||
|
29
|
29
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
| replacement | |||||
|
29
|
29
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $6.08 |
||
|
30
|
30
13360-83020-000
DIAPHRAGM ASSY
|
13360-83020-000 |
— | ||
|
31
|
31
13270-830T0-000 SCREW SET,IDLE ADJUST |
13270-830T0-000 |
US $15.09 |
||
|
32
|
32
13212-82030-000
DIAPHRAGM ASSY
|
13212-82030-000 |
— | ||
|
33
|
33
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
| replacement | |||||
|
33
|
33
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.70 |
||
|
34
|
34
13225-32030-000
Screw
|
13225-32030-000 |
— | ||
|
35
|
35
13380-820T0-000
GASKET SET,CARB
|
13380-820T0-000 |
— | ||
