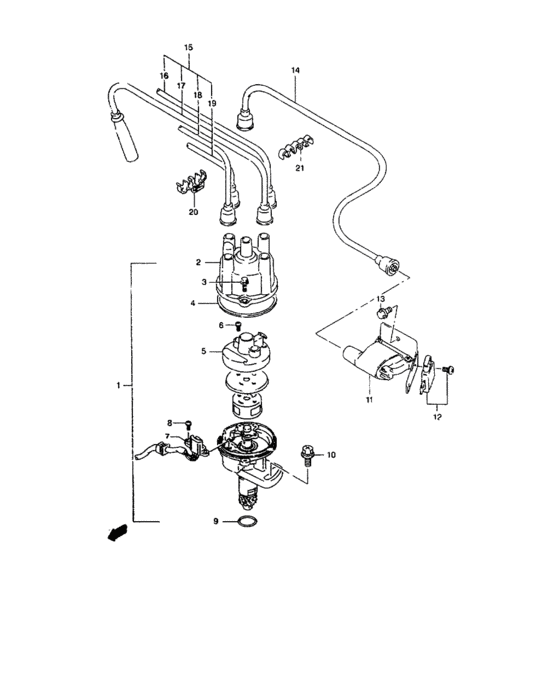

Distributor (W/FUEL INJECTION) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80C10-000
DISTRIBUTOR ASSY
|
33100-80C10-000 |
— | ||
|
2
|
2
33321-80C10-000 CAP,DISTRIBUTOR |
33321-80C10-000 |
US $36.83 |
||
|
3
|
3
01580-05203-000
ボルト
|
01580-05203-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-0520B-000 BOLT |
01580-0520B-000 |
US $15.50 |
||
|
4
|
4
33324-80C10-000 GASKET,CAP |
33324-80C10-000 |
US $9.72 |
||
|
5
|
5
33310-80C10-000 ROTOR ASSY,DISTRIBUTOR |
33310-80C10-000 |
US $20.95 |
||
|
6
|
6
33152-80C10-000 SCREW |
33152-80C10-000 |
US $1.44 |
||
|
7
|
7
33140-80C10-000 SENSOR ASSY,CRANK POSITION |
33140-80C10-000 |
US $310.96 |
||
|
8
|
8
02112-34163-000
Screw
|
02112-34163-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-3416B-000 SCREW |
02112-3416B-000 |
from US $2.22 |
||
|
9
|
9
33278-85310-000 O-RING |
33278-85310-000 |
from US $2.74 |
||
|
10
|
10
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $6.06 |
||
|
11
|
11
33410-80C20-000
COIL ASSY,IGNITION
|
33410-80C20-000 |
— | ||
|
12
|
12
33370-60G10-000 IGNITER ASSY |
33370-60G10-000 |
US $542.40 |
||
|
13
|
13
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
33710-80C00-000 CORD,HT NO.1 |
33710-80C00-000 |
US $11.59 |
||
|
15
|
15
33705-80C00-000 CORD SET,HIGH TENSION |
33705-80C00-000 |
US $70.66 |
||
|
16
|
16
33730-80C00-000
CORD,HT NO.2
|
33730-80C00-000 |
— | ||
|
17
|
17
33740-80C00-000
CORD,HT NO.3
|
33740-80C00-000 |
— | ||
|
18
|
18
33750-80C00-000 CORD,HT NO.4 |
33750-80C00-000 |
US $19.01 |
||
|
19
|
19
33760-80C00-000 CORD,HT NO.5 |
33760-80C00-000 |
US $18.77 |
||
|
20
|
20
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
21
|
21
09408-00116-000 CLIP |
09408-00116-000 |
US $44.90 |
||
