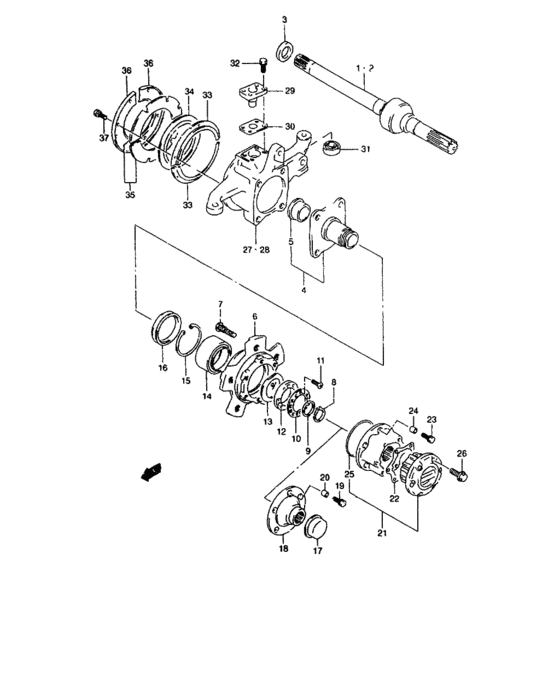

Front axle (FRONT AXLE) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-83310-000
ジョイントアッシ,フロントアクスルシャフト,ライト
TYPE 8,->44101-83350 |
44101-83310-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-83350-000
JOINT ASSY,FR AXLE SHAFT,R
TYPE 8,->44101-83350 |
44101-83350-000 |
— | ||
|
1
|
1
44101-83350-000
JOINT ASSY,FR AXLE SHAFT,R
TYPE 9 |
44101-83350-000 |
— | ||
|
2
|
2
44102-83310-000
ジョイントアッシ,フロントアクスルシャフト,レフト
TYPE 8,->44102-83350 |
44102-83310-000 |
— | ||
| replacement | |||||
|
2
|
2
44102-83350-000 JOINT ASSY,FR AXLE SHAFT,LTYPE 8,->44102-83350 |
44102-83350-000 |
US $432.96 |
||
|
2
|
2
44102-83350-000 JOINT ASSY,FR AXLE SHAFT,LTYPE 9 |
44102-83350-000 |
US $432.96 |
||
|
3
|
3
09283-26016-000 SEAL,OIL(26X38X8) |
09283-26016-000 |
from US $3.47 |
||
|
4
|
4
43440-60A03-000
SPINDLE,FR WHEEL
|
43440-60A03-000 |
— | ||
|
5
|
5
43445-60A11-000 BUSHING,FR SPINDLE |
43445-60A11-000 |
from US $10.82 |
||
|
6
|
6
43420-50820-000 HUB SET,FR WHL |
43420-50820-000 |
US $267.52 |
||
|
6
|
6
43420-51830-000 HUB SET,FR WHLSJ80-101748~,JSAOSJ80000101139~,JSAOSJ80V00101079~,JS3JC32V V4100328~,JSAOSJ800TV100134~,JSAOSJBOVTV100015~ |
43420-51830-000 |
from US $124.79 |
||
|
7
|
7
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $0.99 |
||
|
8
|
8
09380-26004-000 CIRCLIP |
09380-26004-000 |
from US $1.67 |
||
| replacement | |||||
|
8
|
8
94412-31J01-YMC Cowling,body Lower |
94412-31J01-YMC |
US $172.48 |
||
|
9
|
9
44182-60A01-000 WASHER,FR SPINDLE THRUST |
44182-60A01-000 |
US $2.56 |
||
|
10
|
10
43466-60A00-000 WASHER,FR WHEEL BRG LOCK |
43466-60A00-000 |
from US $10.69 |
||
|
11
|
11
02122-04083-000
スクリュ
|
02122-04083-000 |
— | ||
| replacement | |||||
|
11
|
11
02122-0408A-000 SCREW |
02122-0408A-000 |
from US $0.76 |
||
|
12
|
12
43461-60A01-000 NUT,FR WHL BRG LOCK |
43461-60A01-000 |
from US $30.04 |
||
|
13
|
13
43465-60A00-000 WASHER,FR WHEEL BRG |
43465-60A00-000 |
from US $1.35 |
||
|
14
|
14
09267-41001-000
ベアリング,41X68X40
|
09267-41001-000 |
— | ||
| replacement | |||||
|
14
|
14
43462-84A00-000 BEARING,FR WHEEL |
43462-84A00-000 |
from US $66.96 |
||
|
15
|
15
09381-68001-000 CIRCLIP |
09381-68001-000 |
from US $2.72 |
||
|
16
|
16
09283-54001-000 SEAL,OIL(54X69X7) |
09283-54001-000 |
from US $7.18 |
||
|
17
|
17
43241-80001-000 CAP,FR AXLEN/FREE WHEEL |
43241-80001-000 |
US $16.80 |
||
|
18
|
18
43471-60A00-000
フランジ,フロントアクスルシャフトドライブ
N/FREE WHEEL,->43471-80001,USED WITH 43811-65D00(6PCS) |
43471-60A00-000 |
— | ||
| replacements | |||||
|
18
|
18
43471-80001-000 FLANGE,FR AXLE SHAFT DRIVEN/FREE WHEEL,->43471-80001,USED WITH 43811-65D00(6PCS) |
43471-80001-000 |
from US $56.84 |
||
|
18
|
18
43811-65D00-000 BOLT,DRIVE FLANGEN/FREE WHEEL,->43471-80001,USED WITH 43811-65D00(6PCS) |
43811-65D00-000 |
from US $2.72 |
||
|
19
|
19
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
19
|
19
01570-0825B-000 BOLT |
01570-0825B-000 |
US $1.12 |
||
|
19
|
19
01570-0825A-000 BOLT |
01570-0825A-000 |
from US $1.06 |
||
|
20
|
20
43841-80001-000 WASHER,LOCKING HUB CONE |
43841-80001-000 |
US $2.40 |
||
|
21
|
21
43800-60811-000
ロッキングハブセット,マニュアル
W/MANUAL FREE WHEEL |
43800-60811-000 |
— | ||
| replacement | |||||
|
21
|
21
43800-60812-000 WHEEL LOCKING HUB SET (MANUAL)W/MANUAL FREE WHEEL |
43800-60812-000 |
US $516.80 |
||
|
22
|
22
43813-60A00-000 GASKET,LOCKING HUB COVER |
43813-60A00-000 |
US $2.88 |
||
|
23
|
23
43814-60A01-000 BOLT,LOCKING HUB COVER |
43814-60A01-000 |
US $2.29 |
||
|
24
|
24
43841-80001-000 WASHER,LOCKING HUB CONE |
43841-80001-000 |
US $2.40 |
||
|
25
|
25
43838-60A00-000 O-RING |
43838-60A00-000 |
US $8.64 |
||
|
26
|
26
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
26
|
26
01570-0825B-000 BOLT |
01570-0825B-000 |
US $1.12 |
||
|
26
|
26
01570-0825A-000 BOLT |
01570-0825A-000 |
from US $1.06 |
||
|
27
|
27
45111-70AF0-000
Knuckle, steering rh
LHD |
45111-70AF0-000 |
— | ||
|
27
|
27
45111-82CA0-000
KNUCKLE,STEERING,R
RHD |
45111-82CA0-000 |
— | ||
|
28
|
28
45151-70AF0-000
KNUCKLE,STEERING,L
LHD |
45151-70AF0-000 |
— | ||
|
28
|
28
45151-82CA0-000
Knuckle,steering,l
RHD |
45151-82CA0-000 |
— | ||
|
29
|
29
45610-63002-000 PIN ASSY,KING |
45610-63002-000 |
from US $41.02 |
||
|
30
|
30
45621-63000-000 SHIM,KINGPIN NO.1 (T=0.5) |
45621-63000-000 |
US $1.60 |
||
|
30
|
30
45622-63000-000 SHIM,KINGPIN NO.2 (T=0.1) |
45622-63000-000 |
US $1.52 |
||
|
31
|
31
09265-15005-000 BEARING(15X42X14.25) |
09265-15005-000 |
US $47.89 |
||
|
32
|
32
09117-08050-000 BOLT(8X20) |
09117-08050-000 |
US $2.24 |
||
|
33
|
33
45623-80001-000 RETAINER,OIL SEAL |
45623-80001-000 |
US $56 |
||
|
34
|
34
09285-00002-000 SEAL,OIL(85X112X5) |
09285-00002-000 |
from US $10.89 |
||
|
35
|
35
45600-82810-000 PAD SET |
45600-82810-000 |
from US $5.58 |
||
|
36
|
36
45625-63001-000 COVER,OIL SEAL |
45625-63001-000 |
US $25.60 |
||
|
37
|
37
45626-83000-000 BOLT,JOINT SEAL |
45626-83000-000 |
US $4.48 |
||
