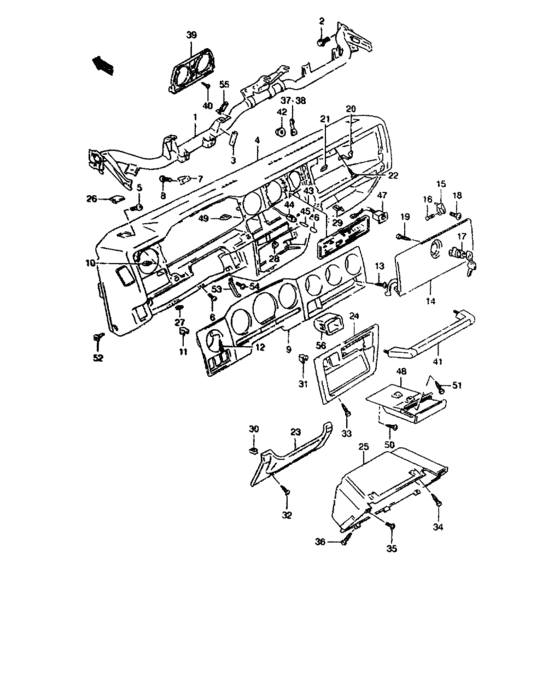

Instrument panel (LHD) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72310-82C80-000
Holder, steering column
|
72310-82C80-000 |
— | ||
|
2
|
2
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
2
|
2
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.81 |
||
|
3
|
3
75958-77E00-000 PROTECTOR,NO.4L:200->70 |
75958-77E00-000 |
US $5.96 |
||
|
4
|
4
73111-82C10-5ES
Panel, instrument main
TYPE 8 |
73111-82C10-5ES |
— | ||
|
4
|
4
73111-82C10-T01
PANEL,INSTR MAIN
TYPE 9 |
73111-82C10-T01 |
— | ||
|
5
|
5
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
6
|
6
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
7
|
7
73211-82C00-000
BRACKET,DEFROSTER NOZZLE
|
73211-82C00-000 |
— | ||
|
8
|
8
03542-06163-000
Screw
|
03542-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.80 |
||
|
9
|
9
73311-82C1C-R61
Panel, meter cluster
TYPE 8 |
73311-82C1C-R61 |
— | ||
|
9
|
9
73311-82C10-T59
PANEL,METER CLUSTER
TYPE 9 |
73311-82C10-T59 |
— | ||
|
10
|
10
09148-05004-000 NUT |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
10
|
10
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
11
|
11
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.97 |
||
|
12
|
12
03111-05123-000
Screw
|
03111-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
14
|
14
73410-82C00-R61 LID ASSY,GLOVE BOXTYPE 8 |
73410-82C00-R61 |
US $103.36 |
||
|
14
|
14
73410-82C00-H9Y
LID ASSY,GLOVE BOX
TYPE 9 |
73410-82C00-H9Y |
— | ||
|
15
|
15
73422-50G00-000 HINGE,GLOVE BOX |
73422-50G00-000 |
US $3.61 |
||
|
16
|
16
73423-50G00-000 PIN,GLOVE BOX HINGEPin, box |
73423-50G00-000 |
from US $2.43 |
||
|
17
|
17
73900-80882-5PK
ロックアッシ,グローブボックスリッド(ブラック)
|
73900-80882-5PK |
— | ||
| replacements | |||||
|
17
|
17
73900-80883-5PK LOCK SET,GLOVE BOX LID |
73900-80883-5PK |
US $86.11 |
||
|
17
|
17
03241-0410A-000 SCREW |
03241-0410A-000 |
from US $0.80 |
||
|
17
|
17
03242-04103-000
Screw
|
03242-04103-000 |
— | ||
|
18
|
18
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
|
19
|
19
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
20
|
20
73951-70A01-000
STRIKER,GLOVE BOX LID
|
73951-70A01-000 |
— | ||
|
21
|
21
09148-05004-000 NUT |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
21
|
21
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
22
|
22
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
23
|
23
73811-82C10-5ES
Cover, steering column
TYPE 8 |
73811-82C10-5ES |
— | ||
|
23
|
23
73811-82C10-T01
COVER,STRG COLUMN HOLE
TYPE 9 |
73811-82C10-T01 |
— | ||
|
24
|
24
73821-82C00-5ES GARNISH,I/P CTRTYPE 8 |
73821-82C00-5ES |
US $27.42 |
||
|
24
|
24
73821-82C00-T01 GARNISH,I/P CTRTYPE 9 |
73821-82C00-T01 |
US $20.61 |
||
|
25
|
25
73831-82C10-5ES
COVER,LOWER POCKET UPPER
TYPE 8 |
73831-82C10-5ES |
— | ||
|
25
|
25
73831-82C10-T01
Cover,lower pocket upper
TYPE 9 |
73831-82C10-T01 |
— | ||
|
26
|
26
73841-82C00-5ES
COVER,INSTPN MAIN
TYPE 8 |
73841-82C00-5ES |
— | ||
|
26
|
26
73841-82C00-T01 COVER,INSTPN MAINTYPE 9 |
73841-82C00-T01 |
US $1.52 |
||
|
27
|
27
09148-05004-000 NUT |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
27
|
27
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
28
|
28
09148-05004-000 NUT |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
28
|
28
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
29
|
29
09148-05004-000 NUT |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
29
|
29
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
30
|
30
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.97 |
||
|
31
|
31
09409-08325-000 CLIP |
09409-08325-000 |
from US $0.97 |
||
|
32
|
32
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
32
|
32
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
33
|
33
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
33
|
33
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
34
|
34
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
34
|
34
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
35
|
35
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
35
|
35
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
36
|
36
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
36
|
36
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.63 |
||
|
37
|
37
73851-82C00-000
REINF,GLOVE BOX LID HNG,R
|
73851-82C00-000 |
— | ||
|
38
|
38
73871-82C00-000
REINF,GLOVE BOX LID HNG,L
|
73871-82C00-000 |
— | ||
|
39
|
39
73861-82C00-000
REINFORCEMENT,I/P CTR
EC,Germany,Austria,Israel |
73861-82C00-000 |
— | ||
|
40
|
40
03541-05163-000
Screw
EC,Germany,Austria,Israel |
03541-05163-000 |
— | ||
| replacement | |||||
|
40
|
40
03541-0516A-000 SCREWEC,Germany,Austria,Israel |
03541-0516A-000 |
from US $0.63 |
||
|
41
|
41
84410-83000-5ES GRIP,ASST FRTYPE 8 |
84410-83000-5ES |
US $44.53 |
||
|
41
|
41
84410-83000-T01 GRIP,ASST FRTYPE 9 |
84410-83000-T01 |
US $44.53 |
||
|
43
|
43
73850-83C10-5PK
PANEL,HEATER CONTROL
W/AIR CON |
73850-83C10-5PK |
— | ||
|
43
|
43
73850-83C00-5PK
PANEL,HEATER CONTROL
N/AIR CON |
73850-83C00-5PK |
— | ||
|
43
|
43
73851-70A60-000
PANEL,VENT CONTROL
N/HEATER, N/AIR CON |
73851-70A60-000 |
— | ||
|
44
|
44
73855-70A00-000 SOCKET |
73855-70A00-000 |
US $10.64 |
||
|
45
|
45
73856-82000-000 BULB,HEATER CONTROL |
73856-82000-000 |
US $8.32 |
||
|
46
|
46
73857-70A00-000 CAP |
73857-70A00-000 |
US $1.77 |
||
|
47
|
47
95571-85501-000
SWITCH,AIR CON
W/AIR CON |
95571-85501-000 |
— | ||
|
48
|
48
89810-70A13-5PK ASHTRAY,FRTYPE 8 |
89810-70A13-5PK |
from US $79.05 |
||
|
48
|
48
89810-70A13-T01
ASHTRAY,FR
TYPE 9 |
89810-70A13-T01 |
— | ||
| replacement | |||||
|
48
|
48
89810-70A13-P4Z Ashtray,frTYPE 9 |
89810-70A13-P4Z |
US $44.16 |
||
|
49
|
49
09148-05004-000 NUT |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
49
|
49
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
50
|
50
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
50
|
50
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.61 |
||
|
51
|
51
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
51
|
51
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
52
|
52
09409-07308-5PK CLIP(BLACK)TYPE 8 |
09409-07308-5PK |
from US $0.86 |
||
|
52
|
52
09409-07308-T01 CLIP(GRAY)TYPE 9 |
09409-07308-T01 |
US $1.76 |
||
|
53
|
53
09404-06434-000
CLAMP(L:80 T:1.0)
W/HEATER |
09404-06434-000 |
— | ||
| replacement | |||||
|
53
|
53
09404-06036-000 Clamp(L:80)W/HEATER |
09404-06036-000 |
US $1.82 |
||
|
54
|
54
03541-05163-000
Screw
W/HEATER |
03541-05163-000 |
— | ||
| replacement | |||||
|
54
|
54
03541-0516A-000 SCREWW/HEATER |
03541-0516A-000 |
from US $0.63 |
||
|
55
|
55
75958-77E00-000 PROTECTOR,NO.4L:200->40 |
75958-77E00-000 |
US $5.96 |
||
|
56
|
56
73844-70A01-000 BOX,CONSOLE PANEL |
73844-70A01-000 |
US $25.60 |
||
