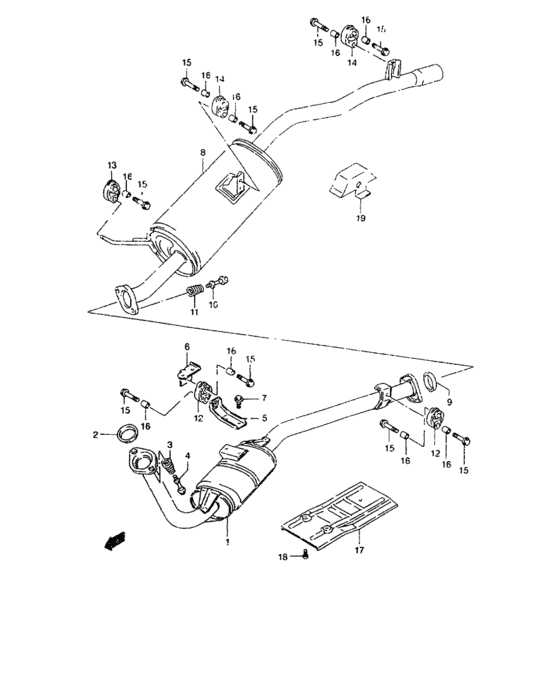

Muffler (W/CARBURETOR) Diagram Suzuki SAMURAI
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-83003-000
Pipe, exhaust center
|
14150-83003-000 |
— | ||
| replacement | |||||
|
1
|
1
14150-830V2-000 PIPE,EXH CENTER |
14150-830V2-000 |
US $168.54 |
||
|
2
|
2
14183-50G00-000
Ring, seal
|
14183-50G00-000 |
— | ||
| replacement | |||||
|
2
|
2
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $9.54 |
||
|
3
|
3
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
3
|
3
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $4.43 |
||
|
4
|
4
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $4.52 |
||
|
5
|
5
14284-83002-000
BRACKET,EXH CENTER PIPE NO.1
|
14284-83002-000 |
— | ||
|
6
|
6
14285-83010-000
BRACKET,EXH CENTER PIPE NO.2
|
14285-83010-000 |
— | ||
|
7
|
7
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.91 |
||
|
7
|
7
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
8
|
8
14300-80C00-000
マフラ
|
14300-80C00-000 |
— | ||
| replacement | |||||
|
8
|
8
14300-80C0V-000 MUFFLER |
14300-80C0V-000 |
US $329.36 |
||
|
9
|
9
14183-50G00-000
Ring, seal
|
14183-50G00-000 |
— | ||
| replacement | |||||
|
9
|
9
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $9.54 |
||
|
10
|
10
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
10
|
10
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $4.52 |
||
|
11
|
11
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
11
|
11
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $4.43 |
||
|
12
|
12
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
12
|
12
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $7.52 |
||
|
13
|
13
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
13
|
13
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $7.52 |
||
|
14
|
14
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
14
|
14
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.44 |
||
|
15
|
15
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
15
|
15
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.12 |
||
|
16
|
16
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
16
|
16
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
17
|
17
14231-80011-000 PANEL,HEAT PROTECTOR |
14231-80011-000 |
US $10.88 |
||
|
18
|
18
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
18
|
18
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
|
19
|
19
14287-80C00-000
ブラケット,マフラマウンチングストッパ
SJ80-120743~ |
14287-80C00-000 |
— | ||
